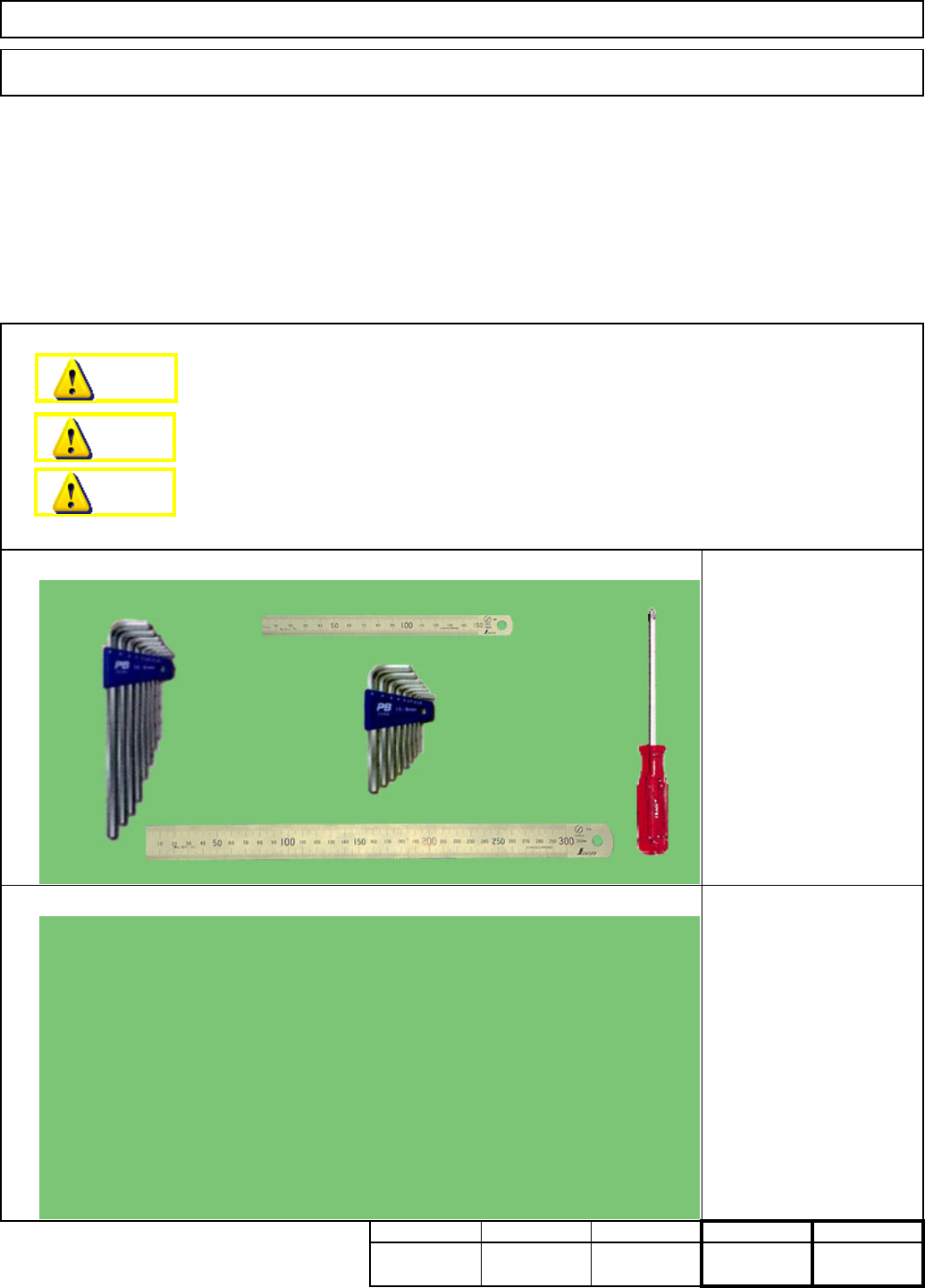

Phillips screwdriver #2
Allen key 3 mm
Allen key 4 mm
Ruler 150 mm
Ruler 300 mm
Teaching
Tools
20
Connector jig
Removal/Disassembly
15
Min.
Part Weight
Min.
7-1-8 Shuttle Head Timing Belt Replacement
This section describes the procedures for replacing the shuttle head timing belt.
Dange
r
Warning
Caution
EJM8A-E-SMA070108-A01-00
Page 7-1-8-1
Shuttle TrayTray
1
Remarks
Switch off the power
Allen key 3 mm
Phillips screwdriver #2
M4×8L 8 pcs.
M4×10L Truss 2 pcs.
Allen key 3 mm
Phillips screwdriver #2
M4×8L 3 pcs.
M4×10L 2 pcs.
M5×15L Truss 2 pcs.
2
Allen key 3 mm
M4 x 10L 1 pc.

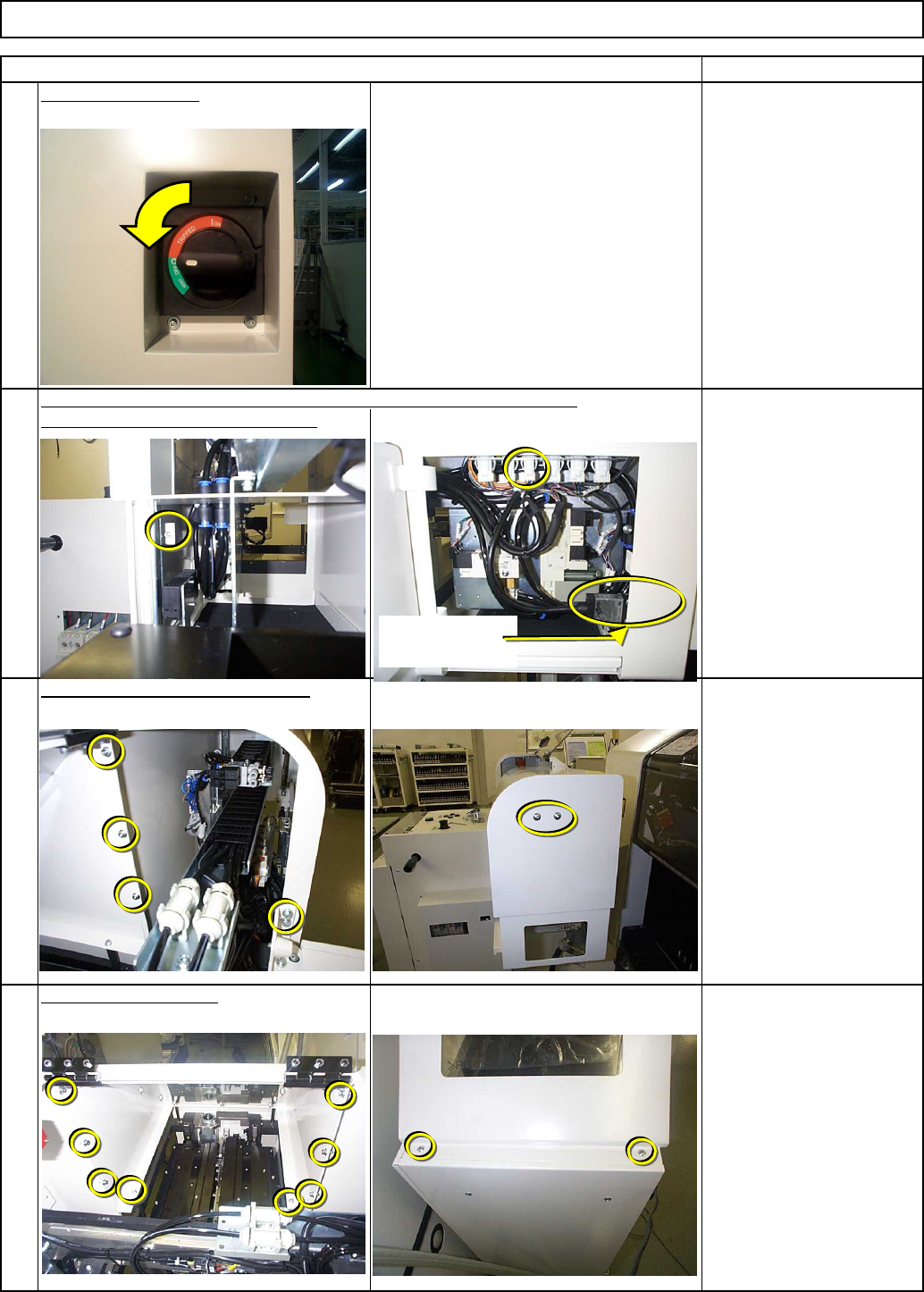

Open the cover of the delivery position. Open the maintenance door.
Remove the door switch connector.
Remove the cover holding screws.
Item
Remove the top cover.
3
4
Door switch of
Delivery position
EJM8A-E-SMA070108-A01-00
Page 7-1-8-2
Tray Shuttle Tray

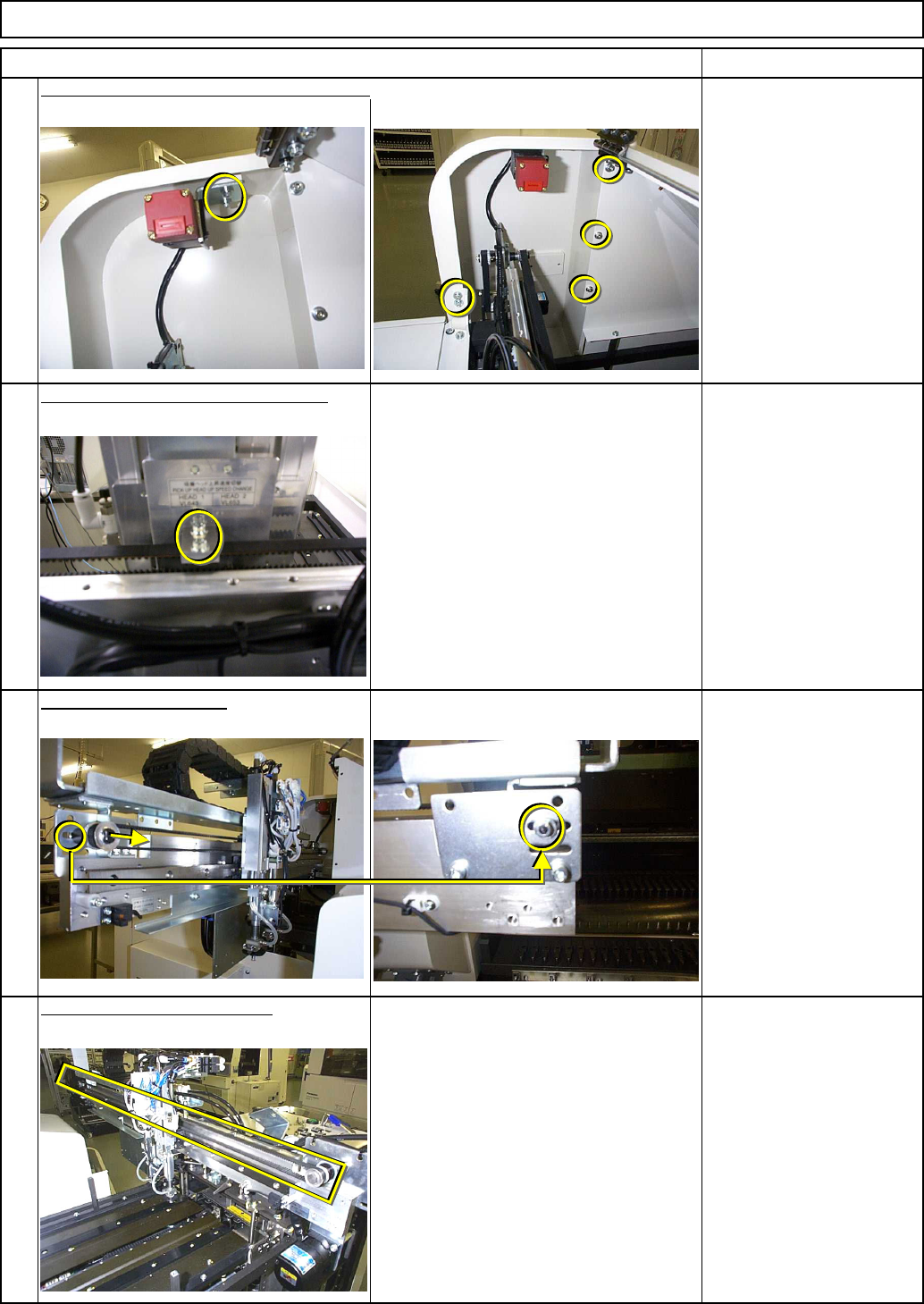

Loosen the belt tension.
8
6
7
Remove and replace the belt.
RemarksItem
5
Remove the cover from the motor section.
Remove the pickup head belt clamp.
Allen key 3 mm
M4 2 pcs.
Allen key 3 mm
M4×8L 3 pcs.
M4×10L 2 pcs.
M4×12L 2 pcs.
