Item Remarks Tray Shuttle Tray 25 carry out machine parameter teaching. See Section 7-1-2. "Shuttle Tray Pickup Position Teaching." Once the mechanical adjustment is complete, EJM8A-E-SMA070109-A01-00 Page 7-1-…
Item Remarks
Tray Shuttle Tray
21
Allen key 3 mm
M4×8L 3 pcs.
M4×10L 2 pcs.
M4×12L 2 pcs.

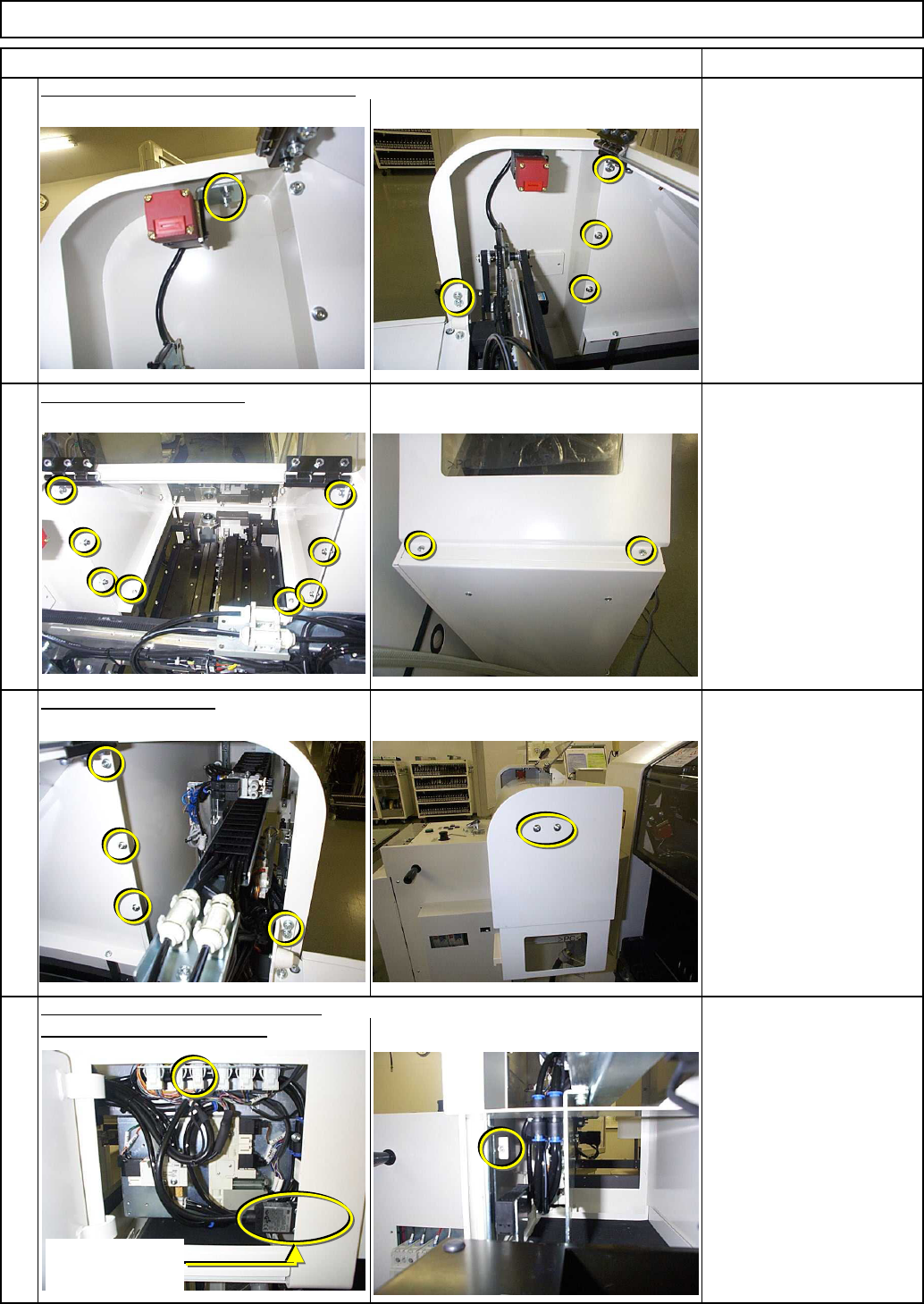

Put the cover back on the motor section.
Allen key 3 mm
Phillips screwdriver #2
M4×8L 3 pcs.
M4×10L 2 pcs.
M5×Truss 15L 2 pcs.
22
Put the top cover back on.
Allen key 3 mm
Phillips screwdriver #2
M4×8L 8 pcs.
M4×Truss 10L 2 pcs.
24
Close the maintenance door.
Allen key 3 mm
M4 x 10L 1 pc.
Connect the door switch connector.
23
Put the cover back on.
Door switch of
Delivery position
EJM8A-E-SMA070109-A01-00
Page 7-1-9-7
Item Remarks
Tray Shuttle Tray
25

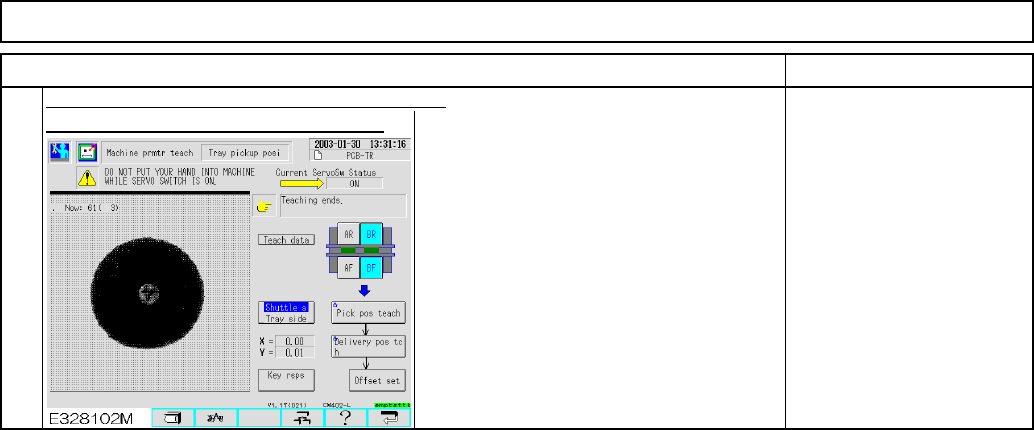

carry out machine parameter teaching.
See Section 7-1-2. "Shuttle
Tray Pickup Position
Teaching."
Once the mechanical adjustment is complete,
EJM8A-E-SMA070109-A01-00
Page 7-1-9-8
Tray Shuttle Tray
Tools
Jigs
Removal/Disassembly

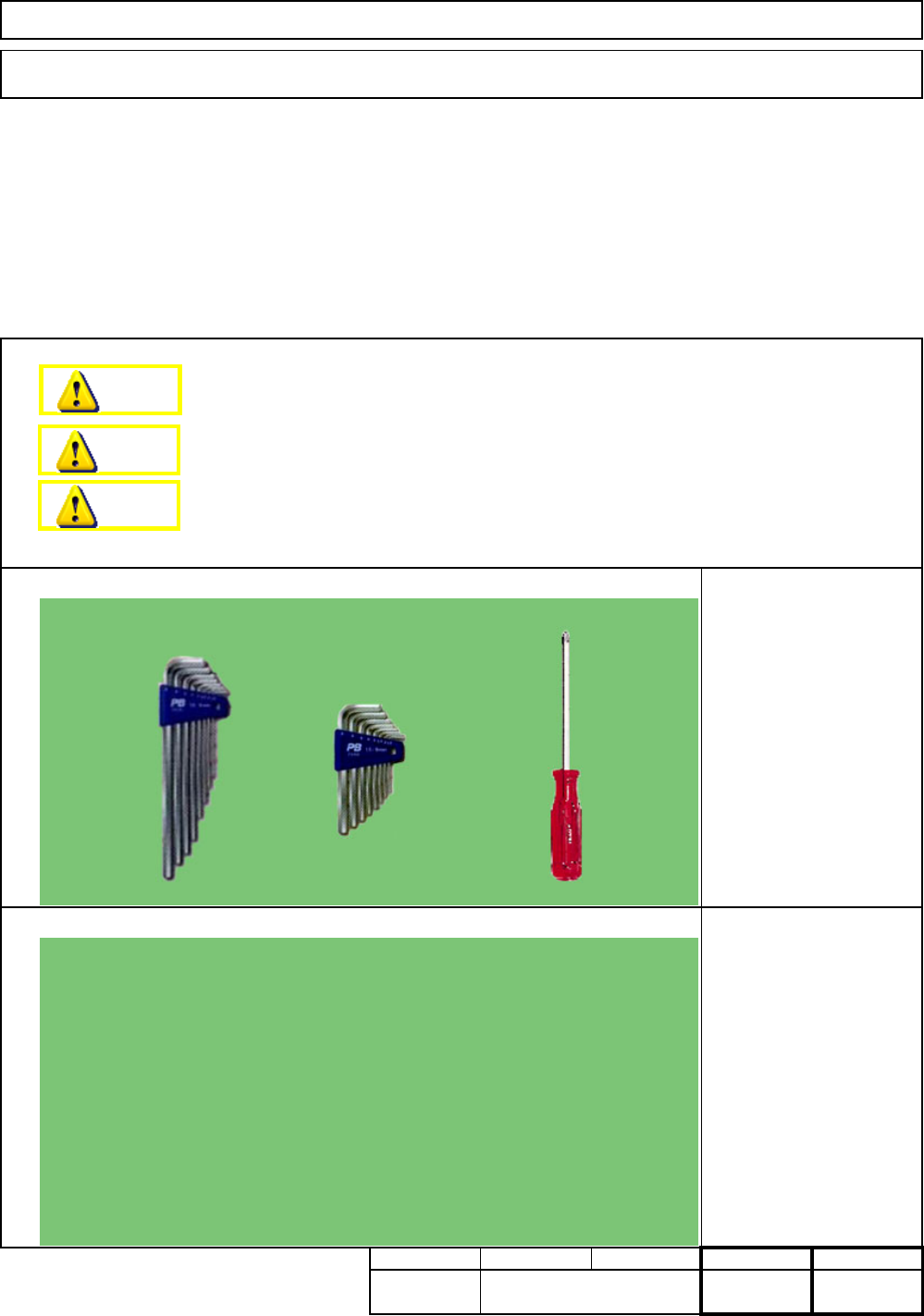

7-1-10 Extension-Axis Stroke Adjustment
This section describes the procedures for adjusting the stroke of the extension-axis.
Jig: FM-0982
Min.
Part Weight
Assembly/Adjustment
Teaching
Total
Min.
Phillips screwdriver #2
Allen key 2.5 mm
Allen key 4 mm
kgs.
0
Min. Min.
Dange
r
Warning
Caution
EJM8A-E-SMA070110-A01-00
Page 7-1-10-1
