Remove the belt clamp unit. Replace the belt. Loosen the tensions at the motor section. Allen key 3 mm Screw M4 2 pcs. After replacing the belt, tighten the belt clamp unit. Position the belt. Tighten the tensions at the…

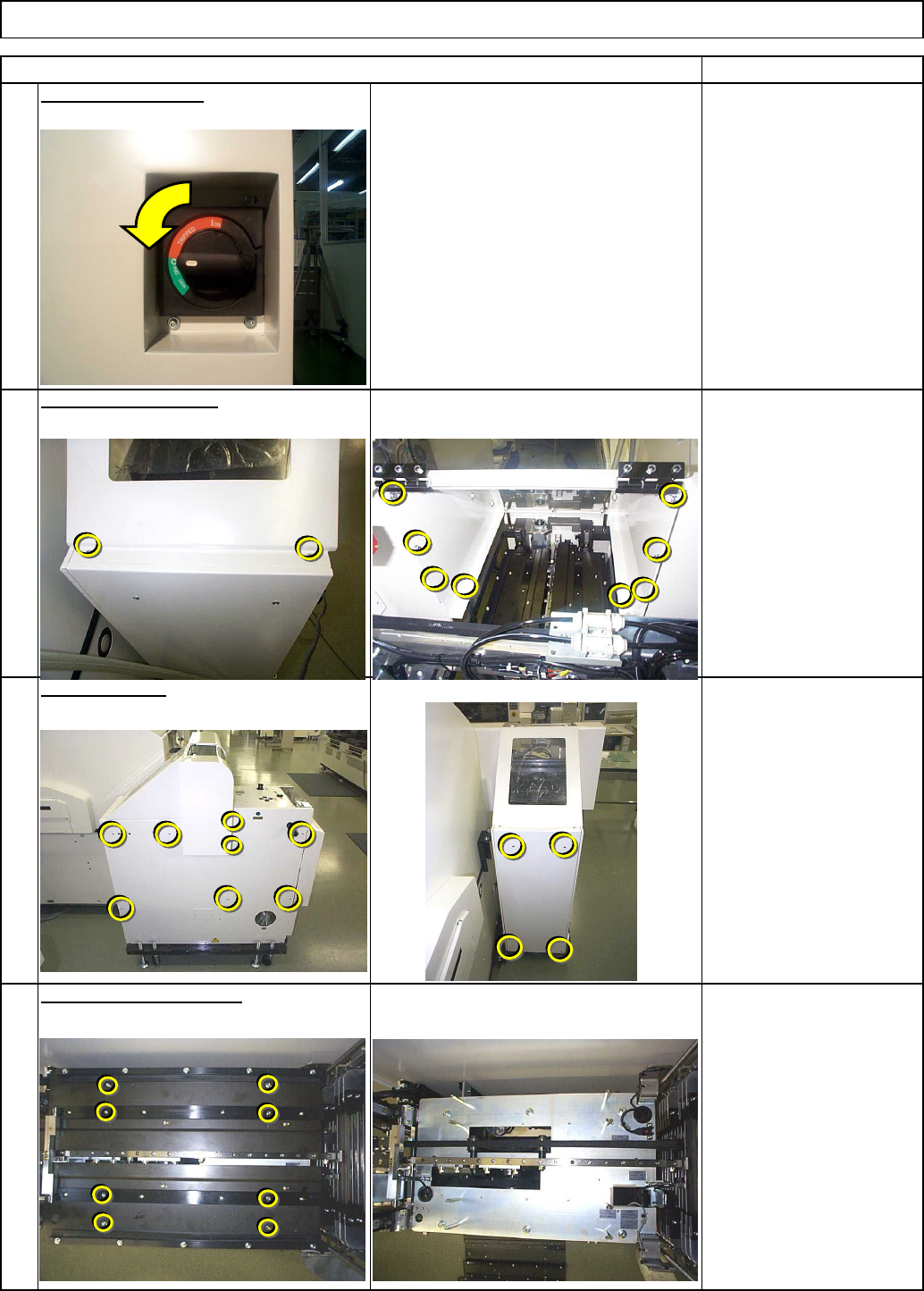

Remove the palette table.
4
3
Shuttle Tray
Phillips screwdriver #2
Screw M4 12 pcs.
Allen key 2.5 mm
M3 8 pcs.
Open the cover.
Item
Phillips screwdriver #2
Allen key 3 mm
Screw M4 2 pcs.
M4x10L 8 pcs.
Remove the top cover.
Switch off the power.
2
1
Remarks
Tray
EJM8A-E-SMA070111-A01-00
Page 7-1-11-2

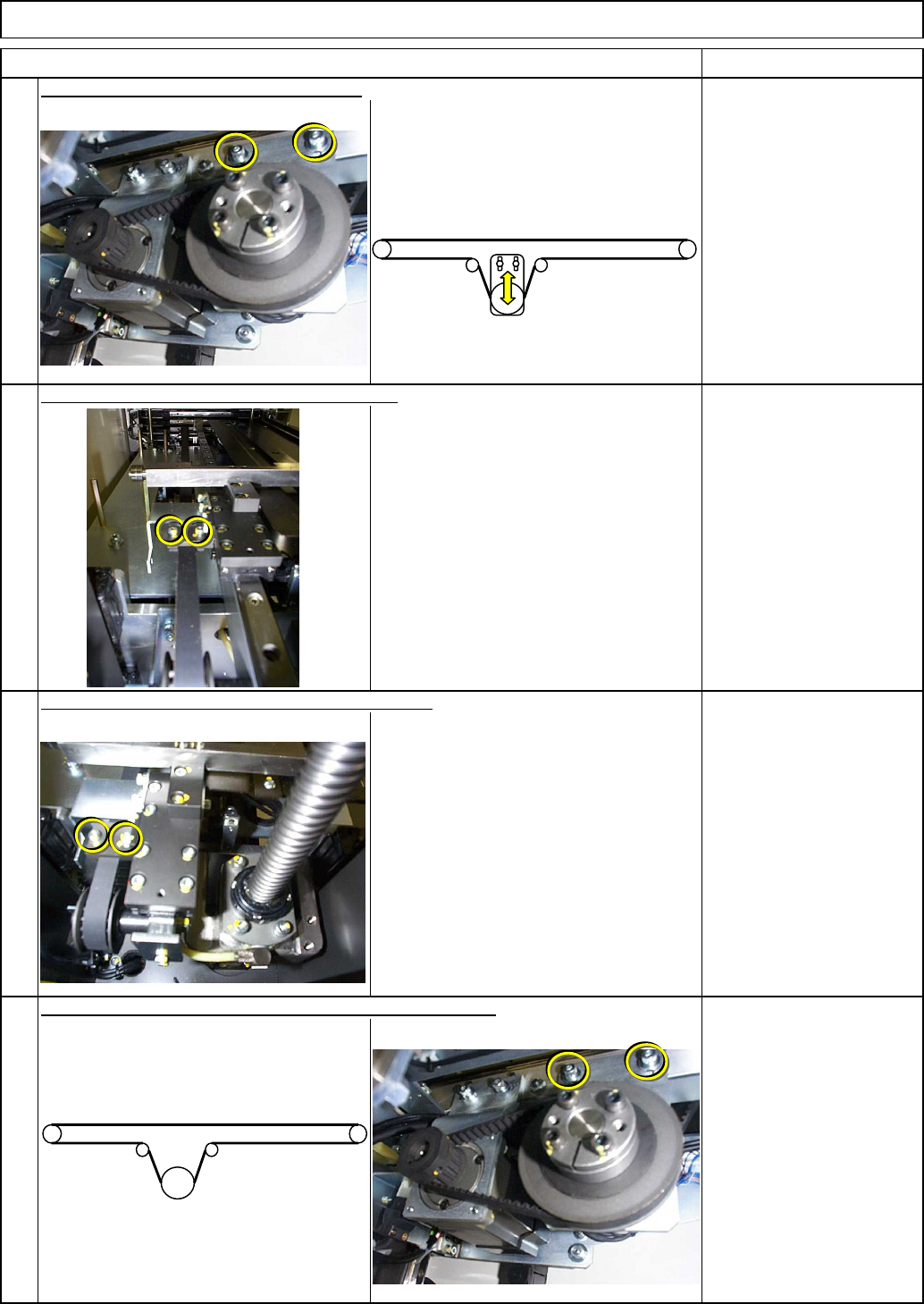

Remove the belt clamp unit. Replace the belt.
Loosen the tensions at the motor section.
Allen key 3 mm
Screw M4 2 pcs.
After replacing the belt, tighten the belt clamp unit.
Position the belt. Tighten the tensions at the motor section.
Allen key 5 mm
Screw M6 2 pcs.
Item
Allen key 3 mm
Screw M4 2 pcs.
5
Remarks
Shuttle Tray
6
7
8
Tray
EJM8A-E-SMA070111-A01-00
Page 7-1-11-3

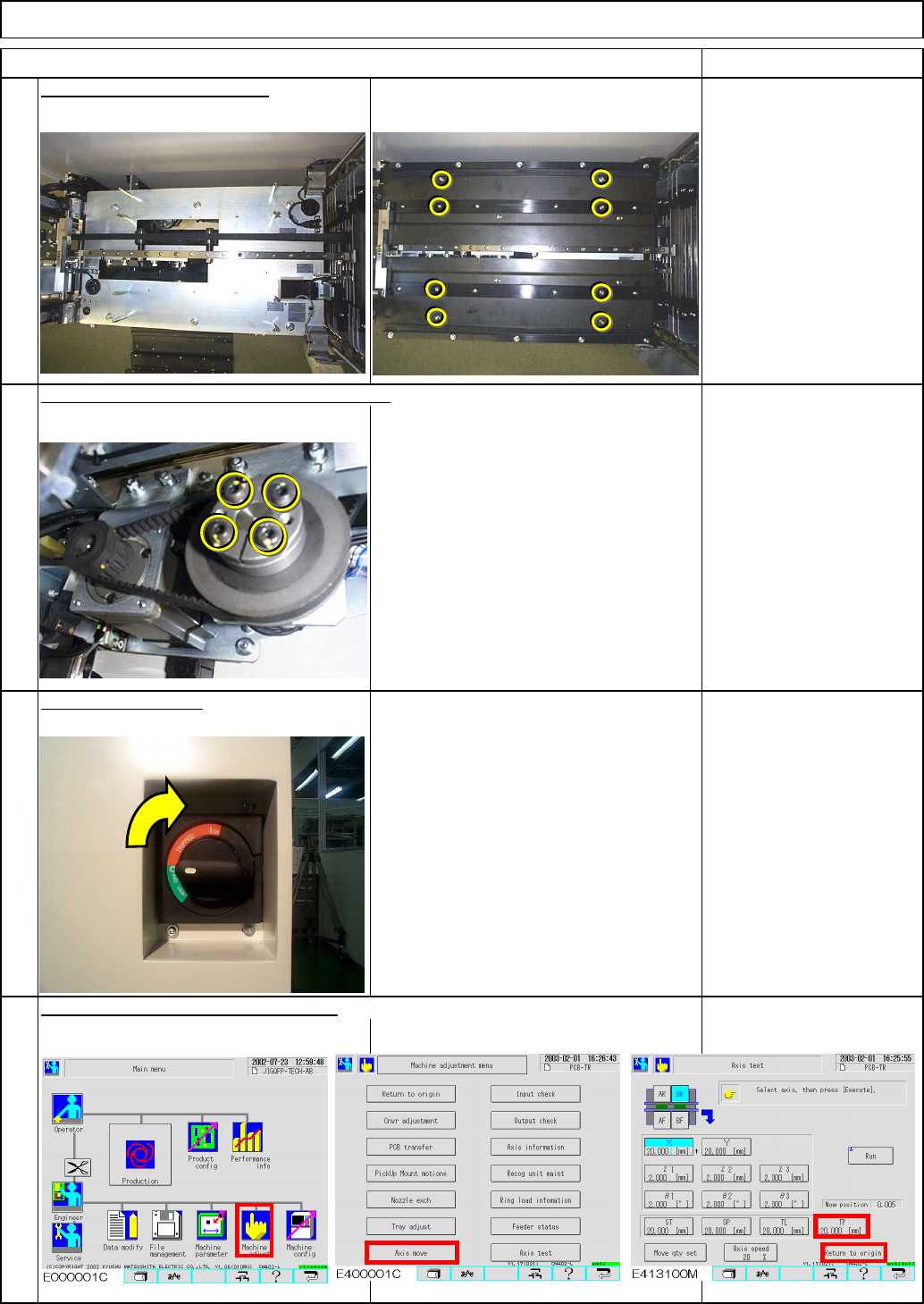

After loosening the motor locks,
hit them lightly to remove them.
Item Remarks
Allen key 2.5 mm
M3 8 pcs.
9
Put the palette table back on.
Loosen the power locks at the motor section.
10
11
12
Allen key 4 mm
Screw M5 4 pcs.
Switch on the power.
Tray Shuttle Tray
Return the extension-axis to the origin.
EJM8A-E-SMA070111-A01-00
Page 7-1-11-4
