Item 5 Tray Shuttle Tray Cut off the cable ties on the front side. Phillips screwdriver #2 Remove the four driver connectors. Remark Remove the screws. Pull the door open. Phillips screwdriver #1 Allen key 3 mm Nipper Sc…

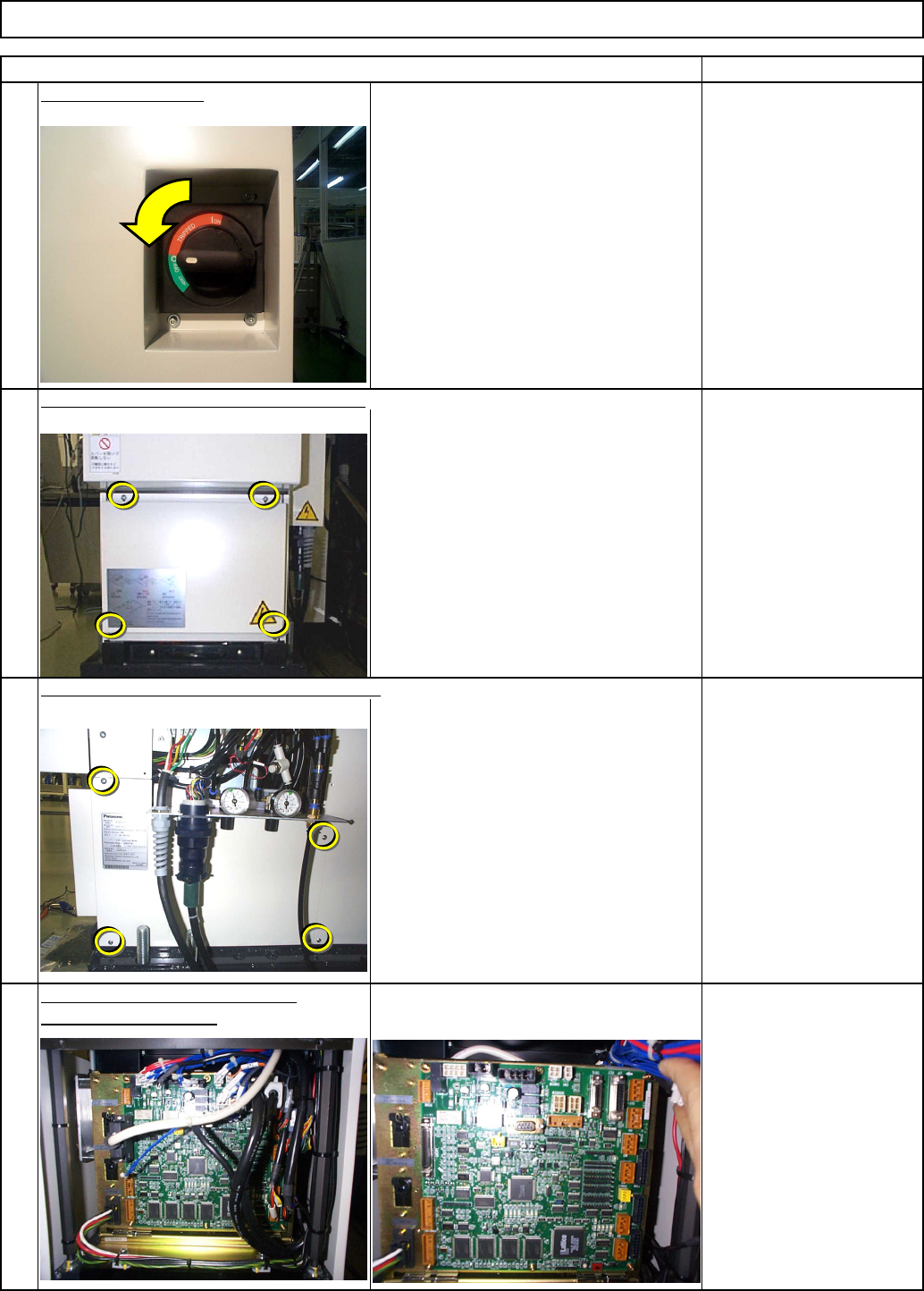

Open the right side cover of the control box.
2
1
Tray
Open the cover of the control box section.
Shuttle Tray
Remove all connectors from the
front side of the board.
Phillips screwdriver #2
Screw M4 4 pcs.
Phillips screwdriver #2
Screw M4 4 pcs.
Remark
Switch off the power.
Item
3
4
EJM8A-E-SMA070118-A01-00
Page 7-1-18-2

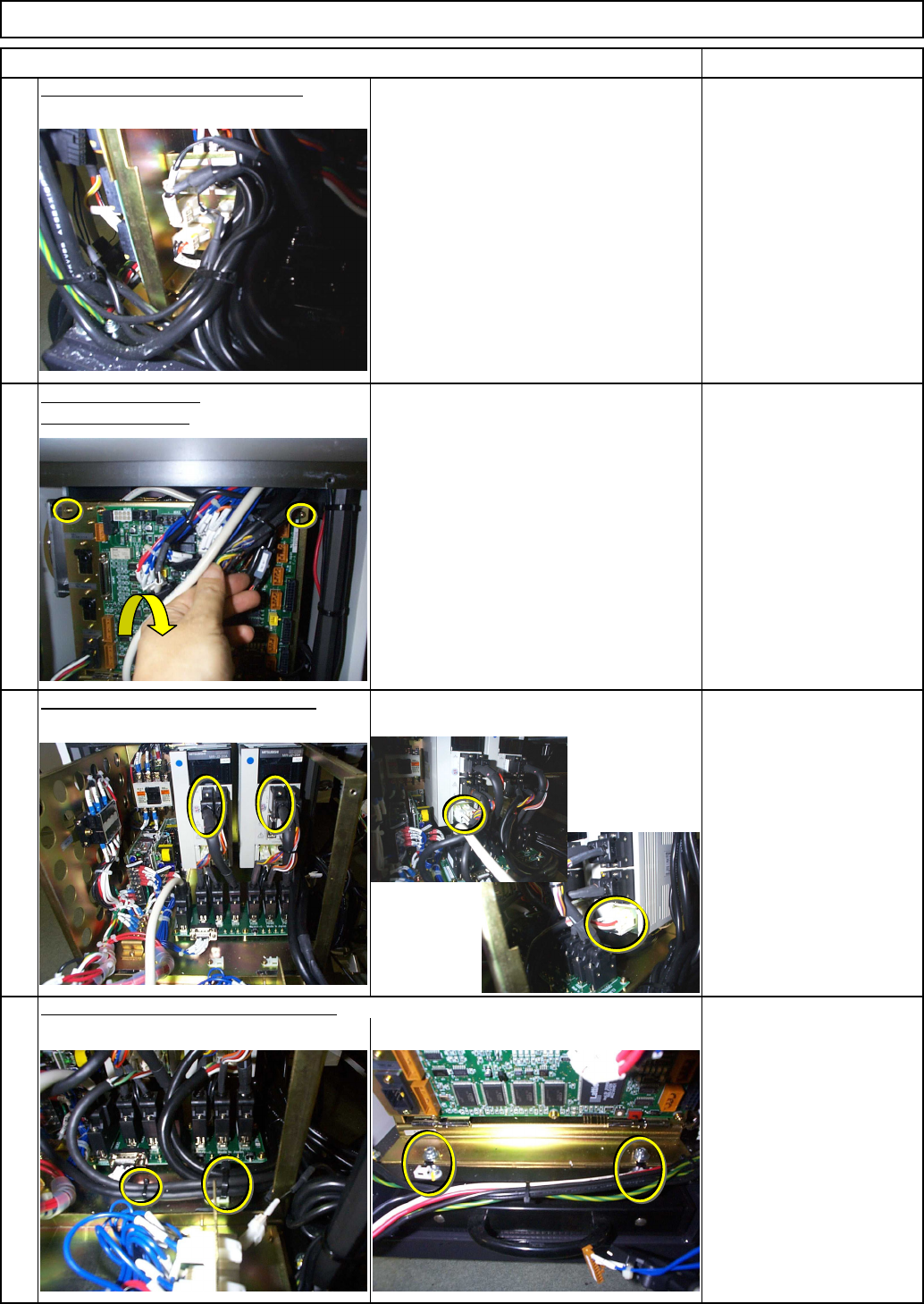

Item
5
Tray Shuttle Tray
Cut off the cable ties on the front side.
Phillips screwdriver #2
Remove the four driver connectors.
Remark
Remove the screws.
Pull the door open.
Phillips screwdriver #1
Allen key 3 mm
Nipper
Screw M4 2 pcs.
Remove all right-side connectors.
6
7
8
EJM8A-E-SMA070118-A01-00
Page 7-1-18-3
Be careful not let the cable be
caught.
Tray Shuttle Tray
Item Remark
9
Pull out the control box.
Insert the rear side of the control
box into the bracket.
Fix the control box in place.
Connect the four driver connectors.
Phillips screwdriver #1
10
11
12
EJM8A-E-SMA070118-A01-00
Page 7-1-18-4
