Be careful not let the cable be
caught.
Tray Shuttle Tray
Item Remark
9

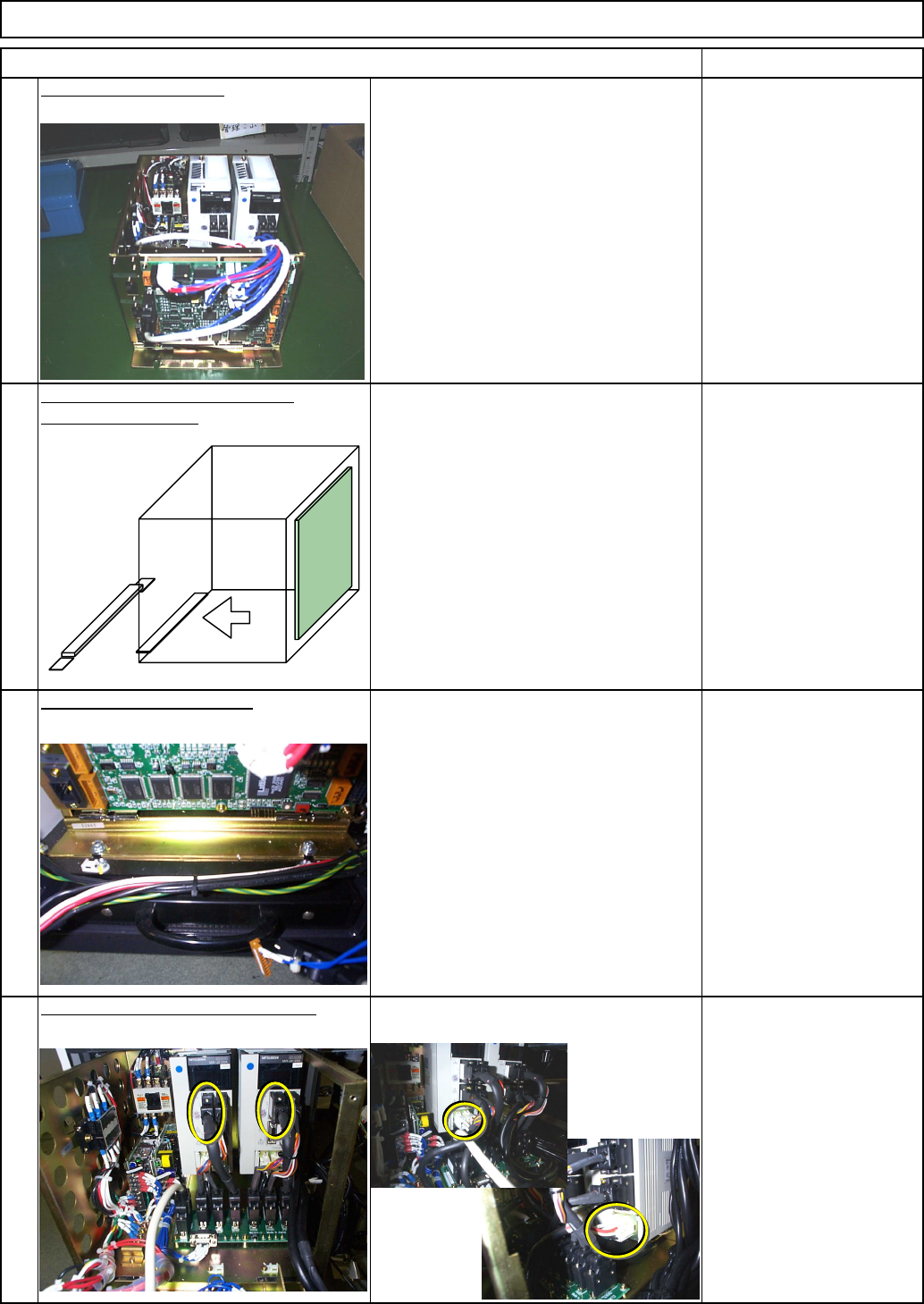

Pull out the control box.
Insert the rear side of the control
box into the bracket.
Fix the control box in place.
Connect the four driver connectors.
Phillips screwdriver #1
10
11
12
EJM8A-E-SMA070118-A01-00
Page　7-1-18-4

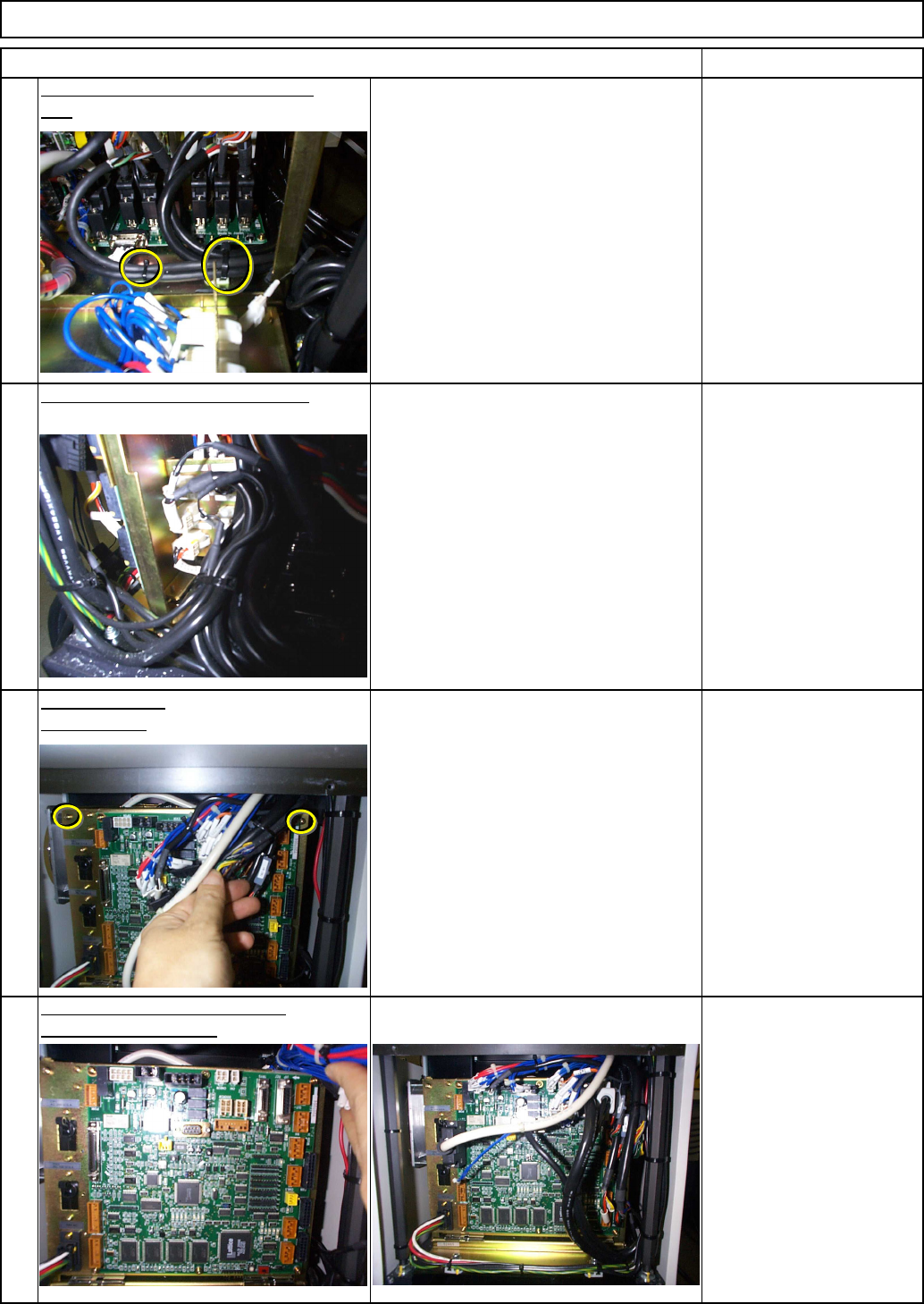

Be careful not to let the cables be
caught.
Tray Shuttle Tray
Item Remark
13
Secure the driver cables with cable
ties.
Nipper
Connect the right-side connectors.
15
Close the door.
Fix it in place.
Phillips screwdriver #2
16
Connect the connectors on the
front side of the board.
14
EJM8A-E-SMA070118-A01-00
Page　7-1-18-5
Tray Shuttle Tray
Item Remark

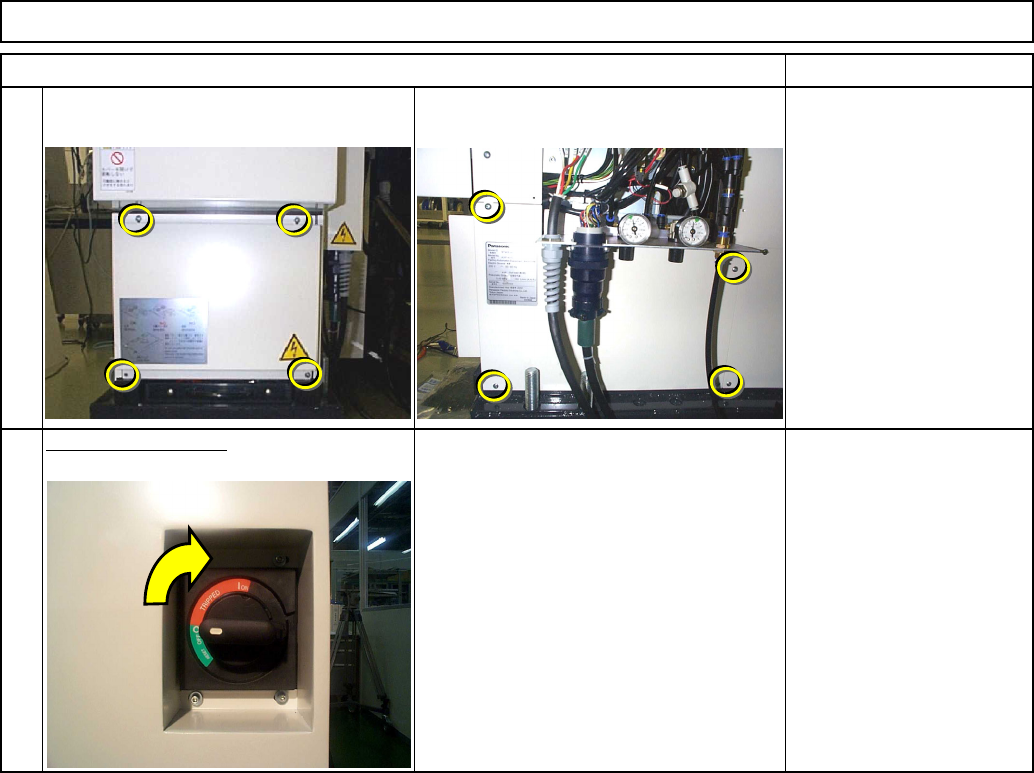

17
Phillips screwdriver #2
Screw M4 8 pcs.
18
Switch on the power.
EJM8A-E-SMA070118-A01-00
Page　7-1-18-6
