CM602 FEEDER(Mechanical 20170529) - 第127页
Ref No. Remark s R 1 Q'ty 1-B T/F;44 ;56mm;継目検出;深さ26mm;タイプA Tape Feeder; 44; 56 mm; depth 26mm; Splice sens; Type A ｲﾗｽﾄ No. Part No. 品 名 品番 数量 R 2 パーツリスト Kit N o . キット 品 番 Kit Name キット名称 N610133539AA Part Nam e 備 考…
1-B
T/F;44;56mm;継目検出;深さ26mm;タイプA
Tape Feeder; 44; 56 mm; depth 26mm; Splice sens; Type A

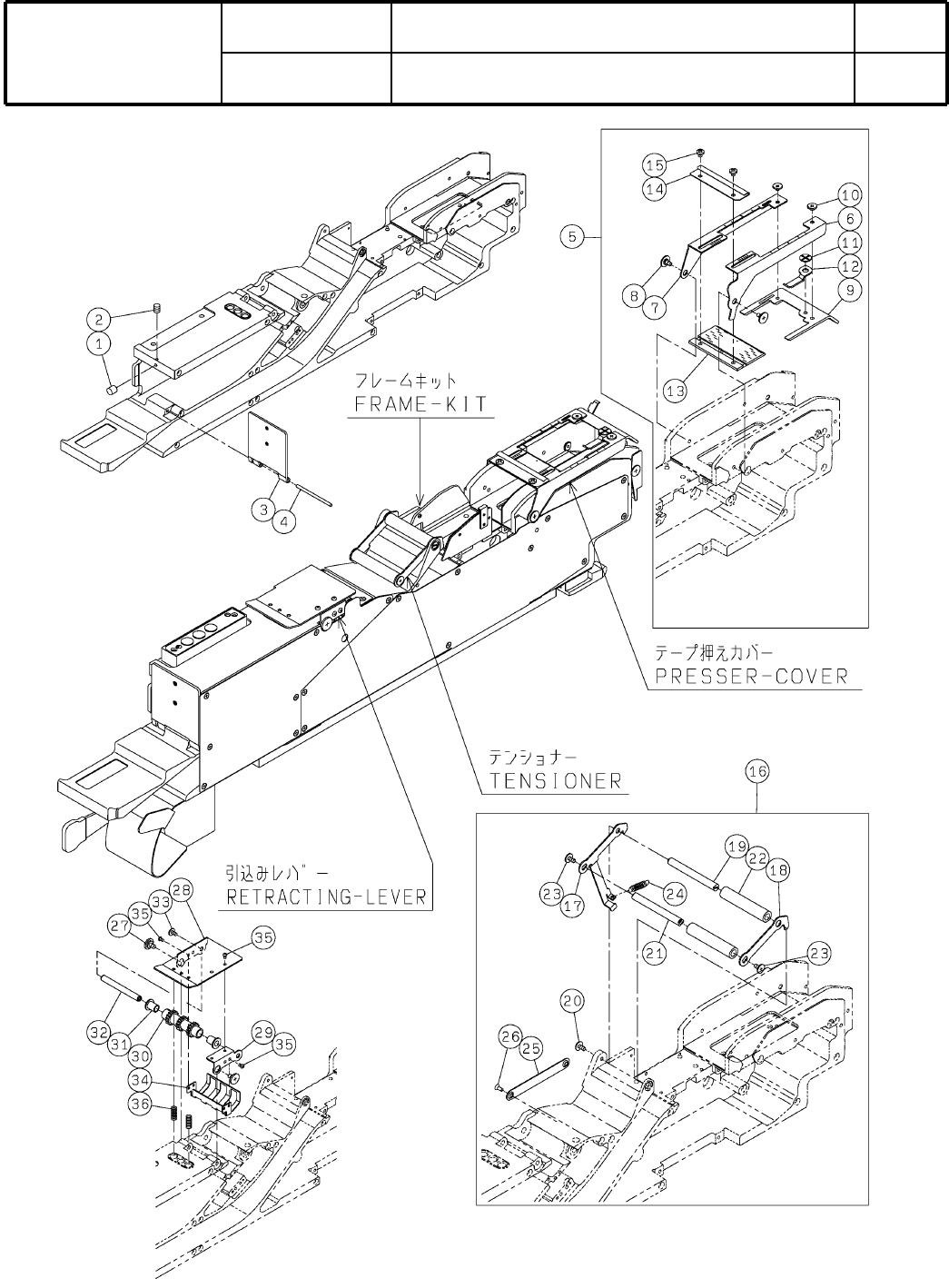

パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610133539AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M3
( KN610133539AA-14-2 )
Ref
No.
Remarks
R
1
Q'ty
1-B
T/F;44;56mm;継目検出;深さ26mm;タイプA
Tape Feeder; 44; 56 mm; depth 26mm; Splice sens; Type A
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610133539AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
CLICK
1
1 N610001291AB
CLICK
1
2 N210001891AB
PIN
2
3 N210001880AA
SPRING
1
4 KXF0DYJQA00 5544
GUIDE
1
5 N210158746AC
SCREW
2
6 XSS25+5VW
Cross recessed Countersunk head machine screw M2.5X5-A2-70
SCREW
2
7 XSB25+5FN
Cross recessed Binding head machine screw M2.5X5-4.8 E2U
SENSOR
1
8 N510037013AA PM-F24-M3
SCREW
1
9 N510002401AA SUS pan head M2X8+TB2430
WASHER
1
10 N510018477AA
Small round-plain washer 2 10H A2J (Trivalent)
MOTOR
1
11 N510046420AA LA14G-371VJ
BOLT
2
12 N510017337AA
Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent)
GEAR
1
13 N210050452AA
PIN
1
14 KXFA1L0AA00
GEAR
1
15 N210151827AA
BUSH
2
16 KXF0CWGAA00 80F-0610
PIN
1
17 KXFA1M1AA00
PIN
1
18 KXFA1KAAA00
BRACKET
1
19 N210187153AA
COMB
1
20 N210158747AB
SCREW
6
21 XSN25+6VW
Cross recessed Pan head machine screw M2.5X6-A2-70
SCREW
1
22 XSS25+5VW
Cross recessed Countersunk head machine screw M2.5X5-A2-70
OPERATING-SW
1
23 N610033141AA
SEAL
1
24 KXF0DWTLA00 NP(Drawing available KXF0DWTLA00)
SPACER
2
25 KXF08WXAA00 C-2607
SCREW
2
26 N510018959AA
Cross recessed Pan head machine screw M2.5X18-4.8 A2J (Trivalent)
TAPE-GUIDE(SENS)
1
27 N610134337AA
SCREW
2
28 XSB25+5FN
Cross recessed Binding head machine screw M2.5X5-4.8 E2U
COVER
1
29 N210158711AA
COVER
1
30 N210158712AA
COVER
1
31 N210158713AA
SCREW
22
32 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
M4
--
( KN610133539AA-14-2 )
2-A
T/F
;
44
;
56mm
;深さ
26mm
;タ
イプA
Tape Feeder; 44; 56 mm; depth26mm; Type A
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610133540AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M5
( KN610133540AA-10-1 )
