CM602 FEEDER(Mechanical 20170529) - 第26页

3-B T/F;8mmシングル;スプライシング検出;タイプA Tape Feeder; 8 mm single; Splice sensing; Ty pe A パーツレイアウト Kit No. キット品 番 Kit N am e キット名称 N610003476AA ｾｸｼｮﾝN o. PARTS LAYOUT Section No. - - M15 ( KN610003476AA-44-2 )

100%1 / 170
Ref
No.
Remarks
R
1
Q'ty
3-A
T/F;8mmシングル;スプライシング検出;タイプA
Tape Feeder; 8 mm single; Splice sensing; Type A
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610003476AA
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
PRESSER-COVER
1
1 N610092834AD
TENSIONER
1
3 N610007640AB
LEVER
1
4 N610025484AB
Fulcrum spring
1
6 N610071897AA
COVER
2
7 N210123197AA
MAGNET
2
8 KXF0DYAZA00 NEO33
SCREW
2
9 XXE25C3FP
Hexagon socket set screw Flat point M2.5X3-45H SCHP
COVER
1
10 N210103441AC
SPRING
1
11 N210017141AA
PIN
1
12 N210071635AA
SPRING
1
13 N210114131AA
GEAR
1
14 MTKP003990AA
PIN
1
15 KXFA1KPAA00
PIN
1
16 KXFA1KQAA00
COMB
1
18 N210116209AA
SCREW
1
19 XSS3+6VW
Cross recessed Countersunk head machine screw M3X6-A2-70
SCREW
2
20 N510002400AA SUSB Taptite pan head 2.6 8
PIN
1
21 KXFA1KFAA00
ROLLER
1
22 KXFA1KHBA00
SPRING
1
23 KXF0DK4AB00 (DA KXF0DK4AB00)
LEVER
1
25 N210120308AA
WASHER
1
27 KXF0B88AA00 Thick washer for M4(SUS)
BOLT
1
28 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
PIN
1
29 N210071634AA
PLATE
1
30 N210124272AA
SCREW
2
31 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
BOLT
1
32 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
WASHER
1
33 N510018494AA
Round finish plain washer 3 10H A2J (Trivalent)

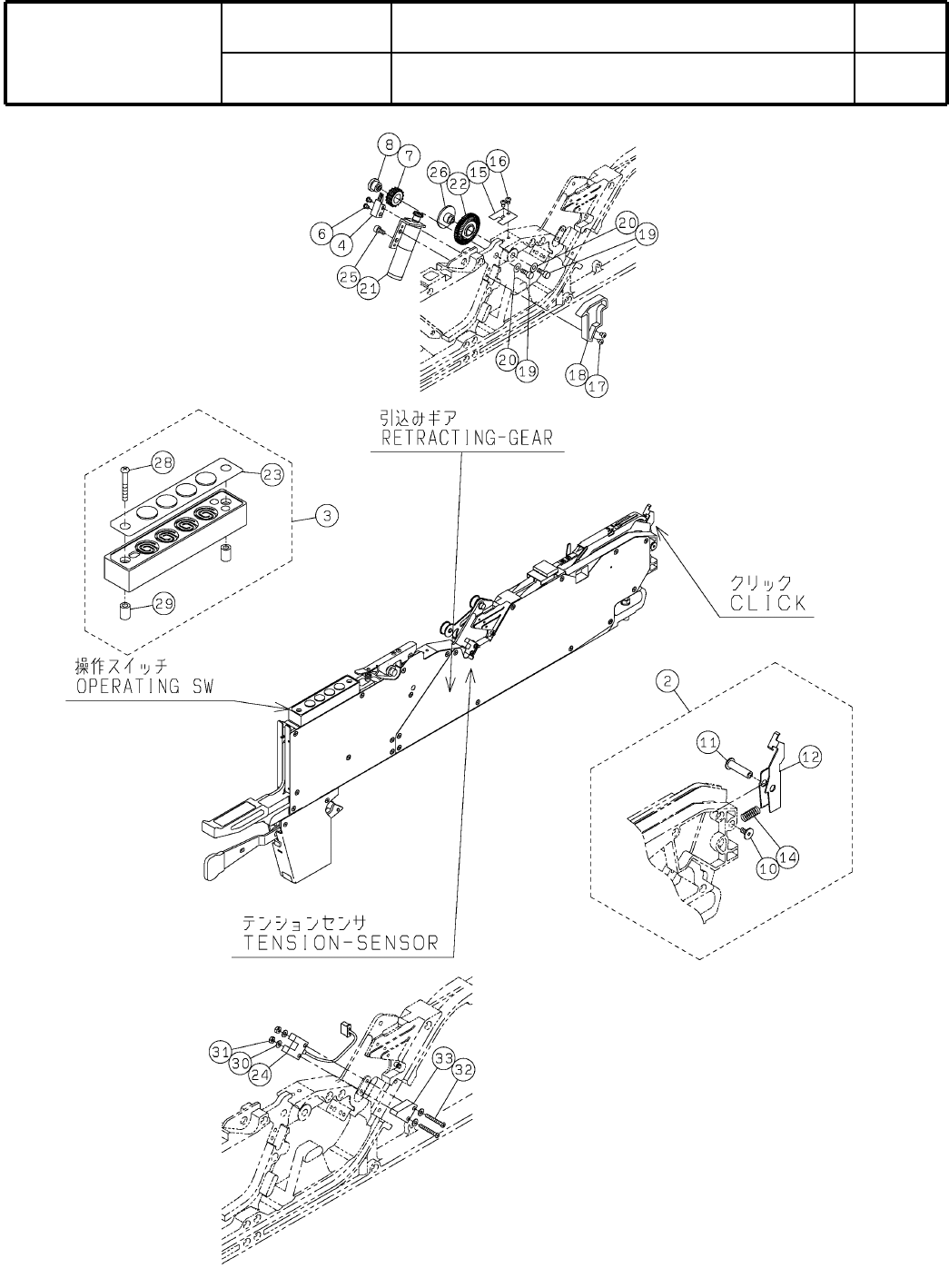

M14
--
( KN610003476AA-44-1 )
3-B
T/F;8mmシングル;スプライシング検出;タイプA
Tape Feeder; 8 mm single; Splice sensing; Type A
パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
N610003476AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M15
( KN610003476AA-44-2 )
Ref
No.
Remarks
R
1
Q'ty
3-B
T/F;8mmシングル;スプライシング検出;タイプA
Tape Feeder; 8 mm single; Splice sensing; Type A
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610003476AA
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
CLICK
1
2 N610007636AB
OPERATING-SW
1
3 N610033140AA
COMB
1
4 N210116210AA
SCREW
2
6 XSN25+3VW
Cross recessed Pan head machine screw M2.5X3-A2-70
GEAR
1
7 MTKP003990AA
PIN
1
8 KXFA1PS9A00
PIN
1
10 KXFA1KAAA00
PIN
1
11 KXFA1KBAA00
CLICK
1
12 N210109639AB
SPRING
1
14 KXF0DRSAA00 (DA 0DRSA)
PLATE
1
15 KXFA1PZHB01
SCREW
2
16 XSN25+4VW
Cross recessed Pan head machine screw M2.5X4-A2-70
SCREW
2
17 XSN25+3VW
Cross recessed Pan head machine screw M2.5X3-A2-70
BLOCK
1
18 N210014414AA
BOLT
2
19 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
WASHER
2
20 N510018494AA
Round finish plain washer 3 10H A2J (Trivalent)
RETRACTING-MOTOR
1
21 N510046420AA LA14G-371VJ
GEAR
1
22 N210050452AA
SEAL
1
23 KXF0DWTKA00 (DA KXF0DWTKA00)
SENSOR
1
24 N510037012AA PM-U24-M4
BOLT
2
25 N510017337AA
Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent)
PIN
1
26 KXFA1KLAA00
SCREW
2
28 N510018959AA
Cross recessed Pan head machine screw M2.5X18-4.8 A2J (Trivalent)
SPACER
2
29 KXF08WXAA00 C-2607
WASHER
4
30 N510018477AA
Small round-plain washer 2 10H A2J (Trivalent)
NUT
2
31 XNG2BVW Hexagon nut Type-2 Best class M2-6H-A2-70
SCREW
2
32 N510002402AA SUS M2x16+TB2430
BLOCK
1
33 N210014411AA
M16
--
