MPAV2B Parts list(Electrical20090625) - 第24页
主操作盤(P 932 L-F02 -B2) MAIN CONTRO L PANEL 3 FN1P932LF02B2_B E5

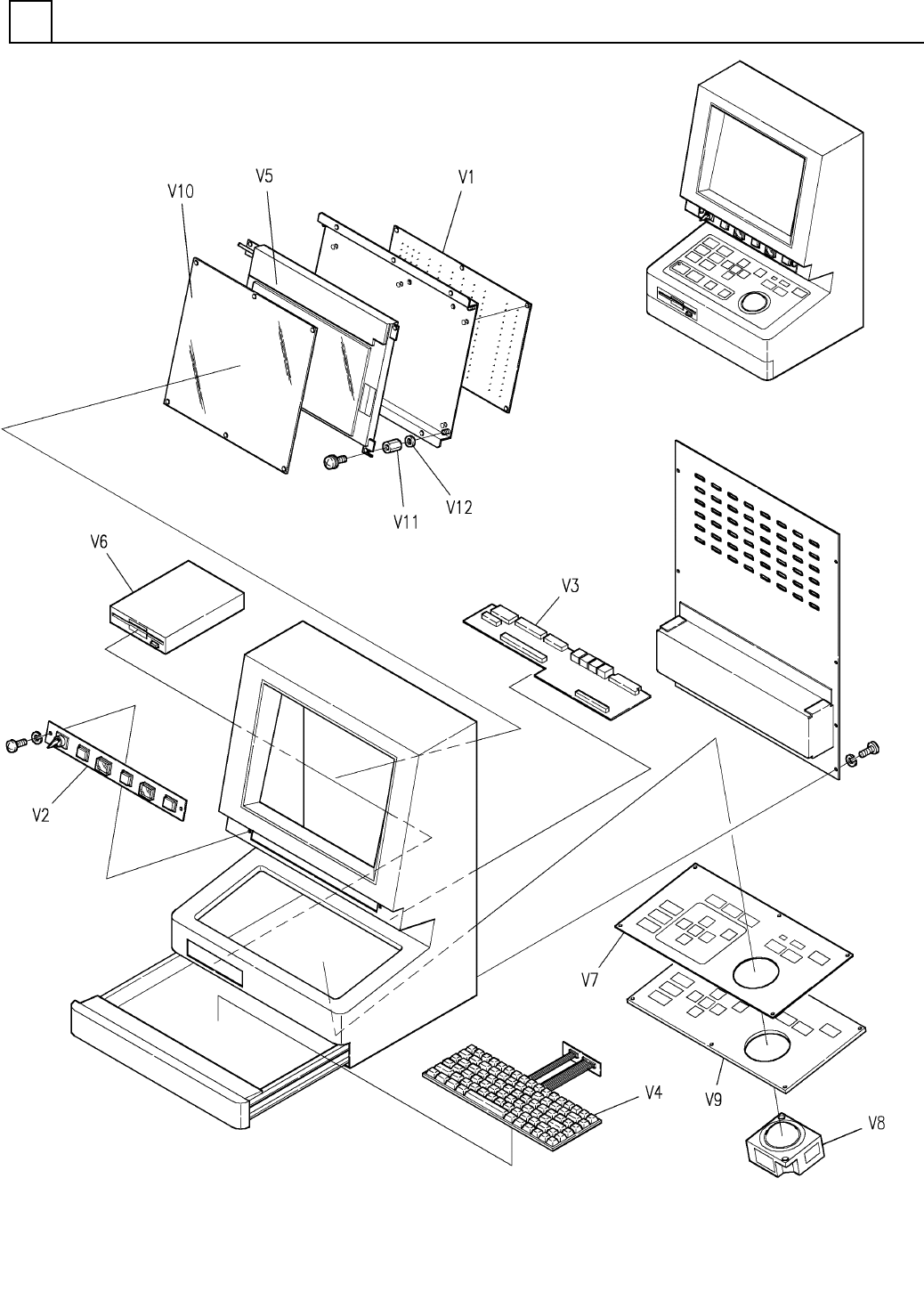

ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
2
NEW MMIｺﾝﾄﾛｰﾗ(P121-03-B)
CONTROLLER(MMI)
部 品 名 品 番 個数
備 考
1 N1P12103B
CONTROLLER(MMI) ｺﾝﾄﾛｰﾗ
(MMI)
P121-03-B
V 1
1
3912102010AE
BOARD ｷﾊﾞﾝ FA-121101
V 2
1
3912102030AA
BOARD ﾎﾞｰﾄﾞ FA-121102A
V 3 1 3912102050AB
BOARD ｷﾊﾞ
ﾝ(VGA/FDD ﾍﾝｶﾝ)
FA-121104
V 4 1 3912104070AA
BOARD ｷﾊﾞﾝ(2.5
HDDﾍﾝｶﾝ)
FA-121105A
V 5
1
391210210701
FAN WITH MOTOR ﾌｧﾝﾓｰﾀ
V 6
1
N209PC55-187
BOARD(CPU) ｷﾊﾞﾝ(CPU) PC-551G5-M(233/128)
V 7 1 3912102310
BOARD ｷﾊ
ﾞﾝ
PCBP-PCA6108
V 8 2 N902DARA-180
HDD HDD DARA-206000
V 9
1
N902CDVAB48T
CD-ROM CD-ROM CDV-AB48T
V10 1 391210244101
PLATE ﾌﾟﾚｰﾄ
V11 1 3912104460AD
BRACKET UNIT ﾌﾞ
ﾗｹｯﾄﾕﾆｯﾄ
V12
1
N244PCSA-043
POWER SUPPLY ﾃﾞﾝｹﾞﾝ PCSA-250-H101
E4
FN1P12103B_B
主操作盤(P932L-F02-B2)
MAIN CONTROL PANEL
3
FN1P932LF02B2_B
E5
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
3
主操作盤(P932L-F02-B2)
MAIN CONTROL PANEL
部 品 名 品 番 個数
備 考
1 N1P932LF02B2
MAIN CONTROL PANEL ｼｭｿｳｻﾊ
ﾞﾝ
P932L-F02-B2
V 1
1
3993217020AB
BOARD(VGA) ｷﾊﾞﾝ(VGA) SA932-001D-01
V 2
1
3993204300AB
PANEL ﾊﾟﾈﾙ SA932-003B-01
V 3 1 3993204200AF
BOARD(CONNECTOR) ｷﾊ
ﾞﾝ(ｺﾈｸﾀ)
SA932-002C-01
V 4 1 N209N860-078
KEYBOARD ｷｰﾎ
ﾞｰﾄﾞ
N860-7316-T001
V 5
1
3993202600AA
LIQUID CRYSTAL DISPLAY ｴｷｼｮｳ EDTCB32QDF
V 6
1
3993217700AB
FLOPPY DISK DRIVE FDD FD-235HG-A466
V 7 1 399320238601
KEY SHEET ｷｰｼｰﾄ M39932-02-386-01
V 8 1 N902TA47-119
TRACK BALL UNIT ﾄﾗｯｸﾎﾞ
ｰﾙﾕﾆｯﾄ
TA4714N2204
V 9
1
N209N860-146
KEYBOARD ｷｰﾎﾞｰﾄﾞ N860-3906-T021
V10 1 399320233602
ACRYLIC PLATE ｱｸﾘﾙﾌﾟﾚｰﾄ
V11 4 N986SJA314
SPACER ｽﾍ
ﾟｰｻ
SJA-314
V12
4
XWG3
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ 3,STEEL,Z.C.T.2
E6
FN1P932LF02B2_B
