MPAV2B Parts list(Electrical20090625) - 第26页
後部操作盤( P932L- F041-B2) REAR CONTRO L PANEL 4 FN1P932LF41B2_B E7
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
3
主操作盤(P932L-F02-B2)
MAIN CONTROL PANEL
部 品 名 品 番 個数
備 考
1 N1P932LF02B2
MAIN CONTROL PANEL ｼｭｿｳｻﾊ
ﾞﾝ
P932L-F02-B2
V 1
1
3993217020AB
BOARD(VGA) ｷﾊﾞﾝ(VGA) SA932-001D-01
V 2
1
3993204300AB
PANEL ﾊﾟﾈﾙ SA932-003B-01
V 3 1 3993204200AF
BOARD(CONNECTOR) ｷﾊ
ﾞﾝ(ｺﾈｸﾀ)
SA932-002C-01
V 4 1 N209N860-078
KEYBOARD ｷｰﾎ
ﾞｰﾄﾞ
N860-7316-T001
V 5
1
3993202600AA
LIQUID CRYSTAL DISPLAY ｴｷｼｮｳ EDTCB32QDF
V 6
1
3993217700AB
FLOPPY DISK DRIVE FDD FD-235HG-A466
V 7 1 399320238601
KEY SHEET ｷｰｼｰﾄ M39932-02-386-01
V 8 1 N902TA47-119
TRACK BALL UNIT ﾄﾗｯｸﾎﾞ
ｰﾙﾕﾆｯﾄ
TA4714N2204
V 9
1
N209N860-146
KEYBOARD ｷｰﾎﾞｰﾄﾞ N860-3906-T021
V10 1 399320233602
ACRYLIC PLATE ｱｸﾘﾙﾌﾟﾚｰﾄ
V11 4 N986SJA314
SPACER ｽﾍ
ﾟｰｻ
SJA-314
V12
4
XWG3
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ 3,STEEL,Z.C.T.2
E6
FN1P932LF02B2_B
後部操作盤(P932L-F041-B2)
REAR CONTROL PANEL
4
FN1P932LF41B2_B
E7
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
4

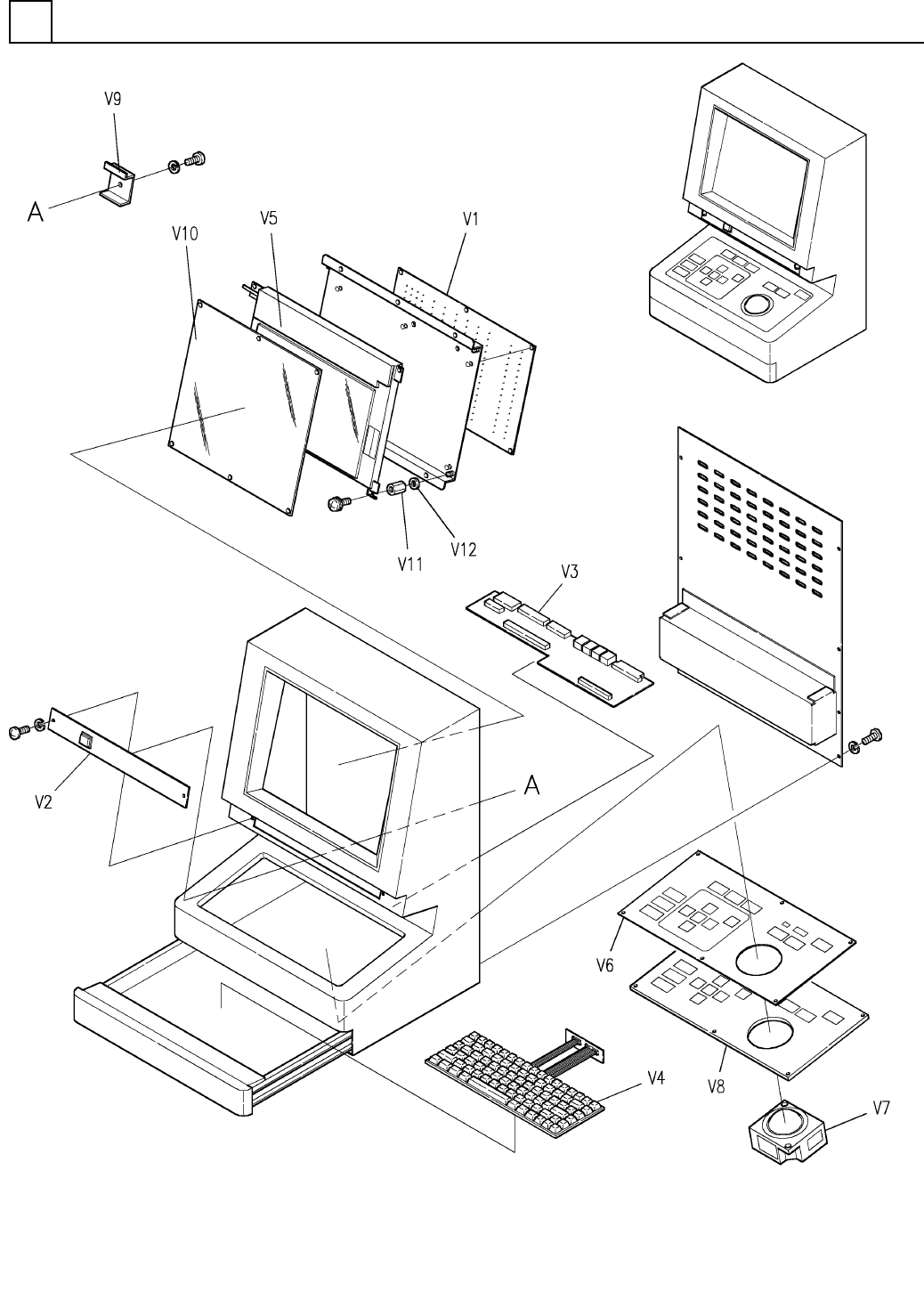

後部操作盤(P932L-F041-B2)
REAR CONTROL PANEL
部 品 名 品 番 個数
備 考
1 N1P932LF41B2
MAIN CONTROL PANEL ｿｳｻﾊ
ﾞﾝ(ｺｳﾌﾞ)
P932L-F041-B2
V 1
1
3993243020AB
BOARD(VGA) ｷﾊﾞﾝ(VGA) SA932-001D-01
V 2
1
3993204350AB
PANEL ﾊﾟﾈﾙ SA932-003B-02
V 3 1 3993204250AF
BOARD(CONNECTOR) ｷﾊ
ﾞﾝ(ｺﾈｸﾀ)
SA932-002C-02
V 4 1 N209N860-078
KEYBOARD ｷｰﾎ
ﾞｰﾄﾞ
N860-7316-T001
V 5
1
3993202600AA
LIQUID CRYSTAL DISPLAY ｴｷｼｮｳ EDTCB32QDF
V 6
1
399320238601
KEY SHEET ｷｰｼｰﾄ M39932-02-386-01
V 7 1 N902TA47-119
TRACK BALL UNIT ﾄﾗｯｸﾎ
ﾞｰﾙﾕﾆｯﾄ
TA4714N2204
V 8 1 N209N860-146
KEYBOARD ｷｰﾎ
ﾞｰﾄﾞ
N860-3906-T021
V 9
1
3993202387
BRACKET ｺﾃｲｲﾀ M39932-02-387
V10 1 399320233602
ACRYLIC PLATE ｱｸﾘﾙﾌﾟﾚｰﾄ
V11 4 N986SJA314
SPACER ｽﾍ
ﾟｰｻ
SJA-314
V12
4
XWG3
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ 3,STEEL,Z.C.T.2
E8
FN1P932LF41B2_B
