4 Operation
4.1 Settings in SIPLACE Pro 10.1 and Higher
44 User Manual SIPLACE Glue Feeder 05/2020
► Click on the Feeders – tree view icon.(1)
The tree view for the feeders will be shown.(2)
► Select the Glue Feeder from the tree view and drag&drop this to the selected location.
NOTICE
Blocked tracks on either side
The number of location tracks on either side of the Glue Feeder which are blocked from use
will vary according to the machine used. Try to position the Glue Feeder as near to the cen-
ter of the location as possible.
4 Operation
4.2 Individual Functions in Stations Software 706.1 and Higher
User Manual SIPLACE Glue Feeder 05/2020 45
4.2 Individual Functions in Stations Software 706.1 and
Higher
4.2.1 Measuring Dispenser Nozzle Position
Each time when a Glue Feeder is set up at a location, the station software will automatically report
that the Glue Feeder needs to be first be calibrated.

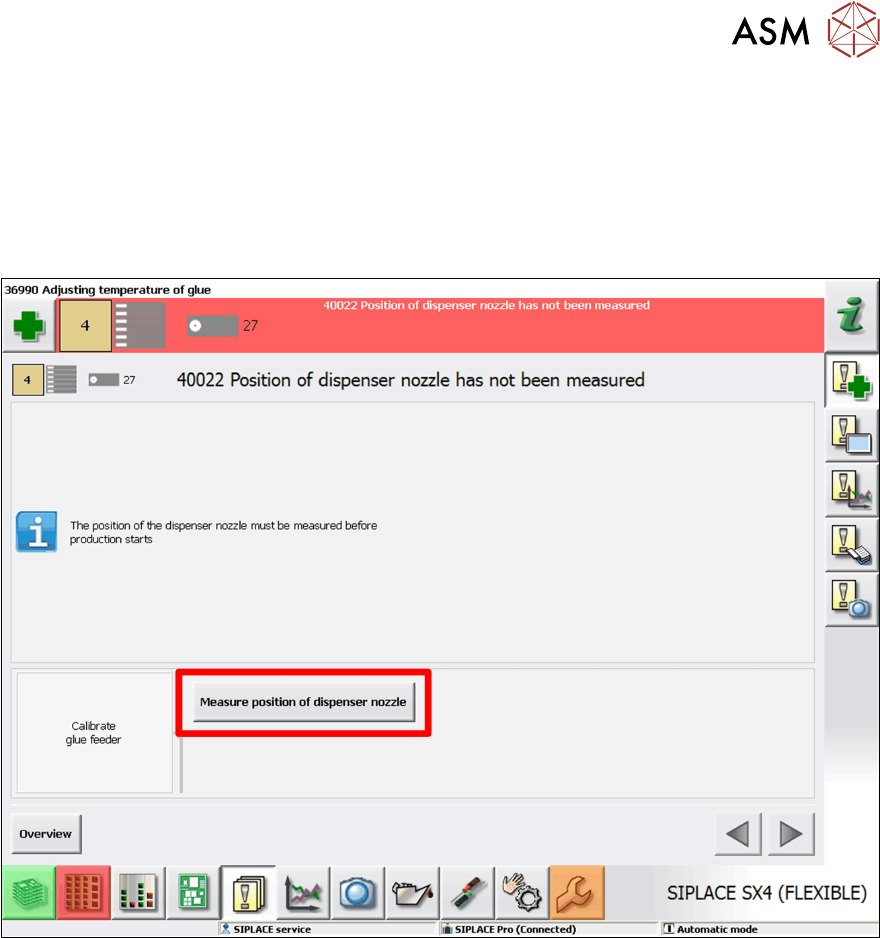

► Click on Measure Position of Dispenser Nozzle.
The position and height of the dispenser nozzle will be determined and saved.
4 Operation
4.2 Individual Functions in Stations Software 706.1 and Higher
46 User Manual SIPLACE Glue Feeder 05/2020
4.2.2 Manually Opening Measurement of Dispenser Nozzle Position
Before manual measurement can be performed, the Glue Feeder must have been referenced in
the machine i.e. be known in the machine.
To manually open measurement of glue dot positions, proceed as follows:
► Click on the Feeders, Components and Nozzles ... icon.(1)
► Select the location at which the Glue Feeder has been set up.(2)
► Mark the Glue Feeder.(3)
► Click on Settings.(4)
