5 Cleaning and Maintenance
5.4 Cleaning and Inspecting the Gluing Unit
72 User Manual SIPLACE Glue Feeder 05/2020
5.4.1.2 Removing the Nozzle Heating
► Unplug the heating connector from the nozzle
heating.
► Position the two lugs of the heating key into the
two holes in the union nut.
► Loosen the union nut by turning it anticlockwise.
► Remove the union nut.
► Remove the nozzle heating.
5 Cleaning and Maintenance
5.4 Cleaning and Inspecting the Gluing Unit
User Manual SIPLACE Glue Feeder 05/2020 73

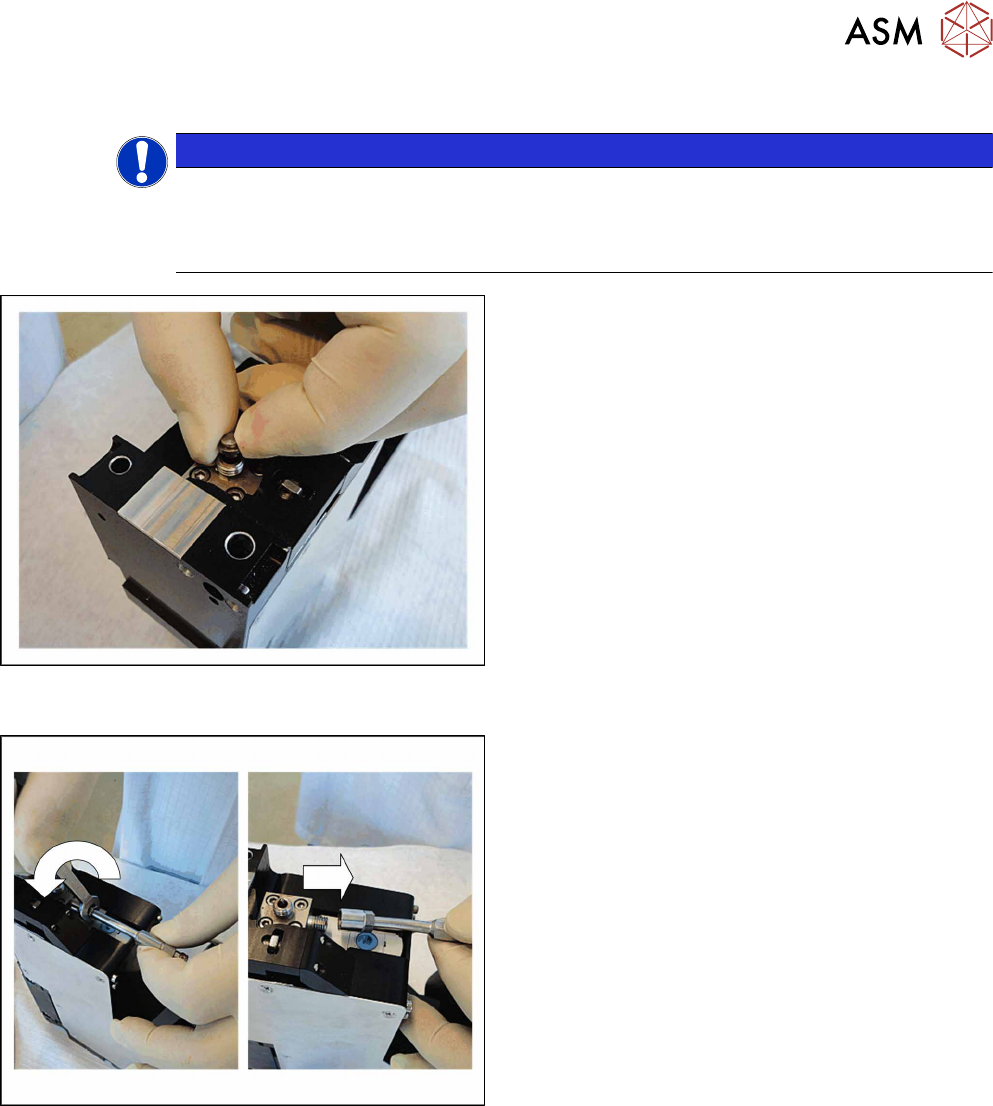

5.4.1.3 Removing the Dispenser Nozzle
NOTICE
Flat nozzle and needle nozzle
Depending upon its purpose, the glue feeder can be used with either a flat or needle
nozzle. The procedure for removing the dispenser nozzle is the same in both types and is
illustrated using the example of the flat nozzle in the following section:
► Lift the dispenser nozzle off the jet block.
5.4.1.4 Removing the Cartridge Pipe
► Hold the cartridge pipe tight with one hand.
► Loosen the screwed connection with the help of
an 8 mm open-ended wrench.
► Remove the cartridge pipe.
5 Cleaning and Maintenance
5.4 Cleaning and Inspecting the Gluing Unit
74 User Manual SIPLACE Glue Feeder 05/2020
5.4.1.5 Removing the Jet Block
► Loosen the 4 screws which fasten the jet block.
► Carefully lever the jet block vertically up and off
the jet plunger.
5.4.1.6 Removing the O Rings
► Turn the jet block so that the underside is at the
top.
► Use a pair of tweezers to remove the O ring.
► Use a lint-free cloth with a little glue remover and
clean the jet plunger.
► Use a pair of tweezers to pull the O-ring up and
over the jet plunger.
