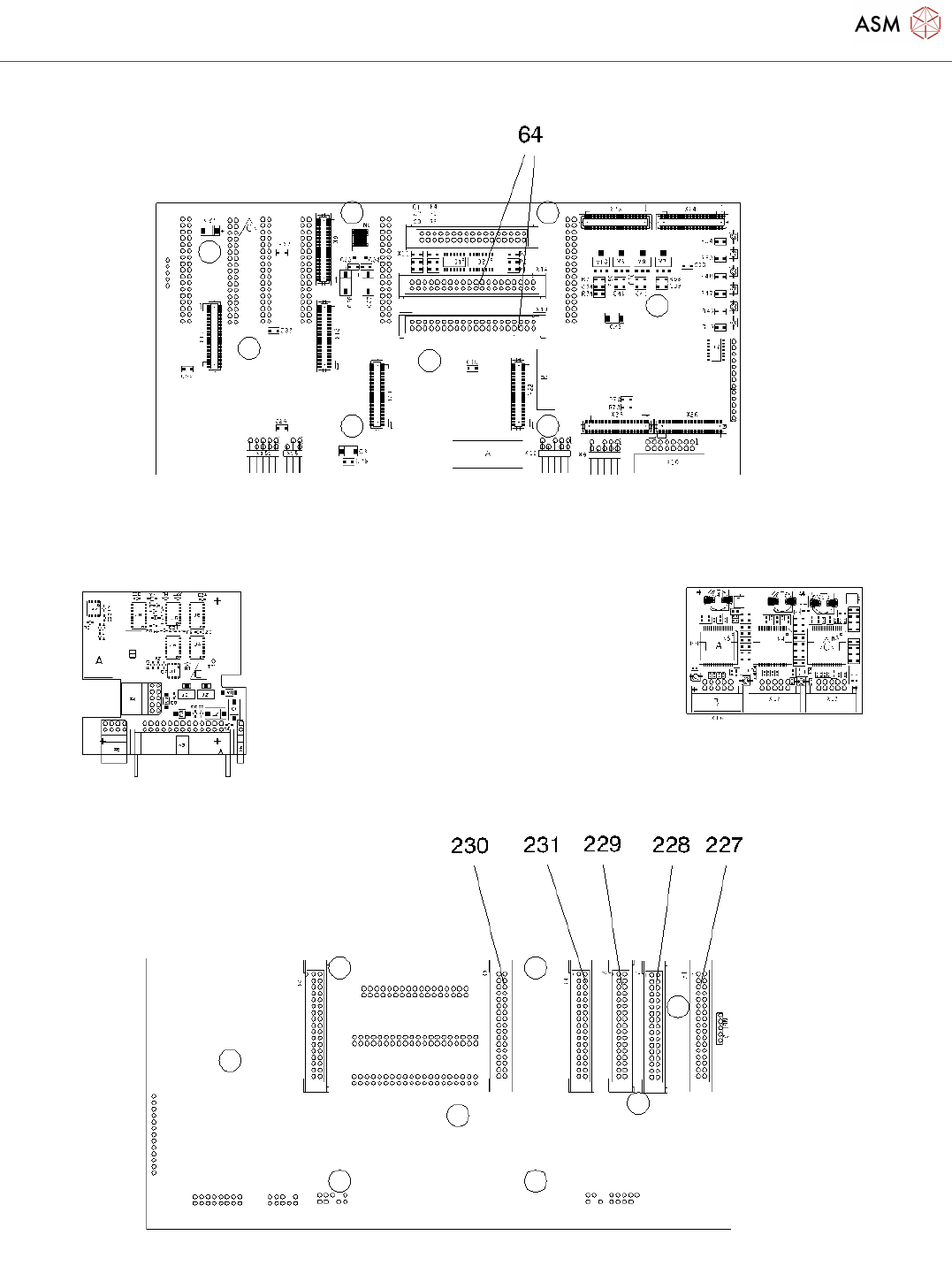

Collect and place head RVC 6-nozzle
Page 19 / 26 22.11.2021
Collect and place head RVC 6-nozzle
Page 20 / 26 22.11.2021
Pos. Item no. Description Part marking
1 03009555-01 COLLECT & PLACE HEAD COMPL.
RVC-6-NOZZLE
2 03009554S01 COLLECT & PLACE HEAD RVC-6
NOZZLE
Spare Part
3 03009542-02 FRONT PART COMPL.
RVC-6-NOZZLE
4 00335982-01 HOUSING /DLM1
5 00319327S06 BEARING RACE /Z-AXIS
GUIDE/SEGM. GUIDE
SPARE PART
6 00328906-01 DIN912-M3 X 5-A2-70
7 00320965S02 STOP
8 00845001-01 HEXAGON SOCKET HEAD CAP
SCREW M2 X 4-A2
9 00329280S01 1401TUBE 2X0,2 SPARE PART
10 00320045-01 THREADED PIN M1,6*2,5 DIN916
V2A
11 00337640S01 1401GUIDE GEAR WHEEL, DLM1 SPARE PART
12 00334937-01 GEAR WHEEL, DLM1
13 00319348-01 SPACER RING 2
14 00619845-01 DIN 6325 - 3M5 X 16-ST
15 00317349-01 MINIATURE BALL BEARING 3X8X3
RV 308X
WEAR PART
16 00319332-02 SPACER RING 1
17 03038908S01 Z-MOTOR WITH PCB SPARE PART
18 00845012-01 HEXAGON SOCKET HEAD CAP
SCREW M3 X 5-8.8, COPPER + NI-
PLATED
19 00337715S01 MOTOR CLIP1 (Z-AXIS DRIVE), DLM1 SPARE PART
20 00329135-01 DIN912-M3 X 14-A2-70
21 00343111S01 MOTOR CLIP2 (Z-AXIS DRIVE), DLM1 SPARE PART
22 00304134-01 DIN912-M2,5 X 12-A2-70
23 00320165S02 MINIATURE ROLLING TABLE SPARE PART
24 00201465-01 CAP SCREW DIN84-M2X4-A2
25 00332246S02 DRIVER DLM1 (PLACEMENT HEAD) SPARE PART
26 00845001-01 HEXAGON SOCKET HEAD CAP
SCREW M2 X 4-A2
27 00319331S02 MECHANICAL Z-AXIS GUIDE SPARE PART
28 00304435-01 DIN912-M2,5 X 5-A2-70
Collect and place head RVC 6-nozzle
Page 21 / 26 22.11.2021
Pos. Item no. Description Part marking
29 03020626S02 STAR MOTOR C29 CPLT. Spare Part
30 00322493S03 HANDLE SPARE PART
31 00201460-01 HEXAGON SOCKET HEAD CAP
SCREW
32 00321524S05 SENSOR, Z-AXIS, BOTTOM SPARE PART
33 00303472-01 DIN 84-M1,6 X 3-A2
34 00343112-01 CABLE HOLDER LIGHT BARRIER
3/DLM1
35 00304316-01 DIN912-M2 X 3-A2-70
36 00337964-01 CABLE HOLDER LIGHT BARRIER
2/DLM1
37 00845001-01 HEXAGON SOCKET HEAD CAP
SCREW M2 X 4-A2
38 00334801-01 ANGLE CLIP /DLM1
39 00322562-01 DIN912-M2,5 X 4-A2-70
42 00334936S01 TOOTH BELT T2, DLM1 WEAR PART
43 00319349S01 STOPPER SPARE PART
44 03043700S01 INSTEP LOCK / Z-AXIS SPARE PART
45 00308108-01 DIN912-M2,5 X 8-A2-70
46 03053294S01 LIGHT BARRIER Z-AXIS TOP SPARE PART
47 00329131-01 DIN912-M1,6 X 5-A2-70
48 00322491-01 CABLE HOLDER FLAT
49 00201533-01 HEXAGON SOCKET HEAD CAP
SCREW M2 X 5-A2
50 00335984S07 BLOWING UNIT / DLM1 SPARE PART
51 00336439-01 DISTRIBUTOR BLOCK /DLM1
52 03003526-03 MICRO SWITCHING VALVE BLOWING
UNIT 15V
SPARE PART
53 03050651-01 BANJO BOLT M5
54 00368050-01 THREADED JOINT SMC M-5ALN-4
55 03049879-01 TEE HOSE NIPPLE LO 3000-2.5 STANDARD PARTS
56 00342849-02 TUBE 20/DLM1
57 00342863-02 HOSE
58 00342850-02 TUBE 21/DLM1
59 00342861-02 TUBE 22/DLM1
60 00342875-02 COMPRESSED AIR HOSE BLAST AIR
VALVE /DLM1
