MODEL TCM-3500Z-2 0109-001 142 㨄㨅࠹ࡉ࡞ㇱ XY TABLE SECTION Fig. 6-7 ࠪࡘ࠻ࠞࡃ Chute Cover See Fig.6-6 Key No.45 10 10 19 19 19 19 18 18 1 9 1 6 9 8 9 7 9 6 5 4 2 3 6 5 4 2 1 3 17 17 11 11 See Fig.6-6 Key No.6 See Fig.6-3 Key …
MEMO
MODEL TCM-3500Z-2
0109-001
142

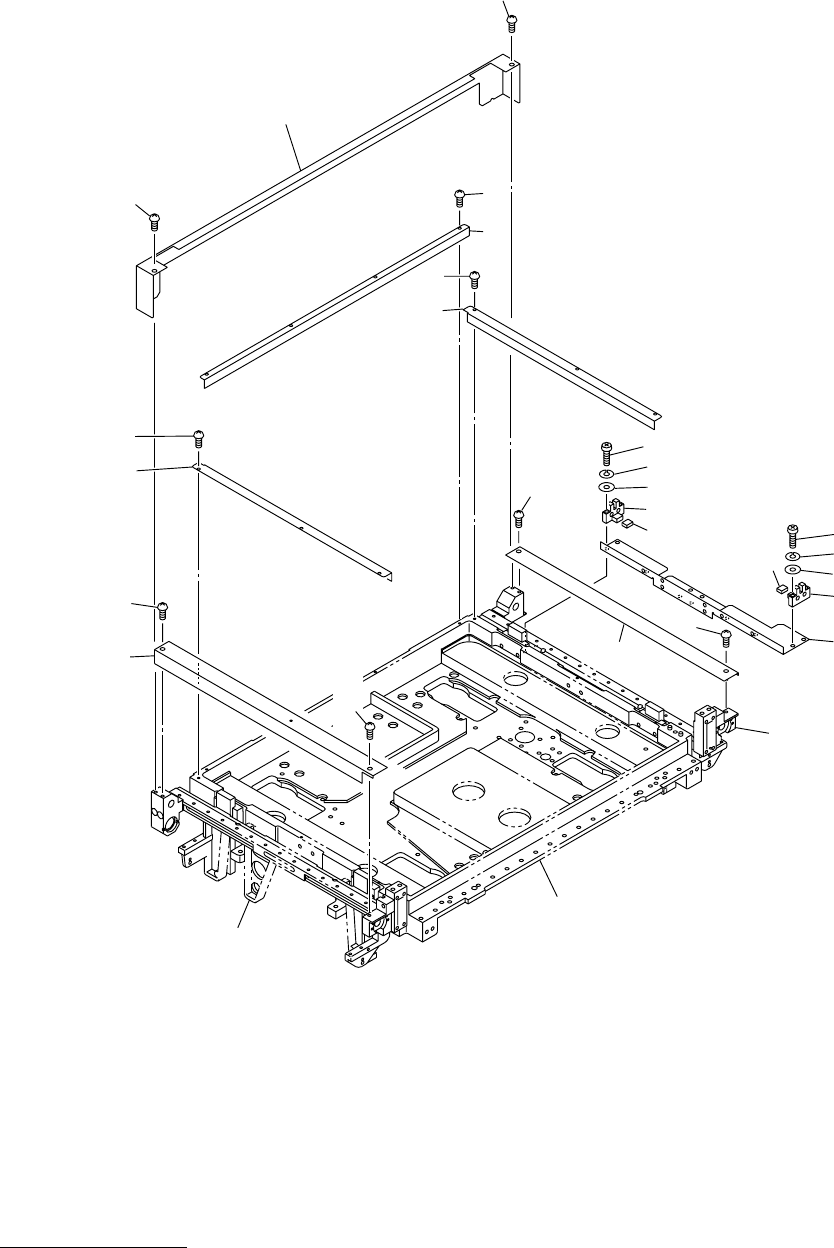

㨄㨅࠹ࡉ࡞ㇱ XY TABLE SECTION
Fig. 6-7 ࠪࡘ࠻ࠞࡃ Chute Cover
See Fig.6-6
Key No.45
10
10
19
19
19
19
18
18
19
16
9
8
9
7
9
6
5
4
2
3
6
5
4
2
1
3
17
17
11
11
See Fig.6-6
Key No.6
See Fig.6-3
Key No.1
11
11
9
MODEL TCM-3500Z-2
0109-001
143
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
6-7
1 630 064 5514 BRACKET 1 678J--02B-048
2 630 000 0252 SENSOR,PHOTO 2 PHS105, PHS106 678J--02H-071
3 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 678J--02H-075
4 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
5 411 086 4408 WASHER SPR 3 4 SW3 F
6 411 113 0502 SCR PAN 3X14 4 M3X14 PAN
7 630 064 5903 COVER 1 678J--02B-046
8 630 064 5927 COVER 1 678J--02B-052
9 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
10 630 064 5910 COVER 1 678J--02B-047
11 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
16 630 068 3059 COVER 1 678J--02B-144
17 630 068 3042 COVER 1 678J--02B-143
18 630 068 3066 COVER 1 678J--02B-145
19 411 050 5004 SCR TRS 3X6 10 M3X6 TRS
