P-0197-001 - 第162页

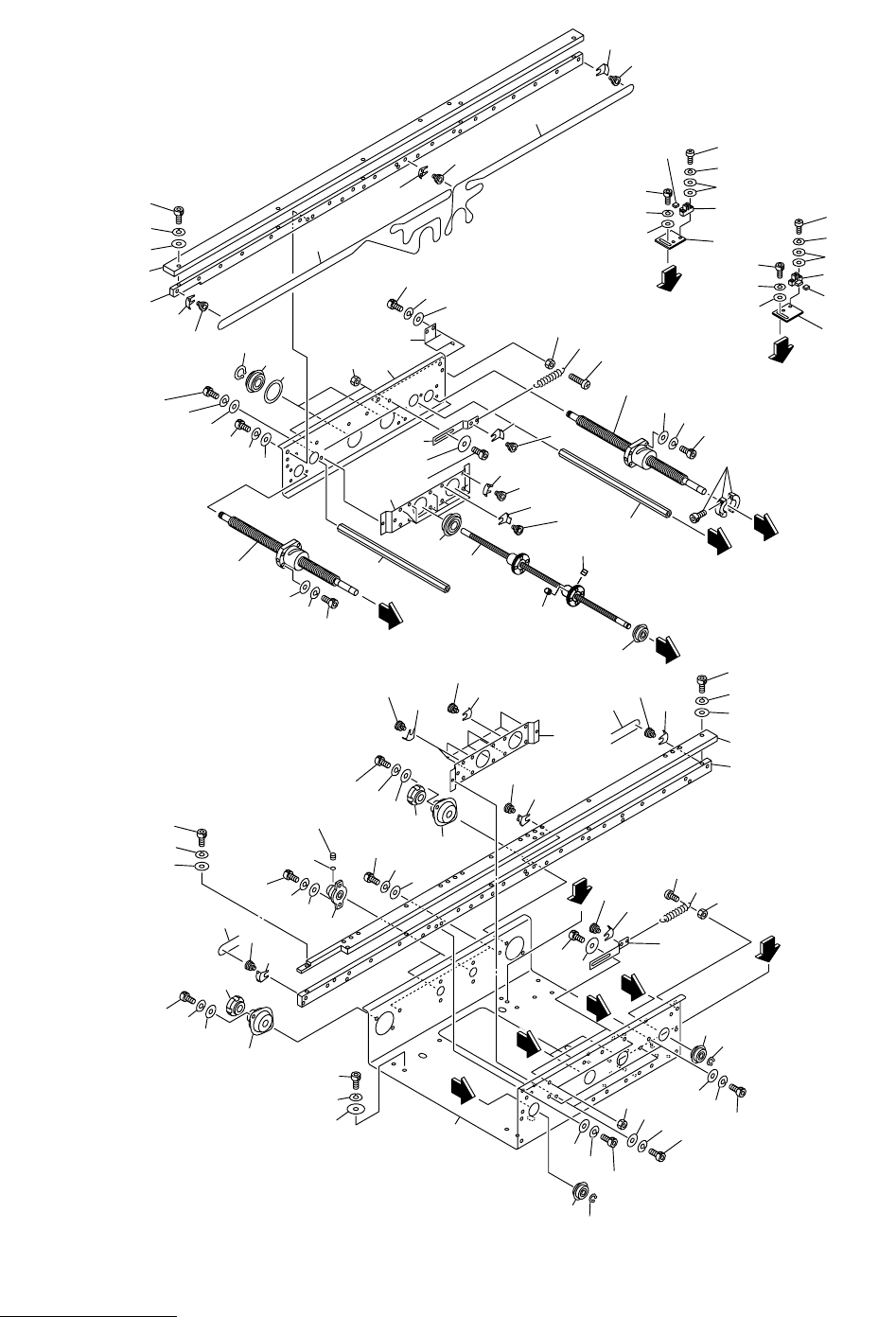

MODEL TCM-3500Z-2 0109-001 160 R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION Fig. 8-1 ࠦࡦࡌࠕ Conveyor 53-3 5 3 53-3 53-3 5 3 5 4 5 5 5 7 8 - 1 60 60 59 59 58 58 9 20 20 1 8 17 17 14 14 1 5 16 16 1 1 1 2 13 13 45 45 28 28 2 9 3 0 2 7 38 38 38…
MODEL TCM-3500Z-2
0109-001
159
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
7-4
1 630 064 2131 PLATE 4 678G--02B-033
1 -1 630 059 2412 BRACKET(PHOTO R) 2 678G--02B-016
1 -2 630 059 2405 BRACKET(PHOTO L) 1 678G--02B-039
1 -3 630 058 8705 BRACKET(PHOTO R) 1 678G--02B-040
2 630 060 6973 SENSOR,PHOTO 4 PHS125, PHS57, PHS58, PHS122
678G--02H-026
3 -1 411 119 1909 WASHER V 3X7X0.5 16 FW3 F
3 -2 411 086 4408 WASHER SPR 3 16 SW3 F
3 -3 411 162 1604 SCR PAN 3X20 8 M3X20 PAN
3 -4 411 054 6809 NUT HEX 3 8 M3 F
6 411 141 4008 WASHER V 4X9X0.8 8 FW4
7 411 141 2905 WASHER SPR 4 8 SW4
8 630 000 7619 BOLT,HEX-SCT 8 M4X8
9 -1 411 141 4008 WASHER V 4X9X0.8 8 FW4
9 -2 411 141 2905 WASHER SPR 4 8 SW4
9 -3 630 000 7657 BOLT,HEX-SCT 8 M4X16
11 630 057 7365 LEVER 1 678G--02B-015
12 630 001 0220 WASHER 2 678G--02H-027
13 630 000 7787 BOLT,HEX-SCT 1 M5X25
14 411 141 0604 NUT HEX 5 1 M5-3
15 411 054 6809 NUT HEX 3 1 M3 F
16 411 040 6202 SCR PAN 3X10 1 M3X10 PAN
17 411 054 8506 NUT HEX 4 1 M4 F
18 411 162 1505 SCR PAN 4X20 1 M4X20 PAN
19 630 001 8103 SPRING,TENSION 1 678G--02H-028
21 630 067 2589 BRACKET(CYL) 1 678G--02B-026
22 630 060 6980 ROTARY ACTUATOR 1 SV32 678G--02H-034
23 630 058 8712 LEVER 1 678G--02B-027
24 630 057 7372 LEVER 1 678G--02B-028
25 411 141 4008 WASHER V 4X9X0.8 2 FW4
26 411 141 2905 WASHER SPR 4 2 SW4
27 630 000 7626 BOLT,HEX-SCT 2 M4X10
28 411 141 4008 WASHER V 4X9X0.8 1 FW4
29 411 141 2905 WASHER SPR 4 1 SW4
30 630 000 7664 BOLT,HEX-SCT 1 M4X20
31 411 141 4008 WASHER V 4X9X0.8 2 FW4
32 411 141 2905 WASHER SPR 4 2 SW4
33 630 000 7626 BOLT,HEX-SCT 2 M4X10
34 411 141 4107 WASHER V 5X10X1 2 FW5
35 411 141 6705 WASHER SPR 5 2 SW5
36 630 000 7749 BOLT,HEX-SCT 2 M5X10
MODEL TCM-3500Z-2
0109-001
160
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION
Fig. 8-1 ࠦࡦࡌࠕ Conveyor
53-3
53
53-3
53-3
53
54
55
57
8-1
60
60
59
59
58
58
9
20
20
18
17
17
14
14
15
16
16
11
12
13
13
45
45
28
28
29
30
27
38
38
38
38
43
43
44
44
53-3
53
53-3
53
53-2
53
53
42
42
46
48
48
47
69
68
68
67
66
28
29
30
96
27
55
55
53
53
53-3
53
53-1
53-1
53
53-3
53-3
3
60
60
59
59
58
58
56
56
8
36
35
35
34
34
37
37
33
33
53
53
53-1
41
40
40
39
26
25
25
24
24
23
23
22
26-1
26-1
36
35
34
34
37
33
33
54
54
53
53
53-3
93
93
92
92
91
91
2
31
32
14
15
16
16
45
45
4
5
6
31
32
39
40
46
48
47
53-3
53
43
44
44
42
41
A
A
B
D
D
C
C
60-1
59
58
79
73
78
77
76
76
75
75
74
74
72
72
71
71
79
78
77
76
76
75
75
74
74
71
71
72
72
73
73
E
F
E
F
7
10
18
19
21
B
21
53-2
53-2
53
Fig.8-1
TCM-3500Z-2
MODEL TCM-3500Z-2
0109-001
161
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
8-1
2 630 064 8218 BASE(CONVEYOR R) 1 678H--02B-001
3 630 053 0629 PLATE 1 678H--02B-004
4 411 141 4107 WASHER V 5X10X1 2 FW5
5 411 141 6705 WASHER SPR 5 2 SW5
6 630 000 7749 BOLT,HEX-SCT 2 M5X10
7 630 001 1548 BEARING,RADIAL 2 678H--02H-022
8 630 064 8249 PLATE(MAE) 1 678H--02B-012
8 -1 630 069 7834 PLATE (OKU) 1 678H--02B-011
9 630 064 8225 PLATE,LOCATE(R) 1 678H--02B-003
10 630 053 0612 PLATE,LOCATE 1 678H--02B-006
11 411 141 4107 WASHER V 5X10X1 2 FW5
12 411 141 6705 WASHER SPR 5 2 SW5
13 630 000 7749 BOLT,HEX-SCT 2 M5X10
14 411 141 4305 WASHER V 6X12.5X1.6 6 FW6
15 411 141 3001 WASHER SPR 6 6 SW6
16 630 000 7886 BOLT,HEX-SCT 6 M6X16
17 630 030 5913 COLLAR 2 678H--02B-007
18 630 001 1531 BEARING,RADIAL 4 678H--02H-021
19 630 065 4264 GUIDE,SLIDE 2 678H--02H-024
20 411 000 7805 RING C 20 2 678H--02H-023
21 630 000 8883 SET SCREW 2 M3X4 SET
22 630 008 5303 BEARING,UNIT 2 678H--02H-020
23 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
24 411 141 3001 WASHER SPR 6 4 SW6
25 630 000 7879 BOLT,HEX-SCT 4 M6X12
26 630 000 8920 SET SCREW 2 M4X6 SET
26 -1 630 053 5419 COLLAR 2 678H--02B-025
27 630 065 4295 BALL SCREW 2 678H--02H-010
28 411 141 4008 WASHER V 4X9X0.8 8 FW4
29 411 141 2905 WASHER SPR 4 8 SW4
30 630 000 7657 BOLT,HEX-SCT 8 M4X16
31 630 001 1432 BEARING,RADIAL 2 678H--02H-009
32 411 000 7300 RING C 12 2 678H--02H-004
33 630 031 0566 BEARING,UNIT 2 678H--02H-012
34 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
35 411 141 3001 WASHER SPR 6 4 SW6
36 630 000 7879 BOLT,HEX-SCT 4 M6X12
37 630 031 0573 NUT 2 678H--02H-013
38 630 064 8133 STAY 2 678H--02B-008
39 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
40 411 141 3001 WASHER SPR 6 4 SW6
41 630 000 7886 BOLT,HEX-SCT 4 M6X16
42 630 053 0636 PLATE 4 678H--02B-005
43 630 001 0220 WASHER 4 678H--02H-027
44 630 000 7763 BOLT,HEX-SCT 4 M5X16
45 411 141 0505 NUT HEX 5 4 M5
46 411 118 8503 NUT HEX 5 4 M5 F
47 411 140 6508 SCR PAN 5X20 4 M5X20 PAN
48 630 002 9697 SPRING,TENSION 4 678H--02H-003
53 630 031 0399 BEARING,RADIAL 66 678H--02H-001
