MODEL TCM-3500Z-2 0109-001 218 㔚᳇ᓮㇱ ELECTRICAL SECTION Fig.11-12 ᯏ᪾ᑫࠅ 1 Miscellaneous Parts-1 B E A 5 0 4 9 4 8 4 7 41 41 5 0 4 9 4 8 4 6 4 5 5 1 4 4 4 3 55 55 52 52 54 54 53 53 4 2 C D 7 2 A 7 1 7 3 7 3 10-1 10-5 10-5 …
MODEL TCM-3500Z-2
0109-001
217
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-11
1 630 094 6161 BOX 1 678DD-02V-001
2 630 051 6173 HANDLE 1 678DD-02D-018
3 411 141 4503 WASHER V 8X17X1.6 2 FW8
4 411 141 3100 WASHER SPR 8 2 SW8
5 630 000 8005 BOLT,HEX-SCT 2 M8X16
6 630 094 4877 UNIT,DISPLAY 1 #GM-1000RJ C 678DD-02D-014
7 630 094 2972 PANEL 1 678DD-02V-008
8 411 140 8304 SCR BIN 4X10 8 M4X10 BIN
10 630 058 5728 PANEL 1 678DD-02V-002
11 630 033 4609 SWITCH,BUTTON 1 PB2 678DD-02D-001
12 630 033 4586 DISPLAY ELEMENT 1 LED8 678DD-02D-002
13 630 033 4593 ACCESSORY,SW 1 678DD-02D-003
14 630 066 7042 SWITCH,BUTTON 1 PB4 678DD-02D-004
16 630 000 2713 SWITCH,BUTTON 1 PB14(LED9) 678DD-02D-006
17 630 000 0382 ACCESSORY,SW 1 678DD-02D-009
18 630 000 2515 SWITCH,BUTTON 2 PB18, PB19 678DD-02D-005
19 630 000 2713 SWITCH,BUTTON 2 PB15(LED10), PB22(LED11)
678DD-02D-006
20 630 000 0382 ACCESSORY,SW 2 678DD-02D-009
21 630 000 2508 SWITCH,BUTTON 2 PB16, PB17 678DD-02D-012
22 630 000 0382 ACCESSORY,SW 2 678DD-02D-009
23 630 007 6066 SWITCH,BUTTON 1 PB20 678DD-02D-007
24 630 007 6066 SWITCH,BUTTON 1 PB21 678DD-02D-007
25 630 000 0382 ACCESSORY,SW 1 678DD-02D-009
27 630 000 2744 SWITCH,BUTTON 1 PB23(LED12) 678DD-02D-008
28 407 035 4704 LED SLP-721F 1 LED13 678DD-02D-011
29 411 140 8304 SCR BIN 4X10 5 M4X10 BIN
30 630 000 5059 COUNTER 1 MCT 678DD-02D-013
31 630 085 7566 COVER 1 678DD-02V-006
32 411 113 9109 SCR TRS 5X10 9 M5X10 TRS
41 630 057 8010 SUPPORT 1 678DD-02V-004
42 630 051 6180 BUSH,BEARING 2 678DD-02D-015
43 630 052 3041 BRACKET 1 678DD-02V-003
44 630 051 5923 PIN,LOCATE 2 678DD-02V-005
45 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
46 411 141 3001 WASHER SPR 6 4 SW6
47 630 000 7886 BOLT,HEX-SCT 4 M6X16
48 630 051 6166 MECH PARTS(DRYMET WASHER) 1 678DD-02D-016
49 630 051 6159 MECH PARTS(7LOBE KNOB) 1 678DD-02D-017
50 630 041 6770 COLLAR 1 678DD-02V-007
51 630 000 8944 SET SCREW 1 M5X6 SET
52 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
53 411 141 3001 WASHER SPR 6 4 SW6
54 630 000 7886 BOLT,HEX-SCT 4 M6X16
55 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
56 411 141 3001 WASHER SPR 6 4 SW6
57 630 000 7893 BOLT,HEX-SCT 4 M6X20

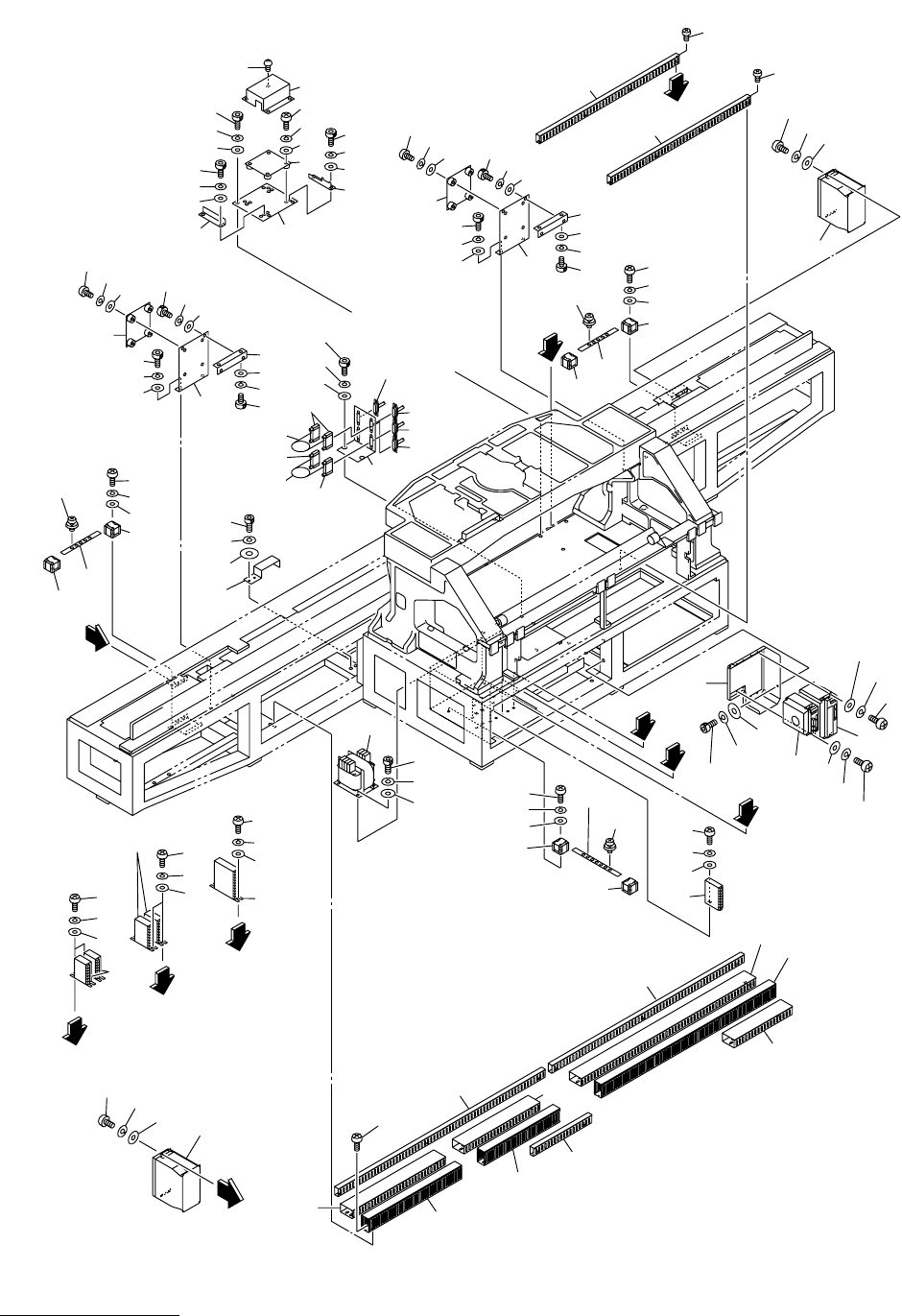

MODEL TCM-3500Z-2
0109-001
218
㔚᳇ᓮㇱ ELECTRICAL SECTION
Fig.11-12 ᯏ᪾ᑫࠅ 1 Miscellaneous Parts-1
B
E
A
50
49
48
47
41
41
50
49
48
46
45
51
44
43
55
55
52
52
54
54
53
53
42
C
D
72
A
71
73
73
10-1
10-5
10-5
10-1
10-6
10-6
10-2
10-3
10-4
30
31
32
24
25
23
22
21
26
32
31
30
30
29
28
27
27
95
See Fig.11-14
Key No.7
Key No.7
96
97
91
91
87
92
92
92
93
93
93
93
92
92
89
89
88
88
21
29
29
28
27
27
32
31
30
22
23
32
32
26-1
31
31
30
30
24
25
25
10-2
10-1
10-5
10-1
10-6
10-3
10-4
19-4
19-3
19-2
19-1
66
61
65
62
62-1
62-1
14
14
13
13
12
12
11-1
11-1
B
C
D
14
13
12
11-2
11-2
14
13
12
11-3
11-3
15-3
15-2
15-1
15
19-6
19-1
19-1
19-5
68
67
64
64
63
63
63-1
61-1
3
4
2
56
56
58
59
57
1
E
1
2
4
3
104
103
102
101
101
6-1
6
6-2
6-2
6-3
5-1
5
5-2
5-3
69-3
69-2
69-1
69
69
Fig.11-12
TCM-3500Z-2
MODEL TCM-3500Z-2
0109-001
219
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-12
1 630 091 1541 UNIT,DRIVER 2 SMD2(R1), SMD3(R2),
#SGDM-50ADA-R 678FB-02D-019
2 411 088 1702 WASHER V 5X10X1 8 FW5 F
3 411 008 2109 WASHER SPR 5 8 SW5 F
4 411 043 6803 SCR PAN 5X12 8 M5X12 PAN
5 630 091 1558 UNIT,DRIVER 1 SMD4(X), #SGDM-30ADA-R
678FB-02D-021
5 -1 411 088 1702 WASHER V 5X10X1 4 FW5 F
5 -2 411 008 2109 WASHER SPR 5 4 SW5 F
5 -3 411 043 6803 SCR PAN 5X12 4 M5X12 PAN
6 630 094 7779 UNIT,DRIVER 1 SMD5(Y), #SGDM-15ADA-R
678FB-02D-022
6 -1 411 119 2104 WASHER V 4X9X0.9 4 FW4 F
6 -2 411 008 1706 WASHER SPR 4 4 SW4 F
6 -3 411 003 0001 SCR PAN 4X12 4 M4X12 PAN
10 -1 630 051 5763 WIRE PARTS 4 678FB-02D-101
10 -2 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
10 -3 411 008 1706 WASHER SPR 4 4 SW4 F
10 -4 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
10 -6 411 036 8609 SCR PAN+SW+W 5X12 12
11 -1 630 053 2654 UNIT,DRIVER 1 PMD19(TR), #AK-BX551PV-SAT8
678FB-02D-082
11 -2 630 051 6555 UNIT,DRIVER 2 PMD101(CVW1), PMD102(CVW2),
#AK-BX501V-SAT4 678FB-02D-018
11 -3 630 066 0906 UNIT,DRIVER 2 PMD104(BPC), PMD100(PWC),
#AK-BX22-SAT1 678FB-02D-152
12 411 119 2104 WASHER V 4X9X0.8 10 FW4 F
13 411 008 1706 WASHER SPR 4 10 SW4 F
14 411 042 3001 SCR PAN 4X10 10 M4X10 PAN
15 630 049 0626 UNIT,POWER 1 PSU6, RWS15A-5A 678FB-02D-081
15 -1 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
15 -2 411 086 4408 WASHER SPR 3 2 SW3 F
15 -3 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
19 -1 630 051 5763 WIRE PARTS 2 678FB-02D-101
19 -2 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
19 -3 411 008 1706 WASHER SPR 4 2 SW4 F
19 -4 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
19 -6 411 036 8609 SCR PAN+SW+W 5X12 8
21 630 057 9017 SUPPORT 2 678FB-02V-004
22 630 001 0220 WASHER 4 BW5
23 411 141 6705 WASHER SPR 5 4 SW5
24 630 000 7756 BOLT,HEX-SCT 4 M5X12
25 630 057 9000 PANEL 2 678FB-02V-003
26 630 096 2536 P.C.B,MOUNT(MEKAHAI) 1 U942*002*0000 678FB-02U-001
26 -1 630 096 2741 P.C.B,MOUNT(MEKAHAI) 1 U942*002*0003 678FB-02U-004
27 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
28 411 086 4408 WASHER SPR 3 8 SW3 F
29 411 162 1604 SCR PAN 3X20 8 M3X20 PAN
30 630 001 0220 WASHER 8 BW5
31 411 141 6705 WASHER SPR 5 8 SW5
