Safety Precautions EUKYX-Safety 199-X100 Safe-28 No. Al er t L ab el s an d De sc rip ti on (13 ) Description ● Do no t dro p a fee de r . O th er w ise, a fo ot inj ur y wi ll res ult o r the fe ed er it se lf may b e d…
Safety Precautions
EUKYX-Safety
199-X100
Safe-27
No. Alert Labels and Description
(10)
CAUTION
Your hand might be caught in the moving section. Do not
put your hand into the cover opening during the machine
operation.
Pay attention to the moving
mechanisms!
10-0249-
Description
●
Do not put your hand inside the machine while the machine is running.
Otherwise, your hand may be trapped in the moving mechanisms, causing injury.
(11)
10-0339-
CAUTION
When the feeder base is moved up and down
and your finger is put into the moving section,
you might get injured.
Do not put your hand into the moving section.
Your hand or finger might be crushed.
Description
●
Do not put your hand in the moving area while the feeder base is moving up or down. While the
LED of a [FEEDER READY] switch is flickering, it indicates that the feeder base is moving
upward or downward.
(12)
10-0334-
Strong Magnetism!
Do not bring any metal close to this.
Otherwise, such metal will easily be
magnetized and attracted,
causing an injury to the operator.
CAUTION
Description
●
Strong permanent magnets are used in the moving sections of the X/Y beam.
• Do not bring any metal of high magnetizability close to this. Otherwise, such metal will easily
be magnetized and attracted, causing an injury to the operator or breakdown of the machine.
• Do not bring any object such as a magnetic card or a watch close to the magnets. Such an
object can easily be affected by the magnetism. Otherwise, the data of the magnetic car might
be cleared or a watch, etc., may be damaged due to the strong magnetism.
5. Alert Labels
Safety Precautions
EUKYX-Safety
199-X100
Safe-28

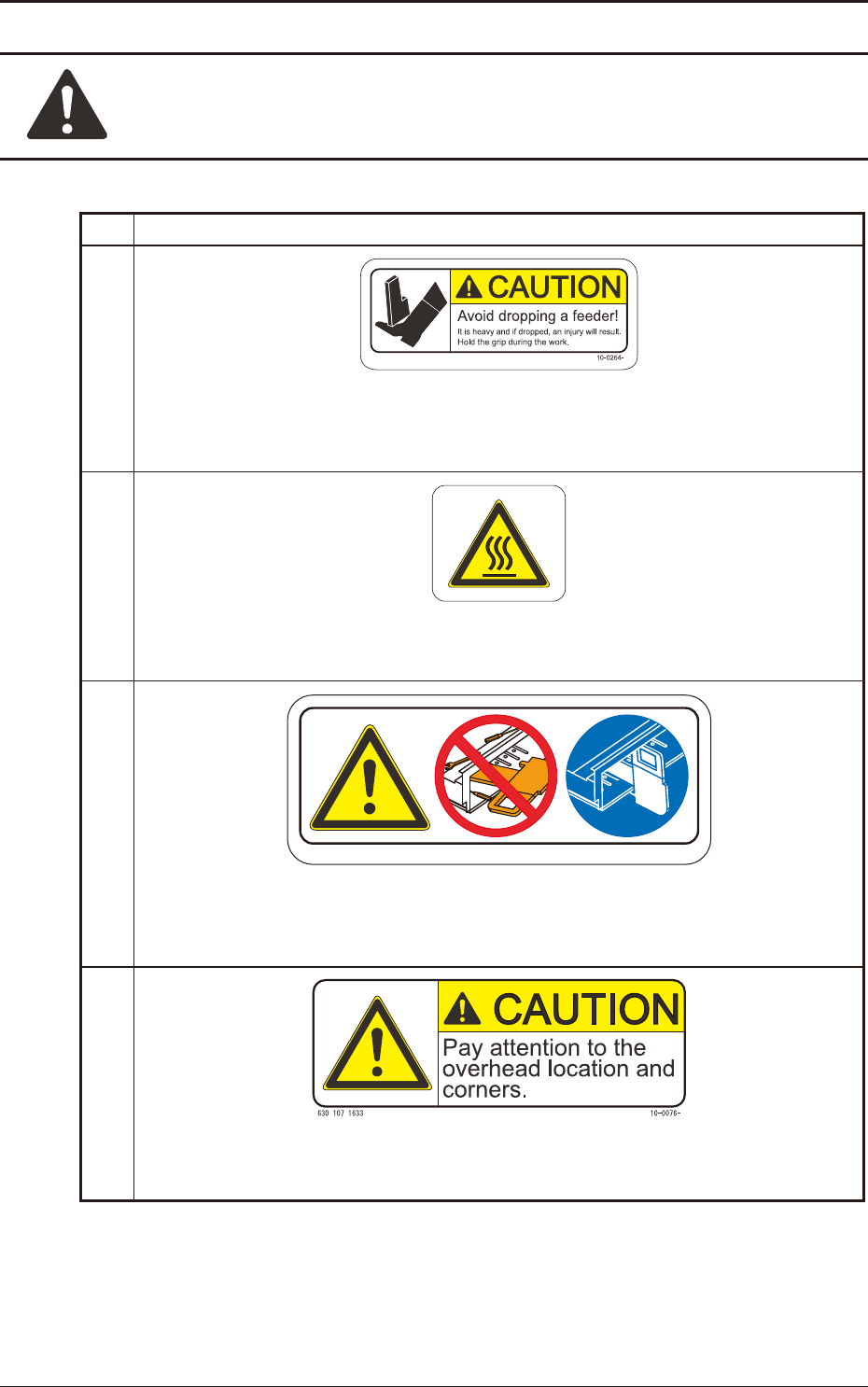

No. Alert Labels and Description
(13)
Description
●
Do not drop a feeder. Otherwise, a foot injury will result or the feeder itself may be damaged.
Carefully handle each feeder one by one and do not drop any.
(14)
00-0293-
Description
●
Because the temperature of this section is very high, do not touch. Doing so might cause a burn.
(15)
00-0263-
Description
●
Do not put any feeder sideways nor tools on the feeder bases. Otherwise, the machine will break
down.
(16)
Description
●
Make sure not to hit a part of body on the machine. Doing so may cause injury.
5. Alert Labels
Safety Precautions
EUKYX-Safety
199-X100
Safe-29
No. Alert Labels and Description
(17)
10-0252-
The machine will be break down.
Trained Personnel Only!
Description
●
If you put your hand or a heavy object on the backup table while working inside the machine, the
backup table may become deformed due to an excessive load.
(18)
10-0333-
Never disconnect the connector during
the feeder base lifting operation.
Doing so might cause a system malfunction.
Description
●
Do not disconnect the connector during the feeder base moving-up operation. Doing so might
cause a malfunction of the system.
(19)
10-0335-
Keep Linear Guide Grooves
Clear of Any Object!
An object in the groove may be trapped in the
moving part, causing the machine to be damaged.
Description
●
Keep the linear guide grooves clear of any object. Otherwise, an object in the groove may be
trapped in the moving part, causing the machine to be damaged.
5. Alert Labels
