EUKYX 2-3 199-5100 1.3 Cover Layout 1. 3 Co ver Lay out M102 H1 1F H1 H1 1B M101 S 111 B S 111 F Symbol Name Symbol Name H1 Light T ower H1 1F Material Indicator (Front) H1 1B Material Indicator (Rear) S132 COVER LOCK (F…
EUKYX
2-2199-5100

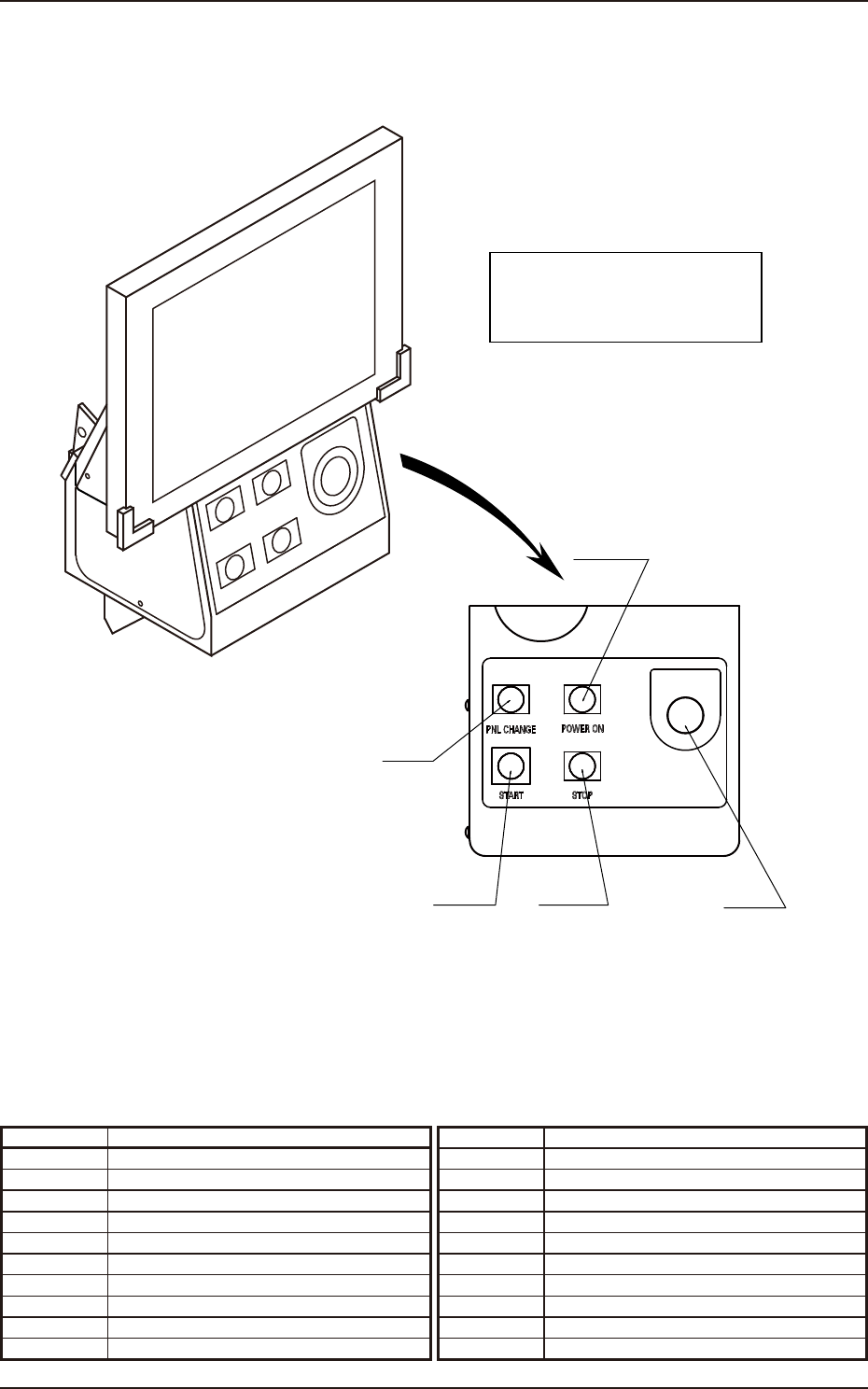

1.2 Panel Layout
1.2 Panel Layout
S101F
S101B
S103F
S103B
S102F
H102F
S102B
H102B
S105F
S105B
S104F
H104AF
S104B
H104AB
Upper Stage: Front View
Lower Stage: Rear View
Symbol Name Symbol Name
S101F POWER ON PB (Front) S101B POWER ON PB (Rear)
S102F START (Front) S102B START (Rear)
H102F START (Front) LED H102B START (Rear) LED
S103F STOP (Front) S103B STOP (Rear)
S104F PNL CHANGE (Front) S104B PNL CHANGE (Rear)
H104AF PNL CHANGE (Front) LED H104AB PNL CHANGE (Rear) LED
S105F Emergency Stop Operation Switch (Front) S105B Emergency Stop Operation Switch (Rear)
EUKYX
2-3199-5100
1.3 Cover Layout
1.3 Cover Layout
M102
H11F
H1
H11B
M101
S111B
S111F
Symbol Name Symbol Name
H1 Light Tower
H11F Material Indicator (Front) H11B Material Indicator (Rear)
S132 COVER LOCK (Front Side) S132 COVER LOCK (Rear Side)
M101 Ceiling Cooling Fan (Left) M102 Ceiling Cooling Fan (Right)
S111F READY (Front) [Feeder Ready] S111B READY (Rear) [Feeder Ready]
EUKYX
2-4199-5100
1.4 Beam Y-Axis Layout
1.4 Beam Y-Axis Layout
U22
U23
M23
M22
U22
U23
M23
B2203
B2201
M23
Symbol Name Symbol Name
M22 Y1-Axis Motor
M23 Y2-Axis Motor
U22 Y1 Linear Scale Head
U23 Y2 Linear Scale Head
B2201 Y-Axis Limit (+)
B2205 Y-Axis Limit (-)
