WEST•BOND MODEL 454647E SERIES INSTRUCTION MANUAL
107
RADIANT HEATER CHARTS
Dial Settings for 0.750” Tools
This machine has been equipped with a Radiant Heater, which provides radiant heat around the bonding tool.
The heater temperature is adjusted by the multi-dial labeled T
OOL HEAT, located on the front panel.
Model 4546E
2½ Turn Heater at 0.750” Tool Length
12º
45º
87º
118º
150º
158º
188º
200º
220º
245º
70º
0
25
50
75
100
125
150
175
200
225
250
275
012345678910
DIAL SETTING
TEMPERATURE (DEGEES CENTIGRADE)
WEST•BOND MODEL 454647E SERIES INSTRUCTION MANUAL
108

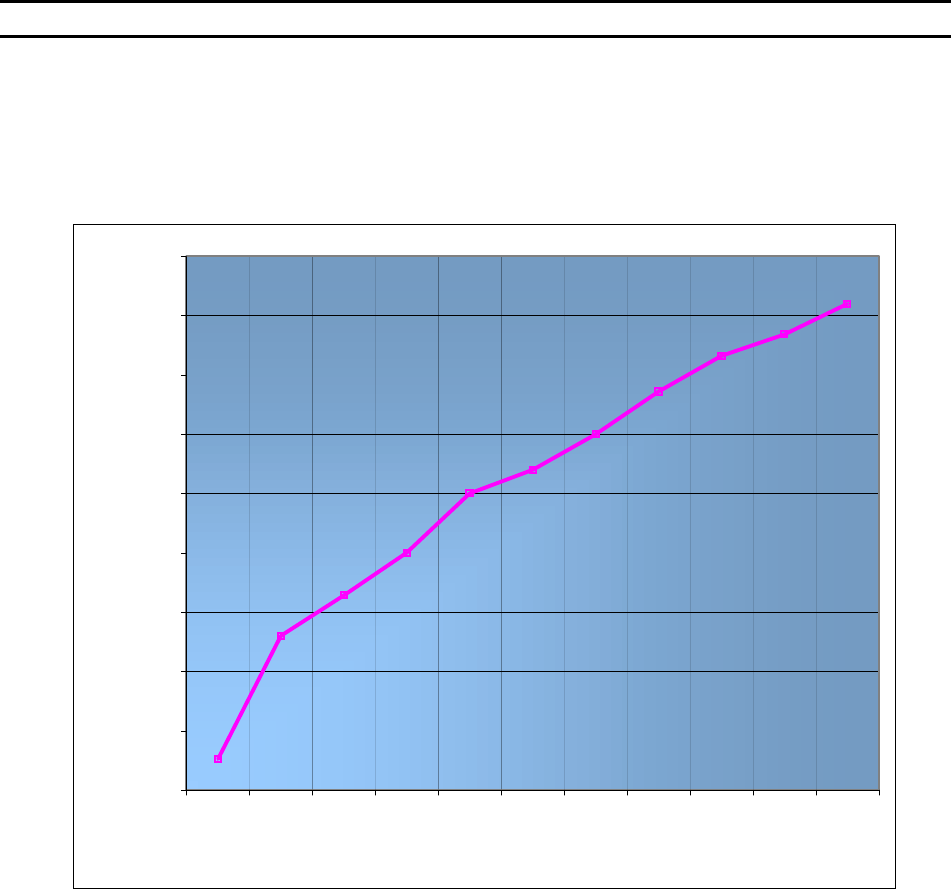

RADIANT HEATER CHARTS
Dial Settings for 0.625” Tools
This machine has been equipped with a Radiant Heater, which provides radiant heat around the bonding tool.
The heater temperature is adjusted by the multi-dial labeled T
OOL HEAT, located on the front panel.
Model 4700E
2½ Turn Heater at 0.625” Tool Length
13º
65º
100º
125º
135º
150º
168º
183º
192º
205º
82º
0
25
50
75
100
125
150
175
200
225
012345678910
DIAL SETTING
TEMPERATURE (DEGEES CENTIGRADE)
WEST•BOND MODEL 454647E SERIES INSTRUCTION MANUAL
109
APPLICATION AND BOND SCHEDULE
Description and pertinent information:
Model and Configuration:
Machine:
Tool:
Workholder:
Temp:
Tool Heat:
Wire / Ribbon:
Size:
Elongation:
Bond Settings WIRE TYPE DATA
Type 1 2 3 4 5
No. of Wires
No. of Bonds
Critical Bond
LOOPING PROFILES
Search Elev. 1
Z Before Y
Back Bend
Loop Elev.
Y-Offset
Clamp @ Loop
Search Below Loop
Clamp @ Search
BOND PARAMETERS
1 2 1 2 1 2 1 2 1 2
U/S Power
U/S Time (ms)
Bond Force (grams)
Z Depth
Loop Speed
Bond Delay (ms)
MACHINE SETTINGS
Clamp Home
Wire Pull
Wire Tail
Restart Height
Lift B4 Pull
U/S Feed
U/S Thread
