SPARE PARTS
Part No Description
Manufacturer
Name
Manufacturer
P/N
Rec.
Spare
50042
Spring, Extension, 0.026" Wire x 0.240" OD x 1.50" Long Associated Spring Corp. E0240-026-1500S
1
50056
Pressure Regulating Valve, 5-100 psi Norgren R07-100-RNKA
1
50062
Switch, Push Button, Single Pole Micro Switch 1PB16
1
50063
Switch, Push Button, Power Cutler/Hamer Eaton 205CS94425
1
50068
Ball Bearing, Flanged, Shielded, 3/16" ID x 1/2" OD
New Hampshire Ball
Bearings
SSRF3ZZRA7P25L01
2
50084
Sub-Miniature Hose Barb, #3-56 Thd to 1/16" ID Hose,
Nickel Plate
Clippard 11750-2-ENP
1
50086
Spring, Extension, 0.012" Wire x 0.094" OD x 0.75" Long Associated Spring Corp. E0094-012-0750S
1
50106
Ball Bearing, Flanged, Extended Inner, 5/32" ID x 5/16"
OD
New Hampshire Ball
Bearings
SSRF3ZZRA7P25LO1
1
50111
Ball Bearing, Shielded, Extended Inner, 1/8" ID x 5/16"
OD
New Hampshire Ball
Bearings
SR2-5PPEE
2
50135
Spring, Compression, 0.020" Wire x 0.240" OD x 1/2"
Free Length
Associated Spring Corp. C0240-020-0500S
1
50145
Spring, Extension, 0.016" Wire x 0.120" OD x 0.625"
Long
Associated Spring Corp. E0120-016-0620S
1
50164
Switch, Pushbutton Micro Switch 11SM144
1
50187
Fuseholder, Panel Littelfuse 342001
1
50290
Spring, Compression, 0.012" Wire x 0.088" OD x 0.375"
Free
Associated Spring Corp. C0088-012-0380S
1
50291
Optical Encoder Module Hewlett-Packard HEDS-5605-A06
1
50292
Pulley, Precision Grooved Round Belt, 1.500" OD, 0.250"
Bore
PIC AE7-2
1
50301
Solenoid, Push, 1 Lb Force, Nom. Ledex 195203-134
1
50306
Belt, 0.70" Round Dia. Pulley, 1.489 I.D. PIC AF2-1
1
50338
Cam Follower Assembly, 0.3125" OD, No 2-56 Thd PIC P1-22
1
50364
Power Supply, 250W AC Front End Chassis Mount Vicor Express VI-FKE6-CUX
1
50464
Cord, Power Volex 17239B8
1
50892
LCD Display, P/N: SSM44083-TS-BG-LY-12, with
HDR208SG15 Header
Shelly Associates
SSM44083-TS-BG-LY-
12
1
54015
Linear Bearing, 3mm Dia x 75mm L, Resin Cage, 17
Crossed Rollers, SS
NB
SVS3075-17Z-DS/CU-
SMI
1
WEST•BOND MODEL 454647E SERIES INSTRUCTION MANUAL
114
TECHNICAL INFORMATION

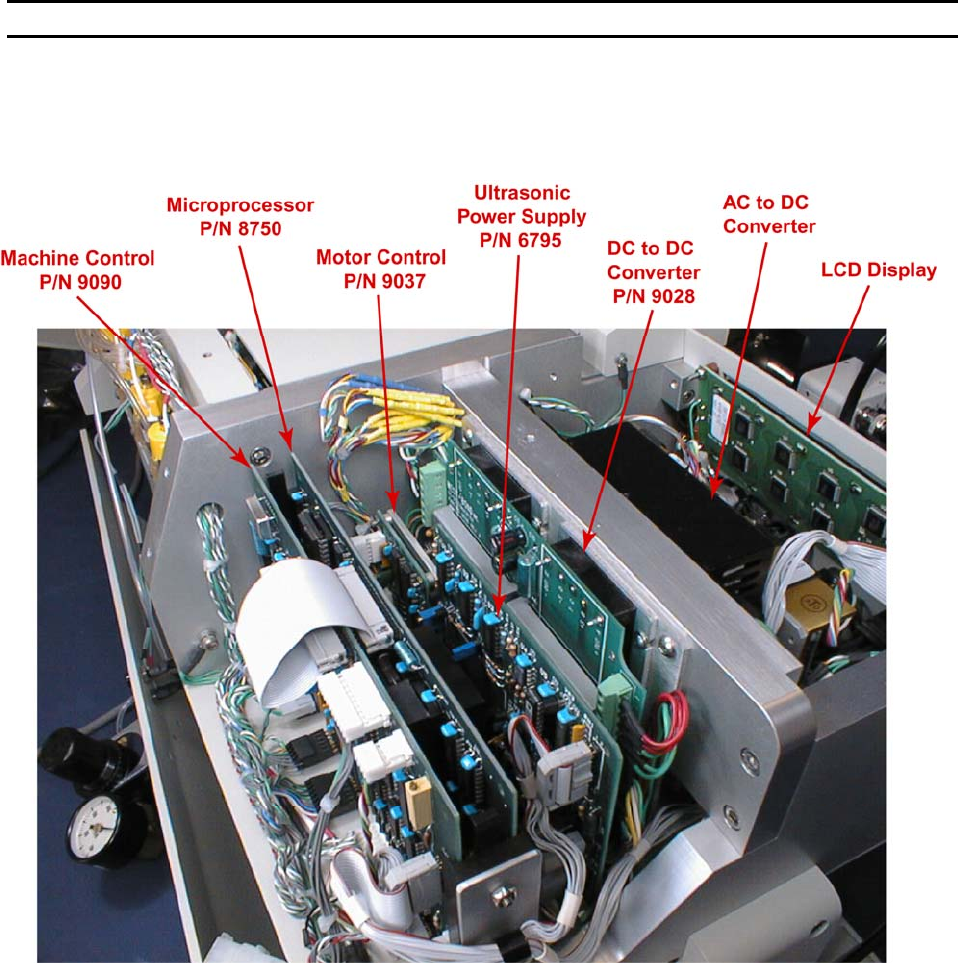

The following pages contain pictures to help the user identify parts and become familiar with the workings
of the machine.

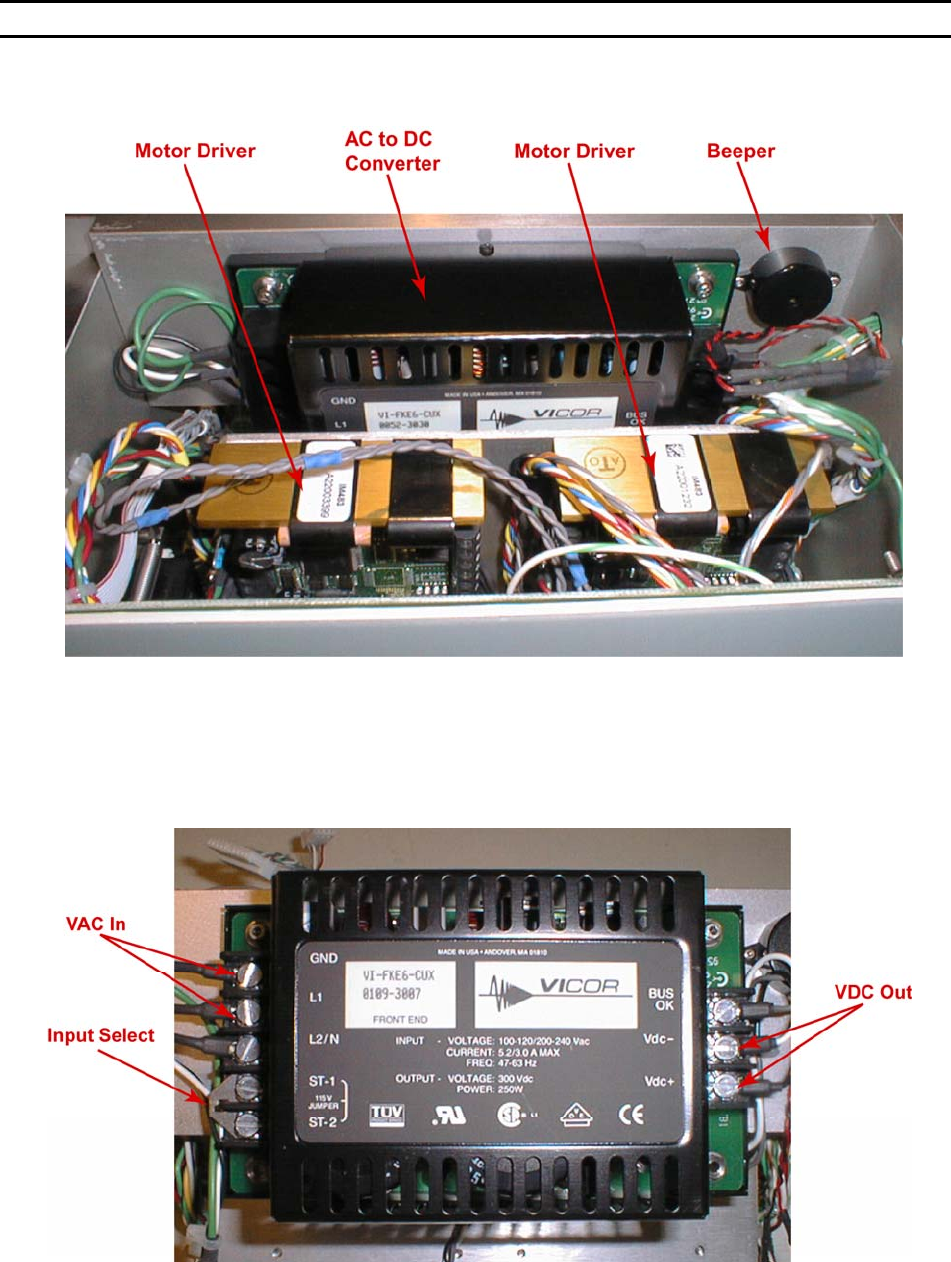

PCB’s and Power Supplies
WEST•BOND MODEL 454647E SERIES INSTRUCTION MANUAL
115
TECHNICAL INFORMATION
Motor Drivers
AC to DC Converter
