WEST•BOND MODEL 454647E SER IES INSTRUCTION MANUAL 62 ADVANCED PROGRAMMING Lift Before Pull F OR 4500E AND 4600E M ODES O NLY To change the selection of this feature press the “5 ” key fo r ON or the “0” key for OFF opti…
WEST•BOND MODEL 454647E SERIES INSTRUCTION MANUAL
61
ADVANCED PROGRAMMING

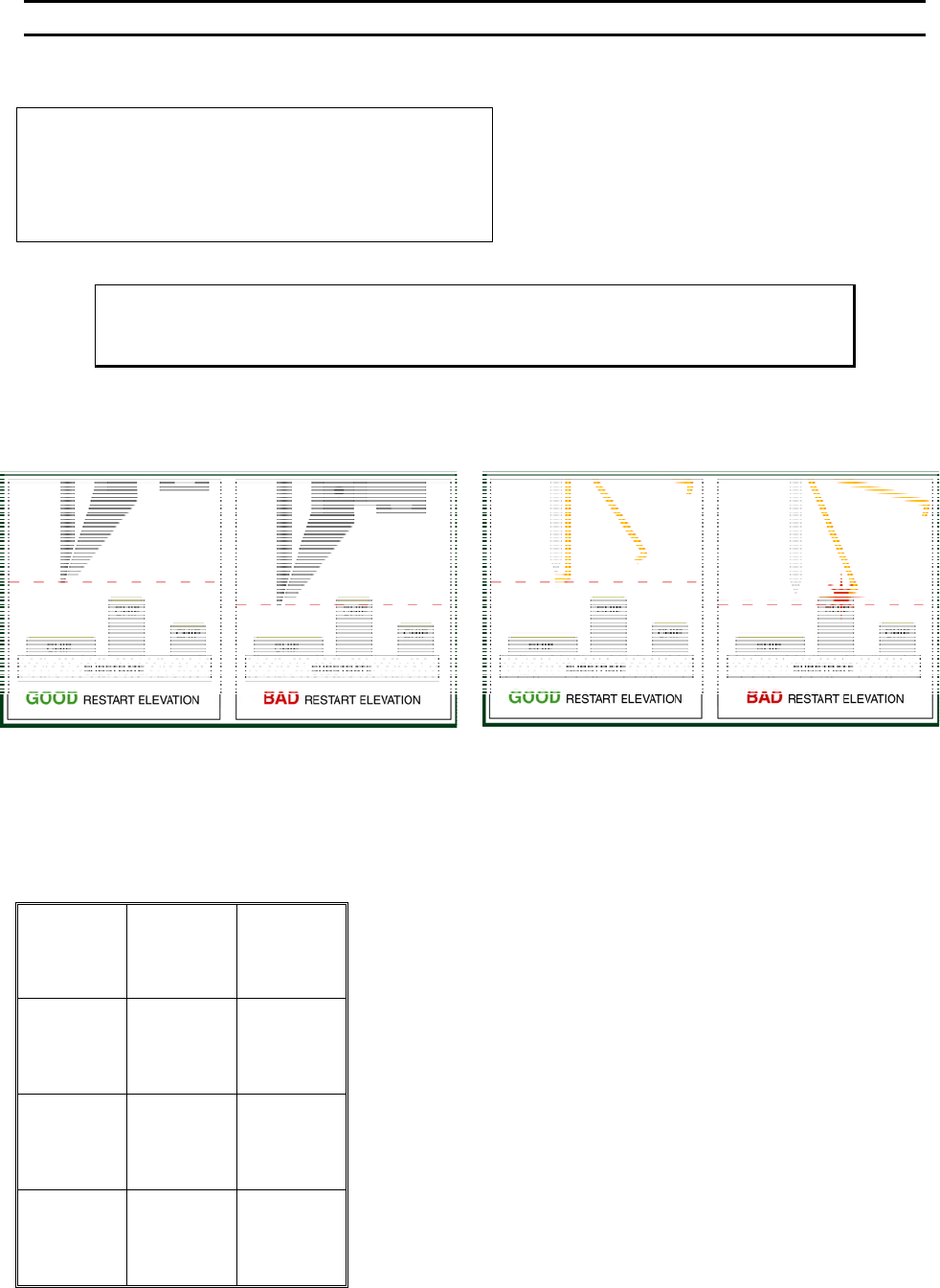

Restart Height
RESTART HEIGHT ELEVATION
Restart Height Elevation: 1400 from top
4=Key in 5=Up (0.29167”)
7=Work height 8=Suggest
A=Prev option 0=Down G=Next option
800 is the suggested elevation for the 4700E
Programmed in Z Motor half-steps from home
7=Work Height Verification (see page 28)
Key Format:
Previous
Menu
1
2
Home
3
Key in
4
↑
Up
5
6
Work height
7
Suggest
8
9
Previous
option
A
↓
Down
0
Next option
G
ϑ To edit “Restart Height Elevation”
From the H
OME menu press 4 (EDIT), 6 (MACHINE), and then 9 (RESTART HT).
WEST•BOND MODEL 454647E SERIES INSTRUCTION MANUAL
62
ADVANCED PROGRAMMING
Lift Before Pull
FOR 4500E AND 4600E MODES ONLY
To change the selection of this feature press the “5” key for ON or the “0” key for OFF option. The
454647E will wait until the Tooling Head has lifted off the terminating bond site before actuating the pull
stroke if this feature is selected to “ON”. The suggested setting is “OFF”. This feature can prove
beneficial for those applications in which the terminating bond is made on delicate or sensitive
components, or for applications with extremely soft wire.
LIFT BEFORE PULL (Display this menu if 45° feed tool is in use.)
Lift Before Pull: Off
5=On
8=Suggest
A=Prev option 0=Off G=Next option
LIFT BEFORE PULL (Display this menu if 90° feed tool is in use.)
Lift Before Pull: 6 (1Z= .0002083”)
4=Key in 5=Up
8=Suggest
A=Prev option 0=Down G=Next option
To edit “Lift Before Pull”
From the H
OME menu press 4 (EDIT), 6 (MACHINE), 0 (MORE OPTIONS), then 4 (LIFT-TO-PULL).
Key Format:
Previous
Menu
1
2
Home
3
4
On
5
6
7
Suggest
8
9
Previous
option
A
Off
0
Next option
G
WEST•BOND MODEL 454647E SERIES INSTRUCTION MANUAL
63
ADVANCED PROGRAMMING
Ultrasonic Power During Feed
The number entered controls the amount of ultrasonic energy applied to the tool during the feeding of the
wire. This ultrasonic energy is critical in assisting vertical feed bonding tools. The 45° tools usually do not
benefit from ultrasonic during feed. If this setting is increased to too high a setting, it may actually shake
the wire out of the tool. If this setting is set so that it exceeds the “Ultrasonic Power during Thread” (see
next page), then the power during thread will be increased to make them equal.
ULTRASONIC POWER DURING FEED
Ultrasonic Power During Feed: 400
4=Key in 5=Increase
8=Suggest
A=Prev option 0=Decrease G=Next option
Normally used only for 90° applications
To edit “Ultrasonic Power During Feed”
F
OR 4500E AND 4600E MODES ONLY
From the H
OME menu press 4 (EDIT), 6 (MACHINE), 0 (MORE OPTIONS), then 5 (U/S FEED)
To edit “Ultrasonic Power During Feed”
F
OR 4700E MODE ONLY
From the H
OME menu press 4 (EDIT), 6 (MACHINE), 0 (MORE OPTIONS), then 4 (U/S FEED)
Key Format:
Previous
Menu
1
2
Home
3
Key in
4
↑
Increase
5
6
7
Suggest
8
9
Previous
option
A
↓
Decrease
0
Next option
G
