1 Introduction User manual Docking station SIPLACE X-Series S / TX

1.1 Overview Edition 02/2018

The main tasks performed by the docking station are as follows:

– Supply of energy to the component trolley and X feeder modules

– Provision of an infrastructure for communication between the pre-setup location PC and the

feeder modules

With the help of the docking station, the operator can perform function tests to the X feeder mod-

ules outside the production environment and can check the setup. There are two rows, each with

four docking stations, connected via the CAN bus of the pre-setup PC. Each docking station has

its own power and compressed air connection.

The COT insert for the docking station can be adjusted to the required PCB conveyor height. The

component trolley is pushed into the docking station for the pre-setup process. The component

trolley slides along the COT insert rails with the roller bearings on its sides, asm far as the energy

and data interface connection. The EDIF in the COT insert unit is positioned precisely in relation

to the changeover table with the feeder module EDIF and fixed in this position with the two hori-

zontal tensioners.The protective panels prevent access to the component trolley rollers, when this

is pushed into the docking station.

User manual Docking station SIPLACE X-Series S / TX 1 Introduction

Edition 02/2018 1.2 Docking station serial number

1.2 Docking station serial number

The docking station serial number is located on the typeplate.

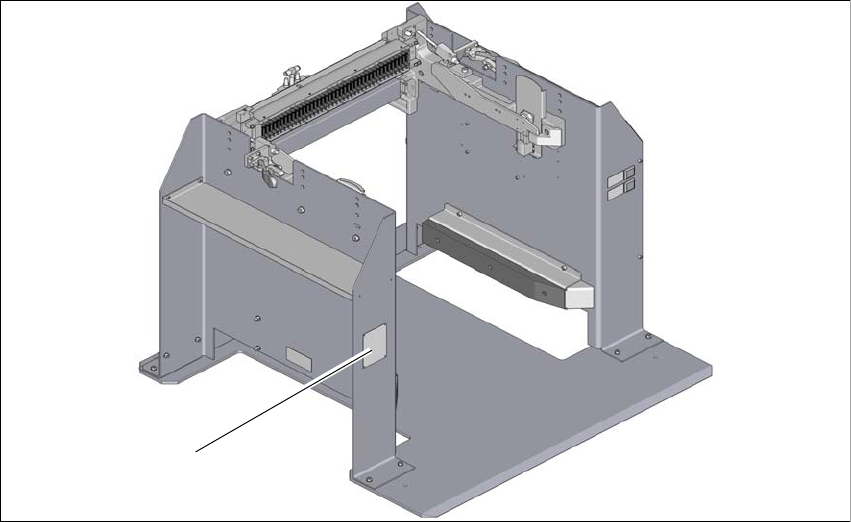

Fig. 1.2 - 1 Position of typeplate

(1) Typeplate

(1)

1 Introduction User manual Docking station SIPLACE X-Series S / TX

1.2 Docking station serial number Edition 02/2018

1.2.1 EC Declaration of conformity

The product described below:

Manufactured by

ASM Assembly Systems GmbH&Co.KG

Rupert-Mayer-Str. 44

81379 Munich 1

conforms to the regulations and standards listed in the EC Declaration of

Conformity provided.

1.2.2 Use as prescribed

The "use as prescribed" is defined as follows:

– The docking station is to be used for external setup of component trolleys with feeder mod-

ules, function tests and setup verification checks.

– The docking station may only be used in the situations prescribed in the catalogs and techni-

cal documentation, in accordance with the printed circuit board and component specifica-

tions. Use for a different or extended purpose is not prescribed.

– The docking station may only be used in conjunction with the third party devices and compo-

nents recommended or approved by the manufacturer and only together with authorized

spare parts. Use for a different or extended purpose is not prescribed.

– The docking station may only be used in accordance with the installation, connection and op-

erating conditions defined in this user manual.

– The docking station may only be connected to the operating voltage if it has been properly

installed and this installation has been inspected.

– The docking station may only be put into operation or operation continued if all required warn-

ing labels are present at the correct points on the machine and are clearly legible.

Product

Docking station

Type Docking station for SIPLACE X-Series S /TX com-

ponent trolley

Item no.: 00116933-xx
