User manual Docking station SIPLACE X-Series S / TX 2 Operational safety
Edition 02/2018 2.2 Waning signals and warning or hazard symbols
61
2

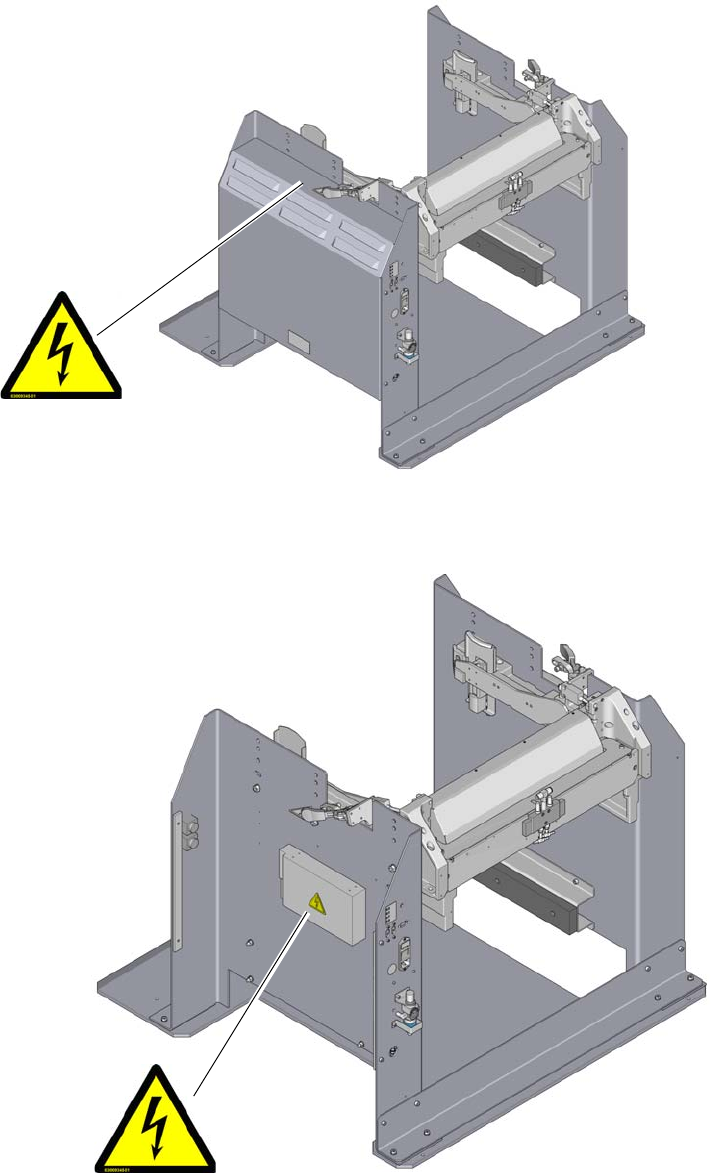

Fig. 2.2 - 2 Warning label W206, item no. 03009345-01 - side cover on docking station
2
Fig. 2.2 - 3 Warning label W206, item no. 03009345-01 - power pack
W 203
W 203
2 Operational safety User manual Docking station SIPLACE X-Series S / TX
2.3 ESD guidelines Edition 02/2018
62
2.2.1.2 Warning label W 203
Item no.: 03009342-01
Position of label: See fig. 2.2 - 5
, page 62 )
Number per machine: 2
2

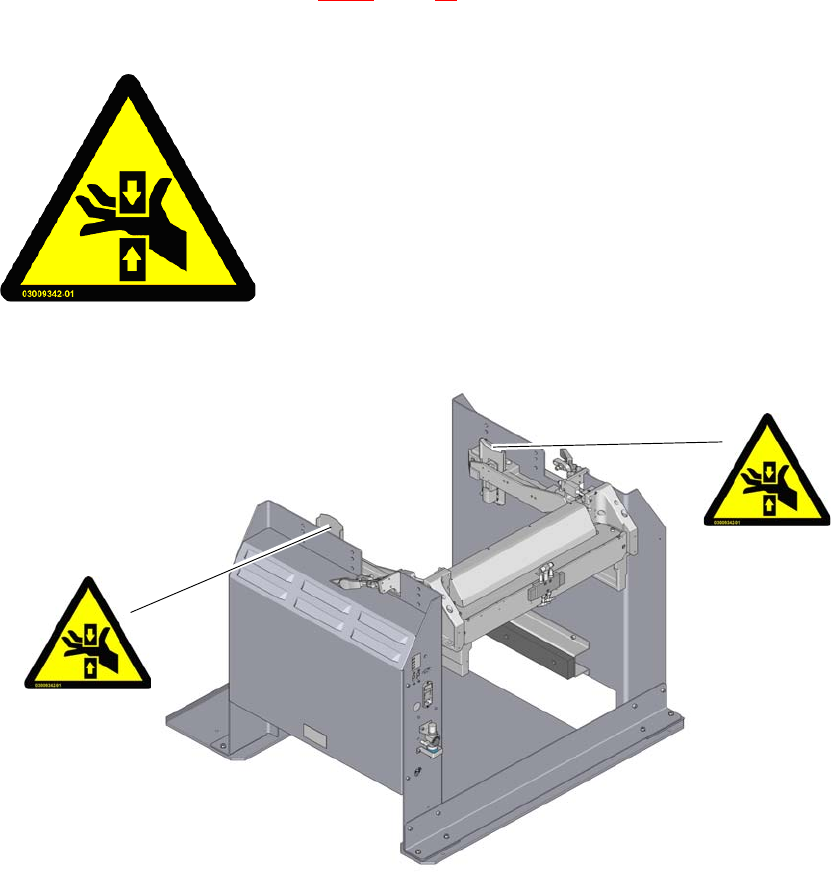

Fig. 2.2 - 4 Warning label W203, item no. 03009342-01
2
Fig. 2.2 - 5 Warning label W203, item no. 03009342-01 - positions of W203
2.3 ESD guidelines
Please observe the instructions about the ESD guidelines specified in the user manual for the
placement machine.
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the machine while it is running!
W 203
W 203
User manual Docking station SIPLACE X-Series S / TX 3 Product description
Edition 02/2018 3.1 Overview
63
3 Product description
Item no. 00116933-01 Docking station for SIPLACE X-Series S /TX
3.1 Overview
3

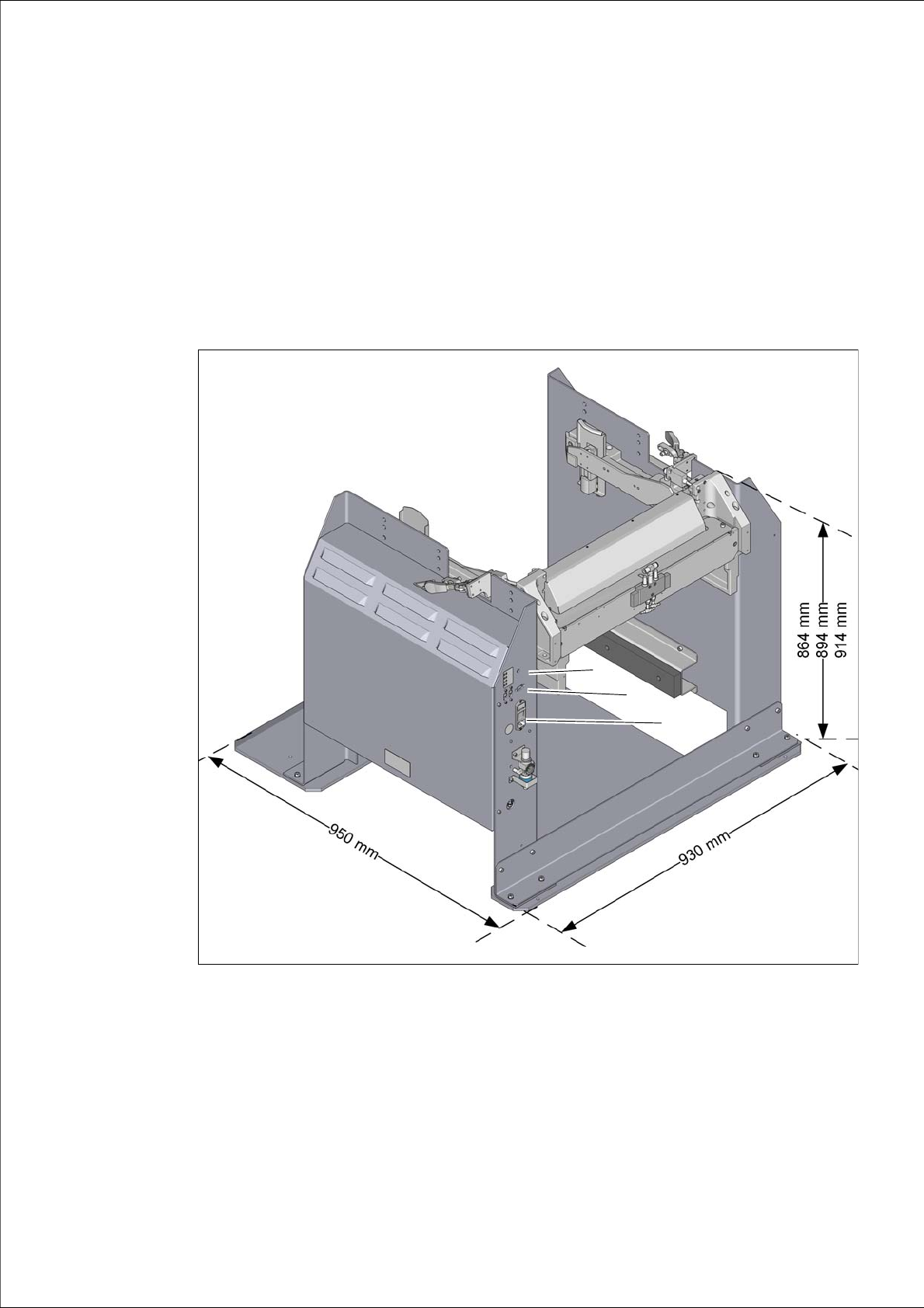

Fig. 3.1 - 1 Docking station - dimensions in millimeters, connection points
(1) Compressed air connection
(2) CAN bus connection
(3) Power supply connection
1
2
3
