User manual Docking station SIPLACE X-Series S / TX 4 Operation
Edition 02/2018 4.3 Docking and undocking the component trolley
73
4.3.1 Docking the component trolley onto the docking station
4
Open the two horizontal tensioners (items 3 and 4 in fig. 4.3 - 1, page 72 ).
Push the component trolley into the docking station.
Press the green button (item 1 in fig. 4.3 - 1, page 72) to lock the component trolley.
– Once the component trolley is locked into place properly, the green button will shine con-
tinuously (component trolley unlocking function).
– If the component trolley is not properly locked into place, the green button will flash.
Close the two horizontal tensioners (items 3 and 4 in fig. 4.3 - 1, page 72 ).
4.3.2 Undocking the component trolley from the docking station
4
In order to unlock the component trolley, the feeder modules must be locked into place.
Make sure that the green button (item 1 in fig. 4.3 - 1
, page 72) shines.
Open the two horizontal tensioners (items 3 and 4 in fig. 4.3 - 1, page 72 ).
Press the green button (item 1 in fig. 4.3 - 1, page 72 ). The component trolley will be re-
leased.
Pull the component trolley back and out of the docking station.
WARNING
Risk of injury to hands!
While docking, do not reach into the areas between component trolley and docking sta-
tion.
WARNING
Risk of injury to hands!
While docking, do not reach into the areas between component trolley and docking sta-
tion.
4 Operation User manual Docking station SIPLACE X-Series S / TX
4.4 Tearing down feeder modules Edition 02/2018
74
4.4 Tearing down feeder modules
To avoid unthreading the tapes manually before teardown, use the black button (item 2 in fig. 4.3
- 1, page 72). The tapes are moved back and out of the docking station.
4
Cut the cover foil for the feeder modules which you want to tear down.
Press the black "teardown feeder modules" button (item 2 in fig. 4.3 - 1, page 72 ).
– Those tapes for which the cover foil has been cut will be moved back and out of the docking
station. The feeder modules can now be removed.
PLEASE NOTE
Cutting the cover foil
Only those component tapes move back and out, which have had their cover foil cut be-
forehand.
User manual Docking station SIPLACE X-Series S / TX 5 Maintenance and service
Edition 02/2018 5.1 Compressed air connection
75
5 Maintenance and service
The docking station is almost maintenance-free. Only the following tasks need to be done.
5.1 Compressed air connection
Check the correct setting of the manometer at least once a week. The possible settings can be
found in the technical data.
At the same time, check the condensation tank underneath the manometer. Empty it if water has
collected there. Since the formation of condensation depends greatly on the quality of the com-
pressed air, this interval may need to be shortened or even extended.
After starting with a weekly check, set the interval according to your needs.
5

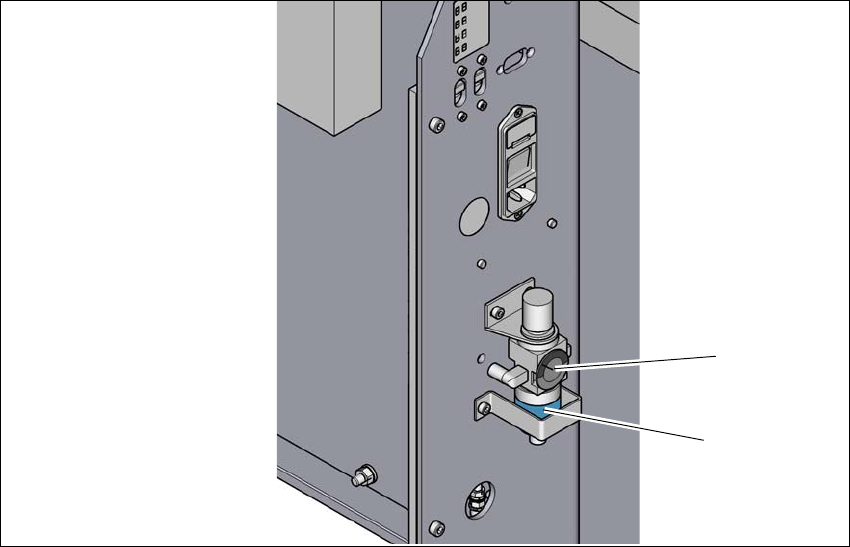

Fig. 5.1 - 1 Compressed air connection
(1) Manometer
(2) Condensation tank
2
1
