UPS 8 – 15 kV A, 230V 50/60 Hz output User ’ s Guide 1 022403 Revision D 1 9 Figure 20. Wiring diagram of UPS ST -model (1-ph rectifier).
UPS 8 – 15 kVA, 230V 50/60 Hz output
User’s Guide
1022403
Revision D
18
Figure 18. Wiring diagram of UPS S-model (1-ph rectifier) with integral MBS.
Figure 19. Wiring diagram of UPS S-model (1-ph rectifier).
UPS 8 – 15 kVA, 230V 50/60 Hz output
User’s Guide
1022403
Revision D
19
Figure 20. Wiring diagram of UPS ST-model (1-ph rectifier).
UPS 8 – 15 kVA, 230V 50/60 Hz output
User’s Guide
1022403
Revision D
20

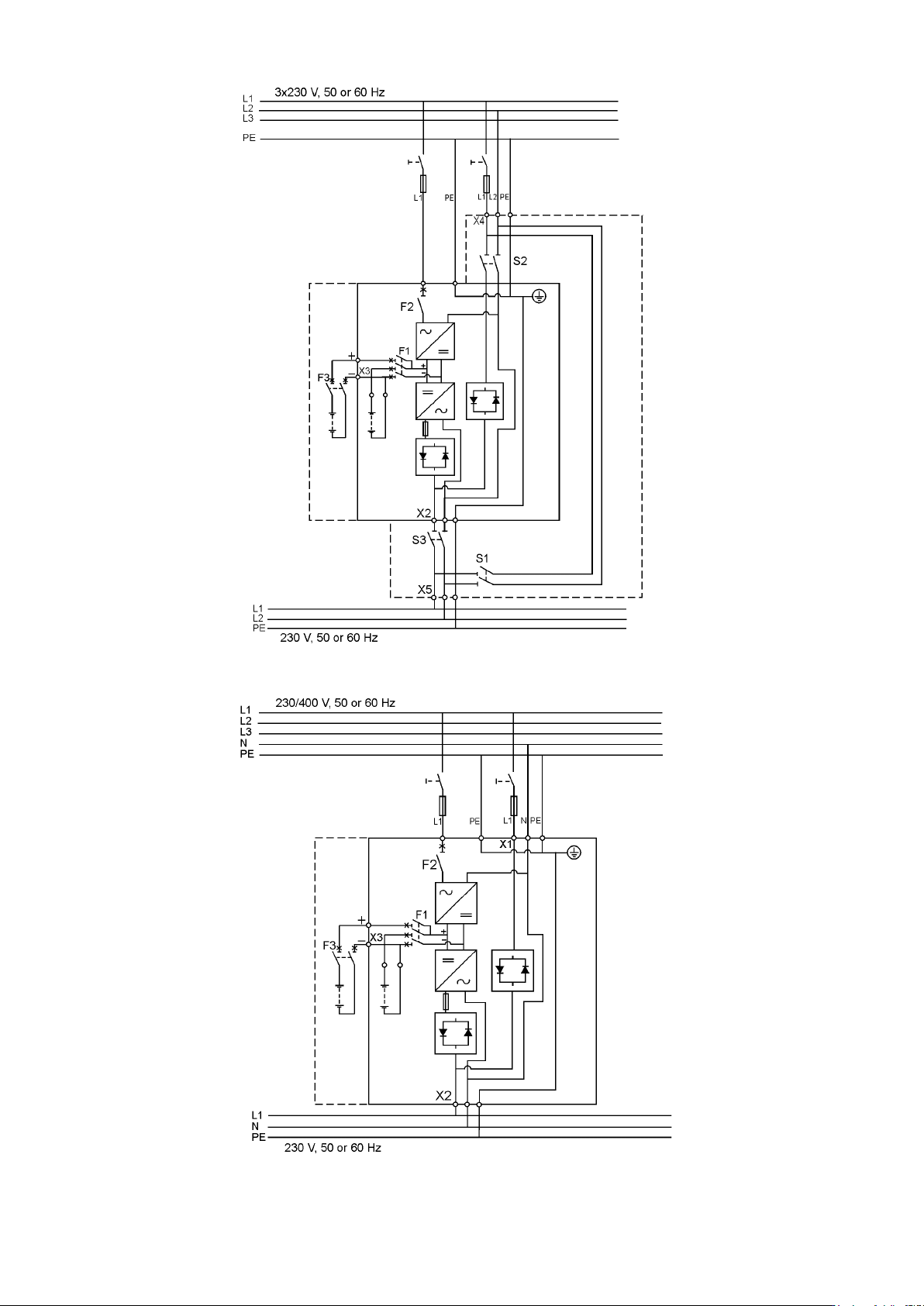

Figure 21. Wiring diagram of UPS S-model (1-ph rectifier) with integral MBS, (Norway)
Figure 22. Wiring diagram of UPS S-model (1-ph rectifier), (Norway)
Note!
Site wiring fault must be
disabled from LCD
User Settings menu.
Note!
Site wiring fault must be
disabled from LCD
User Settings menu.
