WES7 / Win10 - Installation Manual 04/2019 Edition
3
Contents
1 Overview 5
2 Scope of Delivery 6
3 Prerequisites for Installation 8
3.1 Hardware Components of the Computer System for the Station / Coplan /
BulkFeeder X Computer ...................................................................................... 8
4 Installation 12
4.1 Overview ............................................................................................................ 12
4.2 BIOS Update/Settings ........................................................................................ 13
4.2.1 BIOS Settings for SIMATIC BoxPCs 627B / 827B ............................................. 13
4.2.2 BIOS Settings for SIMATIC BoxPCs 627C / 827C ............................................ 14
4.2.3 BIOS Settings for SIMATIC BoxPC 627D / 827D .............................................. 14
4.2.4 BIOS Settings for iBASE PCs ............................................................................ 14
4.2.5 BIOS Settings for SIMATIC MicroBox 427D ...................................................... 14
4.3 Installing the Operating System ......................................................................... 15
4.3.1 Installing from DVD (WES7) .............................................................................. 15
4.3.2 Installing from USB Stick (WES7, Win10) .......................................................... 15
4.3.3 Choosing the Computer Configuration with the SIPLACE Configurator ............ 18
5 Installing and Calibrating the Touch Screen 22
WES7 / Win10 - Installation Manual 04/2019 Edition
5
1 Overview
This installation manual provides instructions on installing the Windows Embedded Standard 7
(WES7) or Windows 10 IoT (Win10) operating systems on the station computer and, if applicable
on other computers (e.g. Coplan computer: 3D Coplanarity Module option). It contains information
on the scope of delivery and requirements for successful installation.
As of the 707 and 605.04 station software versions, WES7 is supported in all machine
configurations. As of station software version 712.0, Win10 can be used on the SIPLACE SX V2-
series placement machines. As of station software version 712.1, Win10 can also be used on the
SIPLACE TX- and X S-series placement machine with SIMATIC MicroBox 427D station computers.
The following computer types are supported:
– SIMATIC BoxPC 627B/827B (WES7)
– SIMATIC BoxPC 627C/827C (WES7)
– SIMATIC BoxPC 627D/827D (WES7)
– SIMATIC MicroBox 427D (WES7, Win10)
– iBASE ABP 102-A (WES7)
– iBASE ABP 402-A (WES7)

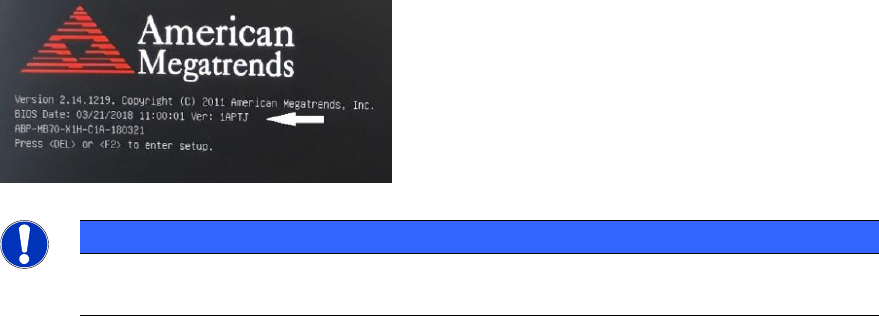

– iBASE ABP 402-A (WES7, Win10); Win10 is only available on iBASE computers with functional
status [-04] or higher, e.g. [03120423-04] (BIOS Date: 03/21/2018 or newer).
NOTICE
As of the 708 and 605.04 station software versions, the Windows XP operating system is
not supported on the station / Coplan computer anymore.
