PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 7 ﾍｯﾄﾞ駆動部( ﾍｯﾄﾞ下部ﾕﾆｯﾄ 部) HEAD DRIVIN G SECT.(HEAD U NDER UNIT SE CT.) 部 品 名 品 番 個数 備 考 R 1 R 2 1 1081111100 UNDER UNIT ｶﾌ ﾞﾕﾆｯﾄ 1 103 108111110310 DUCT FRAME ﾀﾞｸﾄﾎﾝﾀｲ…

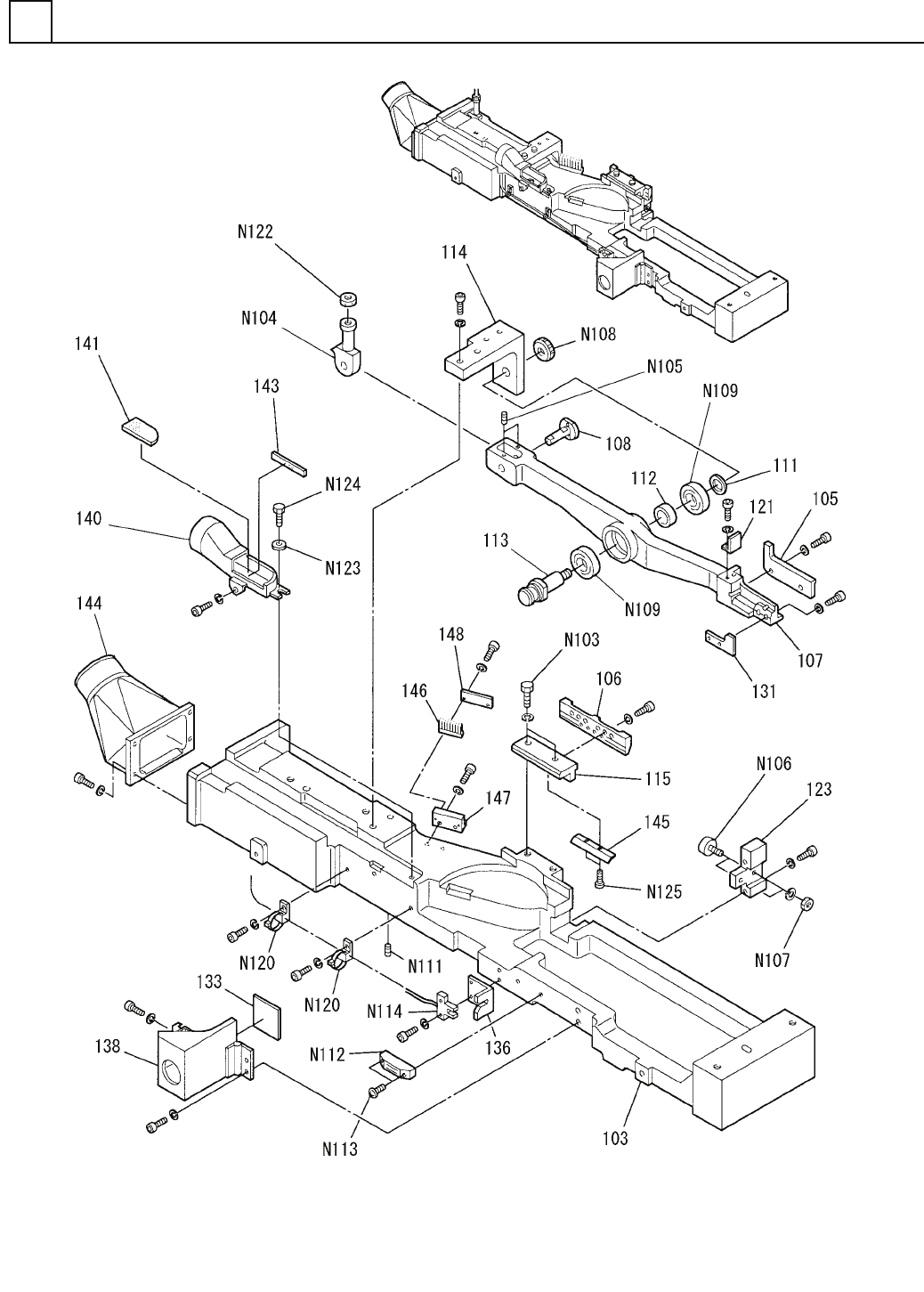

ﾍｯﾄﾞ駆動部(ﾍｯﾄﾞ下部ﾕﾆｯﾄ部)
HEAD DRIVING SECT.(HEAD UNDER UNIT SECT.)
7
F10811-11-100-AN
M101
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
ﾍｯﾄﾞ駆動部(ﾍｯﾄﾞ下部ﾕﾆｯﾄ部)
HEAD DRIVING SECT.(HEAD UNDER UNIT SECT.)
部 品 名 品 番 個数
備 考
R
1
R
2
1 1081111100
UNDER UNIT ｶﾌ
ﾞﾕﾆｯﾄ
1
103 108111110310
DUCT FRAME ﾀﾞｸﾄﾎﾝﾀｲ
1
105 108111110504
BLADE(UNDER) ﾌﾞﾚｰﾄﾞ(UNDER)
1106 108111110603
BLADE(UPPER) ﾌﾞ
ﾚｰﾄﾞ(UPPER)
1107 108111110701
LEVER ﾚﾊ
ﾞｰ
1
108 108111110802
PIN ﾋﾟﾝ
1
111 108111111101
COLLAR ｶﾗｰ
1112 108111111201
COLLAR ｶﾗｰ
1113 108111111301
SHAFT ｼｬﾌﾄ
1
114 108111111402
BRACKET ﾌﾞﾗｹｯﾄ
1115 108111111504
BLOCK ﾌﾞﾛｯｸ
1121 108111112101
COVER ｶﾊ
ﾞｰ
1
123 108111112301
BLOCK ﾌﾞﾛｯｸ
1
131 108111113103
PLATE(GUIDE) ﾌﾟﾚｰﾄ(ｶﾞｲﾄﾞ)
1133 108111113301
COVER ｶﾊﾞｰ
1136 1081111136
COVER ｶﾊ
ﾞｰ
1
138 1081111138
DUCT BOX ﾀﾞｸﾄﾎﾞｯｸｽ
1
140 108111114001
DUCT ﾀﾞｸﾄ
1141 1081111141
SHEET ｼｰﾄ
1143 1081111143
SHEET ｼｰﾄ
1
144 1081111144
DUCT ﾀﾞｸﾄ
1
145 1081111145
COVER ｶﾊﾞｰ
1146 1081178035
BRUSH ﾌ
ﾞﾗｼ
1147 1081178130
BLOCK ﾌ
ﾞﾛｯｸ
1
148 1081178131
BLOCK ﾌﾞﾛｯｸ
M6X20,STEEL,Z.C.T,4T
2
N103
XVG6B20FY4
HEXAGON HEAD BOLT ﾛｯｶｸﾎﾞﾙﾄ
PBRL10FN
1
N104
N533PBRL10FN
ROD END ﾛｯﾄ
ﾞｴﾝﾄﾞ
M4X6,STEEL,Z.C.T
2
N105
XXE4C6FY
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
CFES6-28WBUURE01
2
N106
N532CFES-016
CAM FOLLOWER ｶﾑﾌｫﾛｱ
M6,1-TYPE,STEEL,Z.C.T
2
N107
XNG6AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
FU00SS
1
N108
XNRNFU00SS
LOCK-NUT ﾛｯｸﾅｯﾄ
6003ZZC2P6
2
N109
XLCN6003-151
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M6X12,STEEL,Z.C.T
1
N111
XXE6D12FY
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾝﾂｷﾄﾒﾈｼﾞ
C-91-3,BLACK
1
N112
N980C913K
MAGNETIC CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ
M3X8,+,STEEL,Z.C.T
2
N113
XSN3+8FY
PAN HEAD SCREW ﾅﾍﾞ
ｺﾈｼﾞ
P923S1
1
N114
N310P923S1
SENSOR ｾﾝｻ
TA1S8
2
N120
N348TA1S8
FIXTURE ｺﾃｲｸﾞ
M10,1-TYPE,STEEL,Z.C.
1
N122
XNHN10AFYL
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
FWASM-D6-V4-T1.4
1
N123
N986FWAS-S96
WASHER ｻﾞ
ｶﾞﾈ
M4X6,STEEL,Z.C.T,4T
1
N124
XVG4A6FY4
HEXAGON HEAD BOLT ﾛｯｶｸﾎﾞﾙﾄ
M3X6
2
N125
N986YYYY-R37
BOLT ﾎﾞﾙﾄ
M102
F10811-11-100-AN

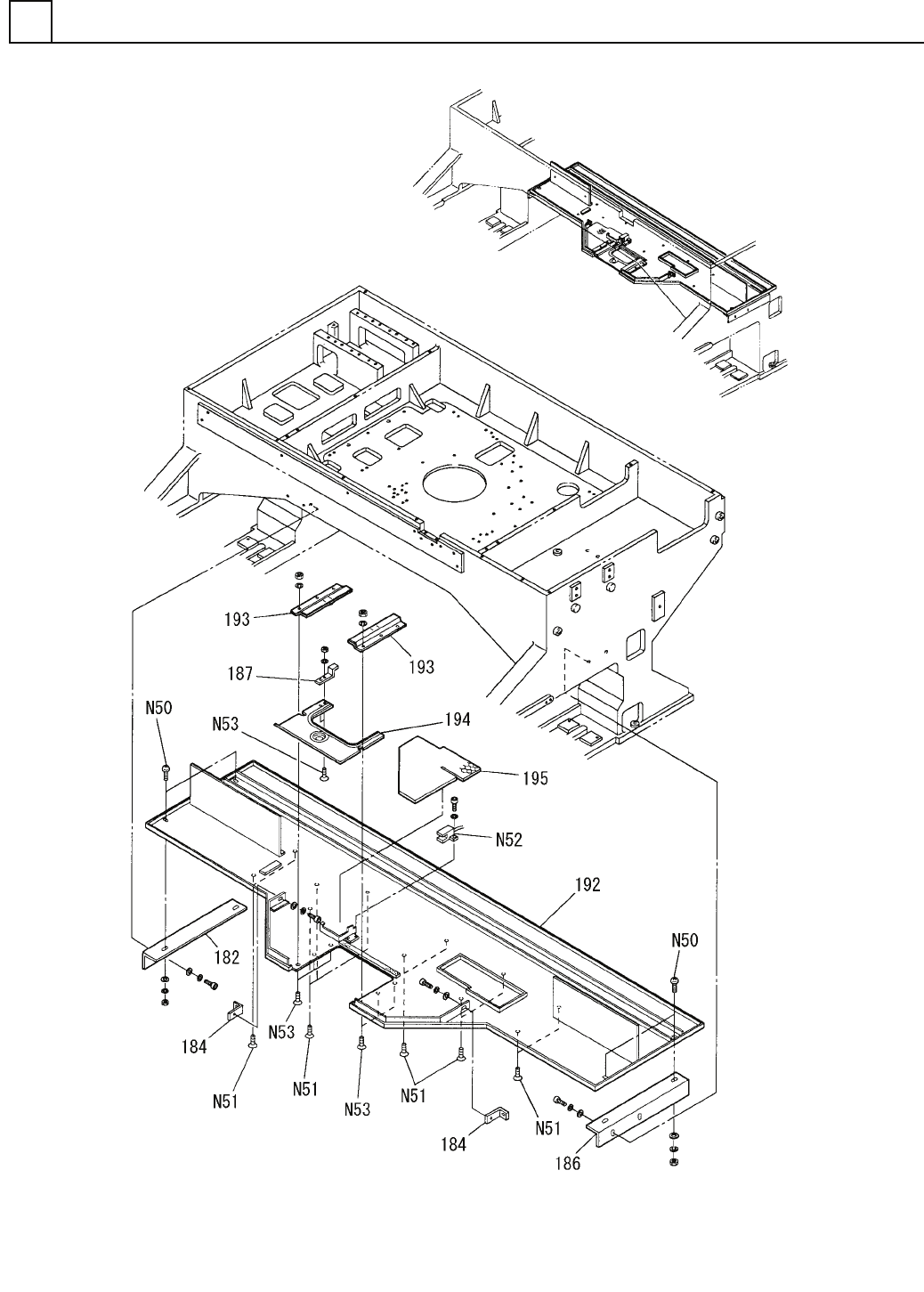

ﾍｯﾄﾞ駆動部(ﾍｯﾄﾞ下部ｶﾊﾞｰ部)
HEAD DRIVING SECT.(HEAD UNDER COVER SECT.)
7
F10811-11-180-AG
M103
