ﾍｯﾄﾞ 駆動部(上部 駆動部3) HEAD DRIVIN G SECT.(UPPER DRIVING SECT .-3) 7 F10811-14-200-AP-3 M111
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
ﾍｯﾄﾞ駆動部(上部駆動部2)
HEAD DRIVING SECT.(UPPER DRIVING SECT.-2)
部 品 名 品 番 個数
備 考
R
1
R
2
1224 108111422404
LEVER ﾚﾊ
ﾞｰ
1
225 108111422502
LEVER ﾚﾊﾞｰ
1
226 108111422603
COLLAR ｶﾗｰ
1227 108111422701
FLANGE ﾌﾗﾝｼ
ﾞ
2242 108111424201
PIN ﾋ
ﾟﾝ
1
244 108111424401
ROD ﾛｯﾄﾞ
4
271 108111427101
FLANGE ﾌﾗﾝｼﾞ
2304 108111430401
PIN ﾋ
ﾟﾝ
2305 108111430501
PIN ﾋ
ﾟﾝ
1
307 108111430702
ROD ﾛｯﾄﾞ
1308 108111430802
ROD ﾛｯﾄﾞ
1312 1081114312
SOCKET ｿｹｯﾄ
1
327 108111432701
SHAFT ｼｬﾌﾄ
2
336 1081114336
SOCKET ｿｹｯﾄ
1338 1081114338
LINK ﾘﾝｸ
FU02SS
1
N205
XNRNFU02SS
LOCK-NUT ﾛｯｸﾅｯﾄ
FU00SS
2
N208
XNRNFU00SS
LOCK-NUT ﾛｯｸﾅｯﾄ
M4X6,STEEL,Z.C.T
4
N210
XXE4C6FY
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M8,3-TYPE,STEEL,Z.C.T
2
N211
XNG8CFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
FBD17-29SN24T1XVVCG6*
2
N218
XLLNFBD1-120
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
M10.1-TYPE,STEEL,Z.C.
7
N231
XNH10AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
NART153519VRE01
2
N232
N532NART-018
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
M10,1-TYPE,STEEL,Z.C.
1
N233
XNHN10AFYL
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
1AP21
1
N238
N5541AP21
O-RING O
ﾘﾝｸﾞ
CO0512P2
2
N239
N554C00512P2
O-RING O ﾘﾝｸﾞ
M6X16,STEEL,Z.C.T
2
N247
XXE6C16FY
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
NART103015WUURE01
2
N253
N532NART-019
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
M3X5,STEEL,Z.C.T
1
N261
XXE3C5FY
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
EF501002R
2
N262
N533EF50-034
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
PB107
3
N263
N560PB10-081
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ
TNTR6-0.75-2
2
N264
N986TNTR-T94
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5,3-TYPE,STEEL,Z.C.T
1
N271
XNG5CFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
MRRD10-201
1
N272
N510005561AA
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
M110
F10811-14-200-AP-2
ﾍｯﾄﾞ駆動部(上部駆動部3)

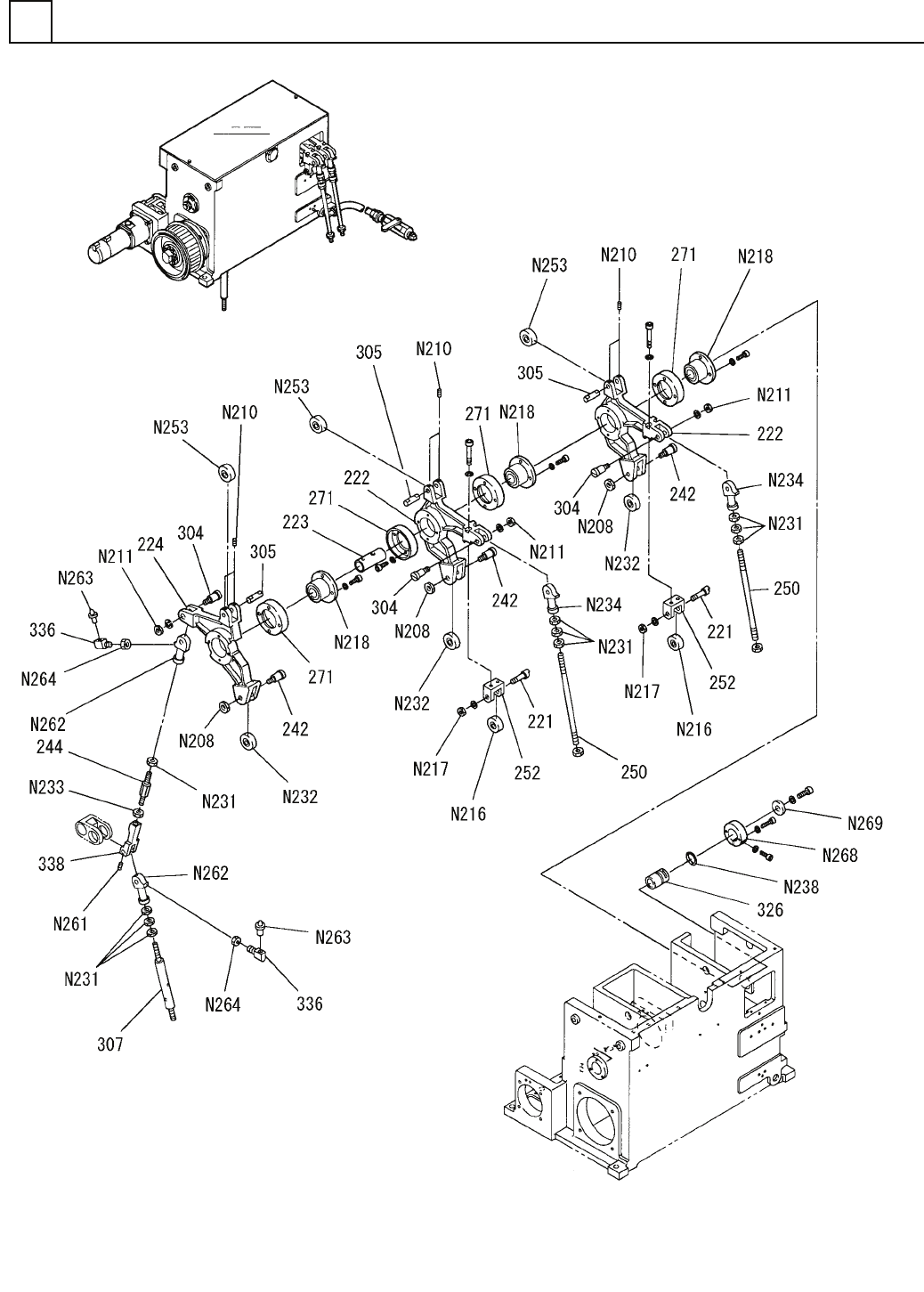

HEAD DRIVING SECT.(UPPER DRIVING SECT.-3)
7
F10811-14-200-AP-3
M111
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
ﾍｯﾄﾞ駆動部(上部駆動部3)
HEAD DRIVING SECT.(UPPER DRIVING SECT.-3)
部 品 名 品 番 個数
備 考
R
1
R
2
2221 108111422101
PIN ﾋ
ﾟﾝ
2
222 108111422205
LEVER ﾚﾊﾞｰ
1
223 108111422303
COLLAR ｶﾗｰ
1224 108111422404
LEVER ﾚﾊ
ﾞｰ
3242 108111424201
PIN ﾋ
ﾟﾝ
1
244 108111424401
ROD ﾛｯﾄﾞ
2
250 108111425003
ROD ﾛｯﾄﾞ
2252 108111425201
BLOCK ﾌ
ﾞﾛｯｸ
4271 108111427101
FLANGE ﾌﾗﾝｼ
ﾞ
3
304 108111430401
PIN ﾋﾟﾝ
3305 108111430501
PIN ﾋﾟﾝ
1307 108111430702
ROD ﾛｯﾄ
ﾞ
1
326 108111432601
COLLAR ｶﾗｰ
2
336 1081114336
SOCKET ｿｹｯﾄ
1338 1081114338
LINK ﾘﾝｸ
FU00SS
3
N208
XNRNFU00SS
LOCK-NUT ﾛｯｸﾅｯﾄ
M4X6,STEEL,Z.C.T
6
N210
XXE4C6FY
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M8,3-TYPE,STEEL,Z.C.T
3
N211
XNG8CFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
NART61912WUURE02
2
N216
N532NART-017
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
M6,3-TYPE,STEEL,Z.C.T
2
N217
XNG6CFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
FBD17-29SN24T1XVVCG6*
3
N218
XLLNFBD1-120
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M10.1-TYPE,STEEL,Z.C.
10
N231
XNH10AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
NART153519VRE01
3
N232
N532NART-018
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
M10,1-TYPE,STEEL,Z.C.
1
N233
XNHN10AFYL
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
PBR10FN
2
N234
N533PBR10FN
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
1AP21
1
N238
N5541AP21
O-RING O ﾘﾝｸﾞ
NART103015WUURE01
3
N253
N532NART-019
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
M3X5,STEEL,Z.C.T
1
N261
XXE3C5FY
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
EF501002R
2
N262
N533EF50-034
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
PB107
2
N263
N560PB10-081
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ
TNTR6-0.75-2
2
N264
N986TNTR-T94
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
SCSM25-12
1
N268
N560SCSM2512
COLLAR ｾｯﾄｶﾗｰ
R10-22
1
N269
N560R1022
WASHER ｻﾞｶﾞﾈ
M112
F10811-14-200-AP-3
