HT121 (Mechanical20111025) - 第136页
ﾍｯﾄﾞ 駆動部(上部 駆動部5) HEAD DRIVIN G SECT.(UPPER DRIVING SECT .-5) 7 F10811-14-200-AP-5 M115
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
ﾍｯﾄﾞ駆動部(上部駆動部4)
HEAD DRIVING SECT.(UPPER DRIVING SECT.-4)
部 品 名 品 番 個数
備 考
R
1
R
2
2209 108111420902
SHAFT ｼｬﾌﾄ
2
210 108111421001
COLLAR ｶﾗｰ
2
211 108111421101
COLLAR ｶﾗｰ
2212 1081114212
LEVER ﾚﾊ
ﾞｰ
2213 108111421302
SHAFT ｼｬﾌﾄ
1
216 108111421601
SHAFT ｼｬﾌﾄ
4
219 1044317020
COLLAR ｶﾗｰ
2264 108111426401
SHAFT ｼｬﾌﾄ
1274 108111427403
HOLDER ﾎﾙﾀ
ﾞ
1
275 108111427503
HOLDER ﾎﾙﾀﾞ
1332 108111433201
PLATE ﾌﾟﾚｰﾄ
1333 108111433301
PLATE ﾌ
ﾟﾚｰﾄ
1
335 108111433501
BRACKET ﾌﾞﾗｹｯﾄ
1
339 1081114339
BRACKET ﾌﾞﾗｹｯﾄ
1340 1081178953
BLOCK ﾌﾞﾛｯｸ
HPG-20A-11-F0GDK
2
N204
N624HPG2-062
REDUCTION GEAR ｹ
ﾞﾝｿｸｷ
FU02SS
2
N205
XNRNFU02SS
LOCK-NUT ﾛｯｸﾅｯﾄ
NAG4902UUP6
4
N206
XLHNNAG4-004
BEARING ﾍﾞｱﾘﾝｸﾞ
6000ZZNRC2P6
4
N207
XLCN6000-064
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
FU00SS
2
N208
XNRNFU00SS
LOCK-NUT ﾛｯｸﾅｯﾄ
6202ZZC2P6
2
N209
XLCN6202-152
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M4X6,STEEL,Z.C.T
2
N210
XXE4C6FY
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
P914SC1
1
N236
N310P914SC1
SENSOR ｾﾝｻ
P914SA1
1
N237
N310P914SA1
SENSOR ｾﾝｻ
P914SB1
1
N251
N310P914SB1
SENSOR ｾﾝｻ
P914S1
1
N252
N310P914S1
SENSOR ｾﾝｻ
M4X6,+,STEEL,Z.C.T
2
N265
XST4+6FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
SWL18-45
2
N266
N986SWL1845
SPRING ﾊﾞﾈ
MSM042AJA S
1
V 1 3081147931
MOTOR ﾓｰﾀ
MSM042AJA S
1V 2 3081146931
MOTOR ﾓｰﾀ
M114
F10811-14-200-AP-4
ﾍｯﾄﾞ駆動部(上部駆動部5)
HEAD DRIVING SECT.(UPPER DRIVING SECT.-5)
7
F10811-14-200-AP-5
M115
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7

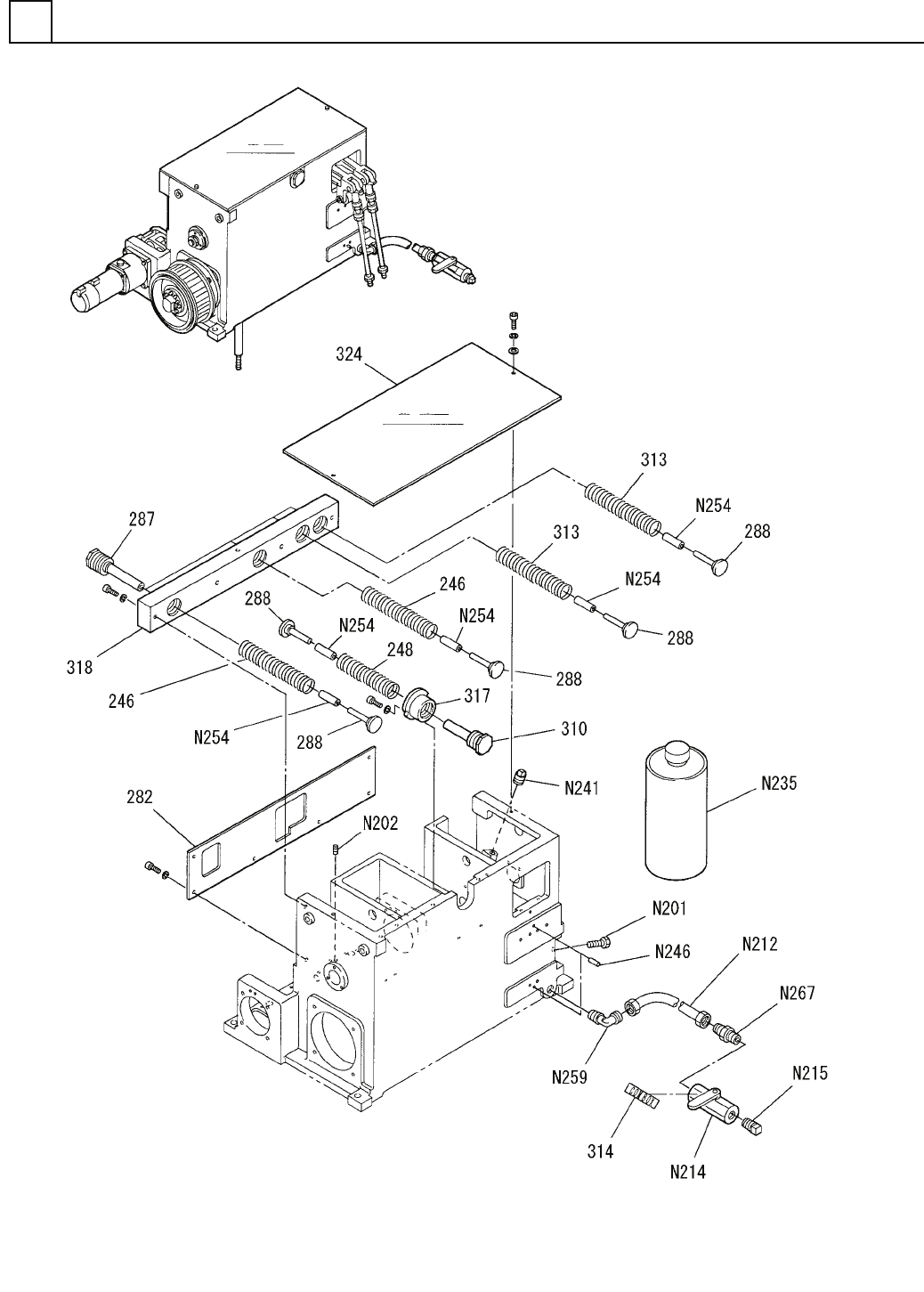

ﾍｯﾄﾞ駆動部(上部駆動部5)
HEAD DRIVING SECT.(UPPER DRIVING SECT.-5)
部 品 名 品 番 個数
備 考
R
1
R
2
2246 108111424601
SPRING ﾊ
ﾞﾈ
1
248 1081114248
SPRING ﾊﾞﾈ
1
282 108111428202
PLATE ﾌﾟﾚｰﾄ
4287 108111428702
ROD ﾛｯﾄ
ﾞ
5288 108111428802
ROD ﾛｯﾄ
ﾞ
1
310 108111431001
ROD ﾛｯﾄﾞ
2
313 1081114313
SPRING ﾊﾞﾈ
1314 1081114314
LABEL ﾗﾍ
ﾞﾙ
1317 108111431701
BLOCK ﾌﾞﾛｯｸ
1
318 108111431802
PLATE ﾌﾟﾚｰﾄ
1324 1081114324
COVER ｶﾊﾞｰ
CD-12
1
N201
N984CD12
SCREW ﾈｼ
ﾞ
M6X12,STEEL,Z.C.T
1
N202
XXE6A12FY
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
30-12,CLEAR
1
N212
N4343012T
TUBE ﾁｭｰﾌﾞ
UBV-14D
1
N214
N413UBV14D
VALVE ﾊﾞﾙﾌﾞ
JKP-1/2
1
N215
N433JKP04
PLUG ﾌ
ﾟﾗｸﾞ
22020L
1
N235
N990YYYY-032
OIL ｵｲﾙ
JKP-3/4
1
N241
N433JKP06
PLUG ﾌﾟﾗｸﾞ
5X10,m6A,STEEL
2
N246
XPJ5A10FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
B-S8-296
5
N254
N520BS8296
BUSHING ﾌﾞ
ｯｼﾝｸﾞ
PL-12X8-PT1/2-BS
1
N259
N431PL12-470
FITTING ｴﾙﾎﾞ
PN-12X8-PT1/2-BS
1
N267
N431PN12-471
FITTING ﾆｯﾌﾟﾙ
M116
F10811-14-200-AP-5
