ﾍｯﾄﾞ駆動部( ｲﾝﾃﾞｯｸｽｵｲﾙｸｰﾗ 部) HEAD DRIVIN G SECT.(INDEX OIL COOLER S ECT.) 7 F10811-24-200-AF M131

100%1 / 220
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
　　　　　　　　　 PART NAME
　　　 REMARKS　
Q'TY
7
ﾍｯﾄﾞ駆動部(後部ｾﾝｻ部)
HEAD DRIVING SECT.(REAR SENSOR SECT.)
部 品 名 品　 番 個数
備 考
R
1
R
2
1 1081122000
SENSOR UNIT ｾﾝｻﾕﾆｯﾄ
4
1 1042721039
BOLT(STOPPER) ﾎﾞﾙﾄ(ｽﾄｯﾊﾟ)
1
5 108112200501
PIN ﾋﾟﾝ
28 1081122008
SPRING ﾊ
ﾞﾈ
110 108112201003
PLATE ﾌﾟﾚｰﾄ
1
11 108112201102
STAND ｽﾀﾝﾄﾞ
1
13 108112201301
BRACKET ﾌﾞﾗｹｯﾄ
114 108112201401
HOLDER ﾎﾙﾀ
ﾞ
115 108112201501
HOLDER ﾎﾙﾀ
ﾞ
1
16 1081122016
HOLDER ﾎﾙﾀﾞ
117 1081122017
BRACKET ﾌﾞﾗｹｯﾄ
118 1081122018
DOG ﾄ
ﾞｸﾞ
1
19 1081122019
LEVER ﾚﾊﾞｰ
P916C-S1720
4
N 3 N310P916-005
SENSOR ｾﾝｻ
E32-T14L
1N 6 N310E32T14L
OPTICAL FIBER CABLE UNIT ﾌｧｲﾊﾞｰﾕﾆｯﾄ
AZ8954 S
2N 7 N300AZ8954
SWITCH ｽｲｯﾁ
BST4
1
N 8 N984BST4
PLUNGER ﾎﾞｰﾙﾌﾟﾗﾝｼﾞｬ
M4,1-TYPE,STEEL,Z.C.T
1
N 9 XNG4AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4,3-TYPE,STEEL,Z.C.T
1N10 XNG4CFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
PANADAC910T
5N11 N310P910T
SENSOR ｾﾝｻ
P914SB1
1
N13 N310P914SB1
SENSOR ｾﾝｻ
M3X6
1
N14 N986YYYY-R55
BOLT ﾎﾞﾙﾄ(ﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
M130
F10811-22-000-AG

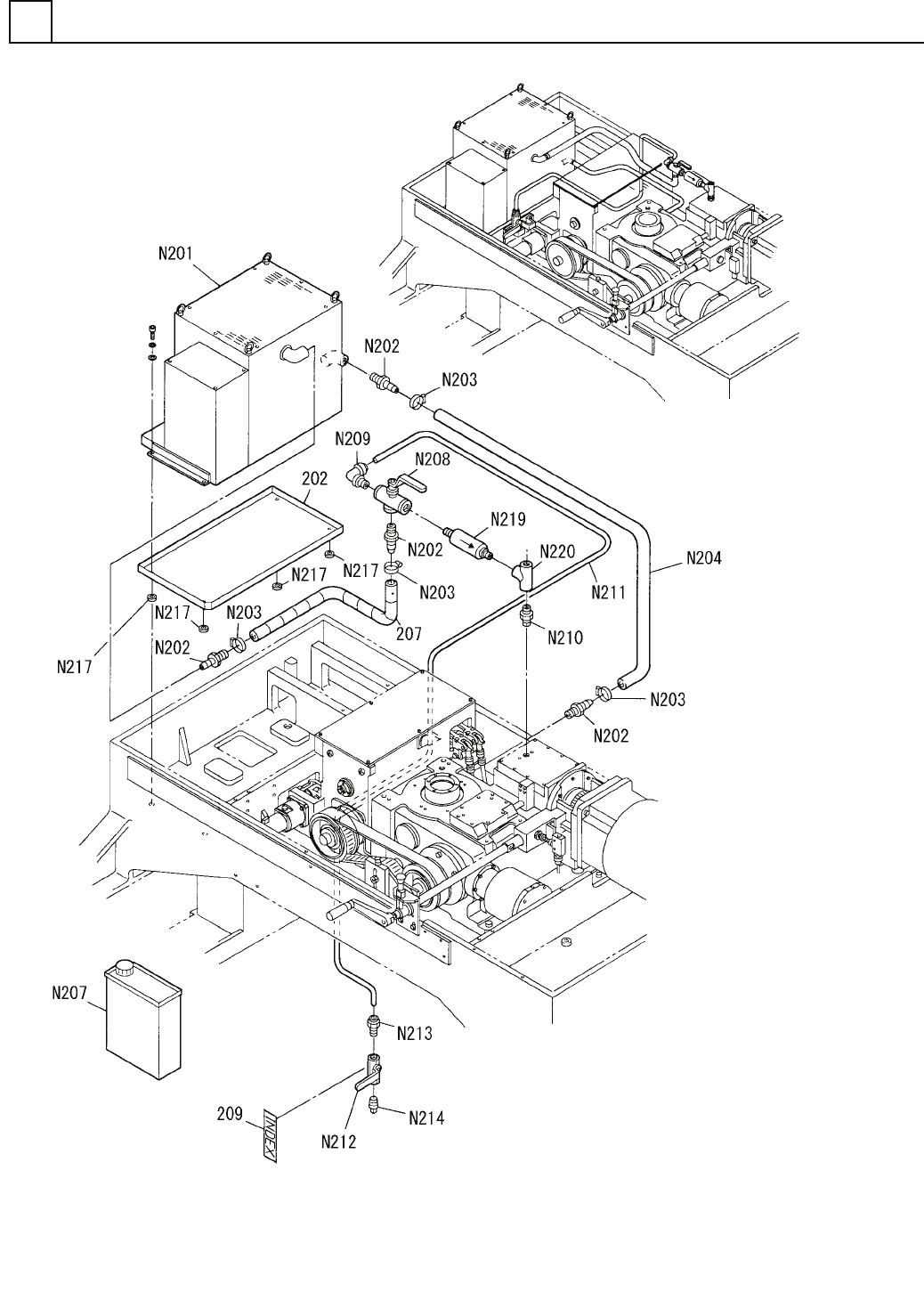

ﾍｯﾄﾞ駆動部(ｲﾝﾃﾞｯｸｽｵｲﾙｸｰﾗ部)
HEAD DRIVING SECT.(INDEX OIL COOLER SECT.)
7
F10811-24-200-AF
M131
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
　　　　　　　　　 PART NAME
　　　 REMARKS　
Q'TY
7
ﾍｯﾄﾞ駆動部(ｲﾝﾃﾞｯｸｽｵｲﾙｸｰﾗ部)
HEAD DRIVING SECT.(INDEX OIL COOLER SECT.)
部 品 名 品　 番 個数
備 考
R
1
R
2
1 1081124200
INDEX OIL COOLER UNIT ｲﾝﾃﾞ
ｯｸｽｵｲﾙｸｰﾗﾕﾆｯﾄ
1
202 108112420201
OIL PAN ｵｲﾙﾊﾟﾝ
1
207 1081124207
HEAT INSULATION MATERIAL ﾀﾞﾝﾈﾂｻﾞｲ
1209 1081124209
LABEL ﾗﾍ
ﾞﾙ
SCLA-05-N
1
N201
N932SCLA05N
TEMPERATURE CONTROLLER ｵﾝﾄﾞﾁｮｳｾﾂｷ
JHN20.5-1/2
4
N202
N431JHN2-064
FITTING ﾎｰｽﾆｯﾌﾟﾙ
FS-30
4
N203
N462FS30
BAND ﾊﾞﾝﾄﾞ
TS-19
1
N204
N434TS19
DUCT HOSE ﾀ
ﾞｸﾄﾎｰｽ
SYNTHESOHT2205KG
1
N207
N990SYNT-033
OIL ｵｲﾙ
DBVT-12D
1
N208
N413DBVT12D
VALVE ﾊﾞﾙﾌﾞ
PL-12X8-PT1/2-BS
1
N209
N431PL12-470
FITTING ｴﾙﾎﾞ
JKN-1/2
1
N210
N431JKN04
FITTING ﾆｯﾌ
ﾟﾙ
30-12,CLEAR
1
N211
N4343012T
TUBE ﾁｭｰﾌﾞ
UBV-14D
1
N212
N413UBV14D
VALVE ﾊﾞﾙﾌﾞ
PN-12X8-PT1/2-BS
1
N213
N431PN12-471
FITTING ﾆｯﾌﾟﾙ
JKP-1/2
1
N214
N433JKP04
PLUG ﾌ
ﾟﾗｸﾞ
WRBF15-10-1
4
N217
N986WRBF-S78
WASHER ｻﾞｶﾞﾈ
MKCM35-4T-O S
1
N219
N445MKCM-084
SWITCH ｽｲｯﾁ
T-1/2
1
N220
N431T04
FITTING ﾂｷﾞﾃ
M132
F10811-24-200-AF
