PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 1 本体部(ﾒｲ ﾝﾌﾚｰ ﾑ部) MAIN BODY S ECT.(MAIN FRAM E SECT.) 部 品 名 品 番 個数 備 考 R 1 R 2 1 1081101000 MAIN FRAME UN IT ﾒｲﾝﾌﾚｰﾑﾕﾆｯﾄ 1 4 108110100412 MAIN FRAME ﾌﾚｰﾑ(ﾒｲﾝ) 10 6 10…
本体部(ﾒｲﾝﾌﾚｰﾑ部)
MAIN BODY SECT.(MAIN FRAME SECT.)
1
F10811-01-000-AM
M1
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
本体部(ﾒｲﾝﾌﾚｰﾑ部)
MAIN BODY SECT.(MAIN FRAME SECT.)
部 品 名 品 番 個数
備 考
R
1
R
2
1 1081101000
MAIN FRAME UNIT ﾒｲﾝﾌﾚｰﾑﾕﾆｯﾄ
1
4 108110100412
MAIN FRAME ﾌﾚｰﾑ(ﾒｲﾝ)
10
6 104388951201
BOLT ﾎﾞﾙﾄ
18 108110100803
STAND ｽﾀﾝﾄ
ﾞ
29 108110100902
DUCT ﾀﾞ
ｸﾄ
1
10 108110101005
STAND ｽﾀﾝﾄﾞ
1
12 1999601003
PLATE(EARTH) ﾌﾟﾚｰﾄ(ｱｰｽ)
113 108110101303
BRACKET ﾌ
ﾞﾗｹｯﾄ
117 108110101707
BRACKET ﾌﾞﾗｹｯﾄ
1
18 108110101803
PLATE(L) ﾌﾟﾚｰﾄ(L)
119 108110101906
PLATE ﾌﾟﾚｰﾄ
1022 104388950102
STAND ｽﾀﾝﾄ
ﾞ
10
23 104388950301
RUBBER ﾗﾊﾞｰ
2
24 108110102404
BRACKET ﾌﾞﾗｹｯﾄ
225 108110102503
BRACKET ﾌﾞﾗｹｯﾄ
227 108110102702
PLATE ﾌ
ﾟﾚｰﾄ
1
28 108110102804
BRACKET ﾌﾞﾗｹｯﾄ
2
29 1081101029
BRACKET ﾌﾞﾗｹｯﾄ
MST8-15
5N 1 N986MST815
PIN ﾋﾟﾝ
M30,3-TYPE,STEEL,P.C
10N 3 XNH30FFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
USR32
10
N 4 N986USR32
SPACER ｽﾍﾟｰｻ
30,STEEL,P.C
10
N 5 XUB30FP
RETAINING RING C-TYPE, SHAF C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
M4X8,+,STEEL,Z.C.T
14N 8 XSS4+8FY
FLUSH HEAD SCREW ｻﾗｺﾈｼ
ﾞ
STANDARD-TYPE 21
1N 9 N986YYYY-180
ADHESIVE TAPE ｼｷｲｽﾍ
ﾞﾘ
ACB12-80
4
N10 N986ACB1280
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10,+,STEEL,Z.B.P
4N11 XSS5+10FZ
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
NK-14N
1N12 N348NK14N
CLAMP FOR WIRING ﾅｲﾛﾝｸﾗﾝﾌ
ﾟ
CTAM1
11
N13 N348CTAM1T
CLAMP ｸﾗﾝﾌﾟ
M4X6,+,STEEL,Z.C.T
11
N14 XST4+6FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M2
F10811-01-000-AM

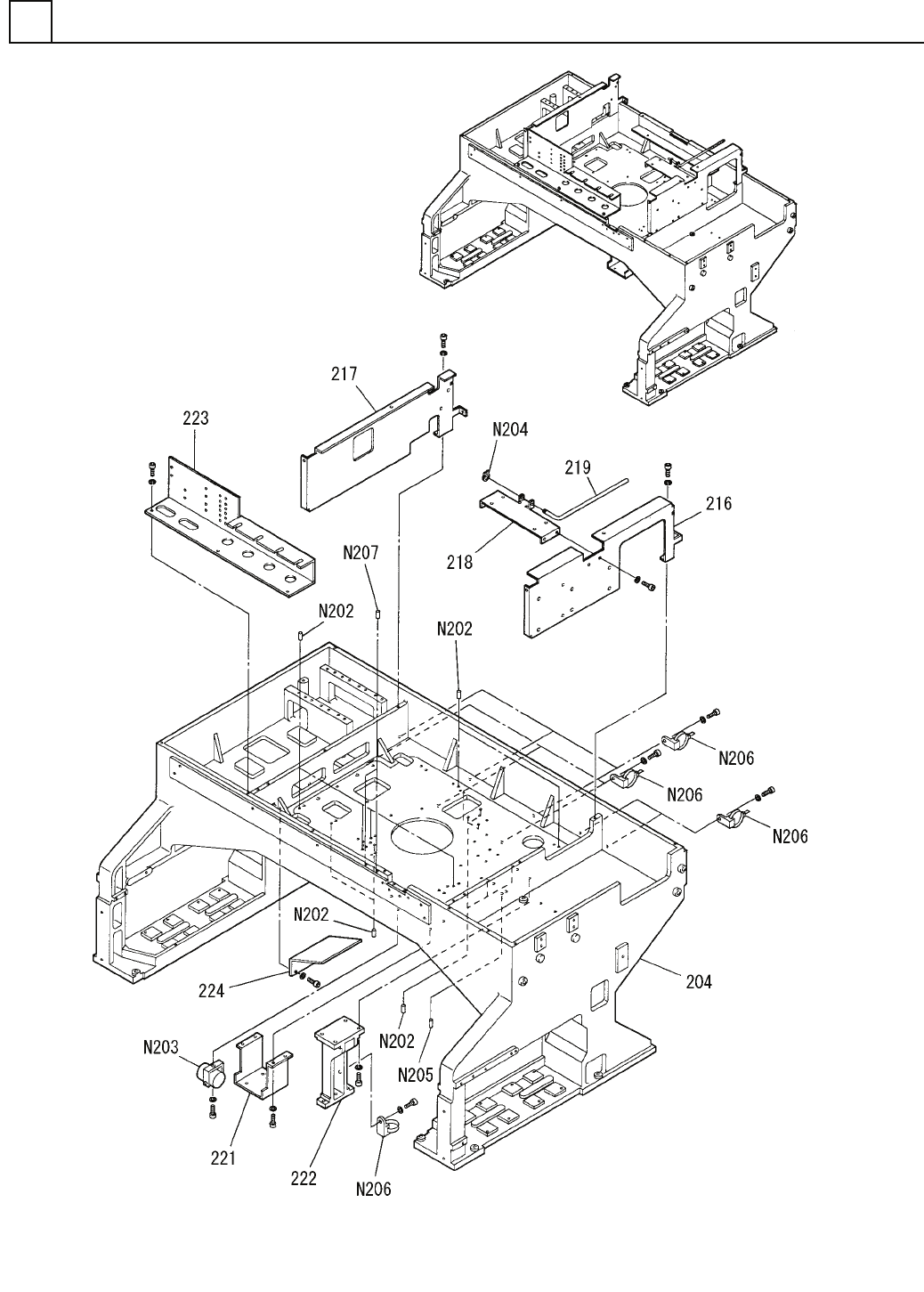

本体部(ｱｯﾊﾟｰﾌﾚｰﾑ部)
MAIN BODY SECT.(UPPER FRAME SECT.)
1
F10811-01-200-AM
M3
