PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 2 ｶﾊﾞｰ部( 3) COVER SECT. (3) 部 品 名 品 番 個数 備 考 R 1 R 2 1 204 108110207702 COVER ｶﾊ ﾞｰ 1 205 108110207304 TOP COVER ｶﾊﾞｰ(TOP) 1 211 108110207601 COVER ｶﾊﾞｰ 1 234 1081102…
ｶﾊﾞｰ部(3)
COVER SECT.(3)
2
F10811-02-200-AM-3
M11
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(3)
COVER SECT.(3)
部 品 名 品 番 個数
備 考
R
1
R
2
1204 108110207702
COVER ｶﾊ
ﾞｰ
1
205 108110207304
TOP COVER ｶﾊﾞｰ(TOP)
1
211 108110207601
COVER ｶﾊﾞｰ
1234 108110207402
COVER(RIGHT) ｶﾊ
ﾞｰ(RIGHT)
1236 108110207502
REAR COVER ｶﾊﾞｰ(
REAR)
1
238 1081102065
COVER ｶﾊﾞｰ
1
241 1081102241
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
1248 108110208702
BRACKET ﾌ
ﾞﾗｹｯﾄ
M5X8,+,STEEL,Z.C.T
26
N201
XST5+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
5,B-TYPE,STEEL,Z.C.T
12
N202
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
4,B-TYPE,STEEL,Z.C.T
2
N230
XWC4BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
A-560-1-A
1
N231
N980A5601A
DRAWER PULL ﾄｯﾃ
A-560-1-B
1
N232
N980A5601B
DRAWER PULL ﾄｯﾃ
M4X6,+,STEEL,Z.C.T
2
N233
XST4+6FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M12
F10811-02-200-AM-3

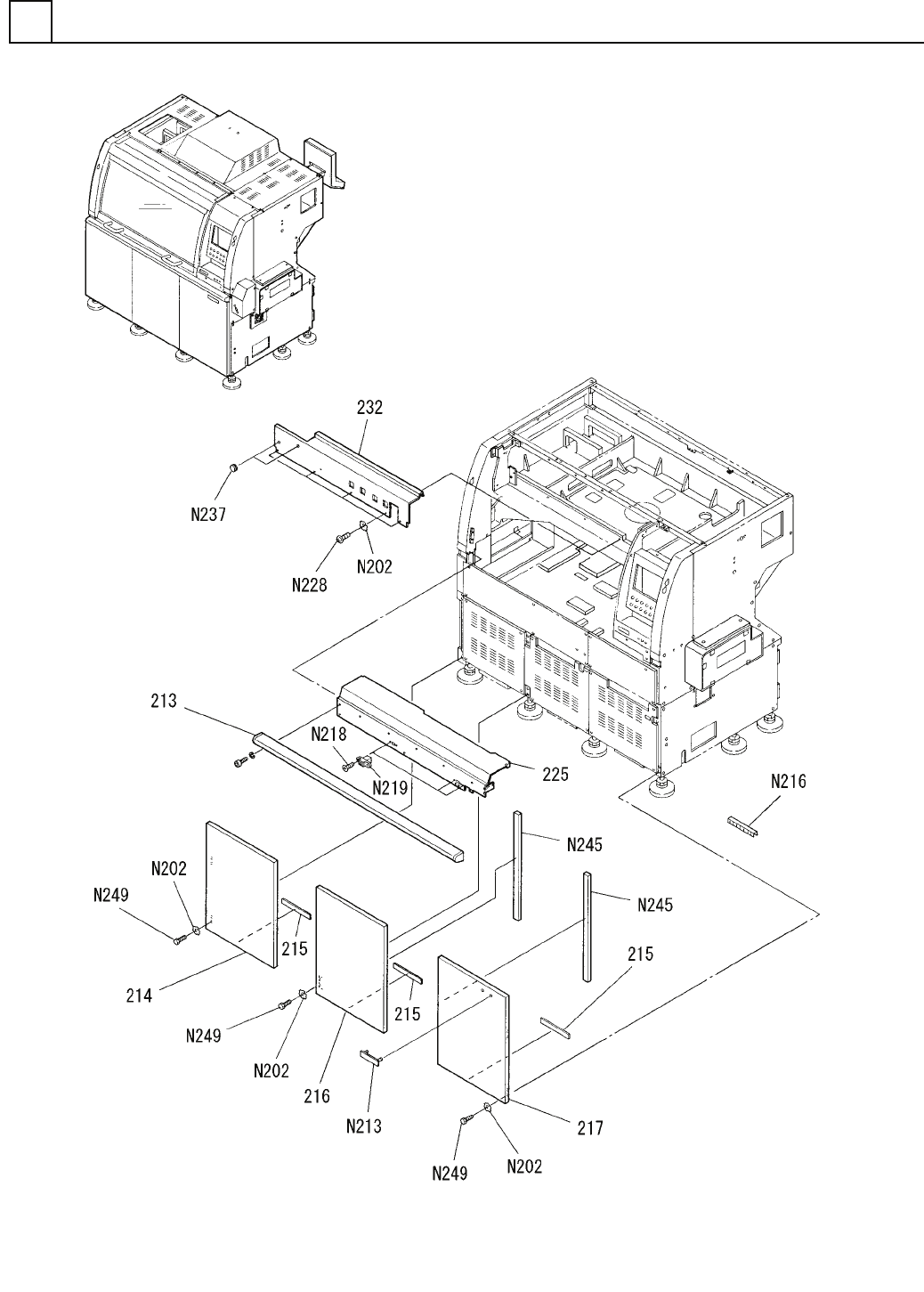

ｶﾊﾞｰ部(4)
COVER SECT.(4)
2
F10811-02-200-AM-4
M13
