PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 2 ｶﾊﾞｰ部 (M専用部1) COVER SECT. (M EXCLUSIVE S ECT.-1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 1081102400 COVER UNIT ｶﾊ ﾞｰﾕﾆｯﾄ 1 402 108110200806 FRONT COVER ｶﾊﾞｰ(FRONT) 1 403 1081102…

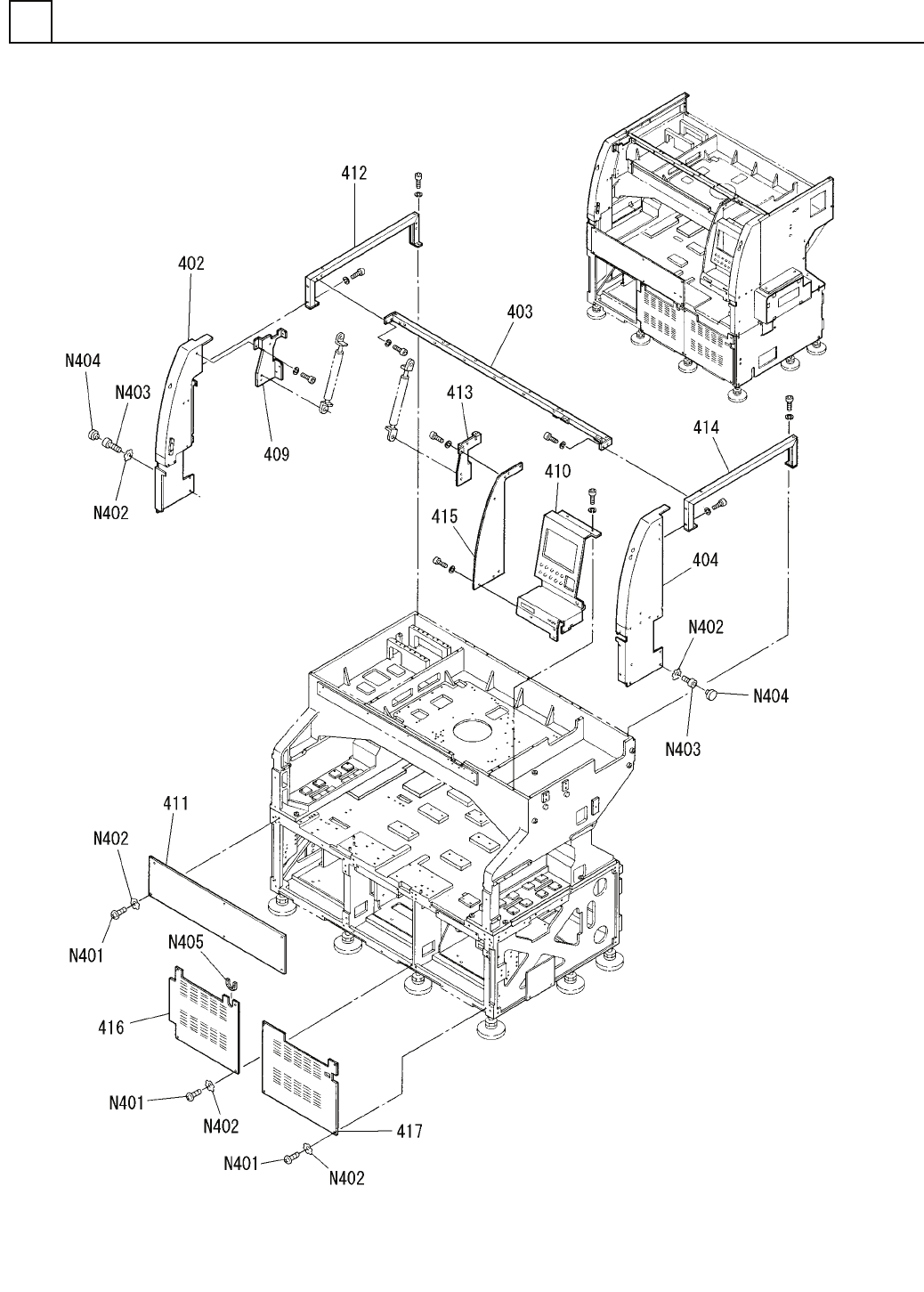

ｶﾊﾞｰ部(M専用部1)
COVER SECT.(M EXCLUSIVE SECT.-1)
2
F10811-02-400-AM-1
M19
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(M専用部1)
COVER SECT.(M EXCLUSIVE SECT.-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 1081102400
COVER UNIT ｶﾊ
ﾞｰﾕﾆｯﾄ
1
402 108110200806
FRONT COVER ｶﾊﾞｰ(FRONT)
1
403 108110201302
FRAME ﾌﾚｰﾑ
1404 108110201405
COVER(RIGHT) ｶﾊ
ﾞｰ(RIGHT)
1409 108110240903
BRACKET(LEFT) ﾌﾞﾗｹｯﾄ
(LEFT)
1
410 108110203309
BRACKET ﾌﾞﾗｹｯﾄ
1
411 108110203502
COVER ｶﾊﾞｰ
1412 108110204202
LEFT FRAME ﾌﾚｰﾑ
(LEFT)
1413 108110241303
BRACKET ﾌﾞﾗｹｯﾄ
1
414 108110204601
RIGHT FRAME ﾌﾚｰﾑ(RIGHT)
1415 108110204801
SIDE COVER ｶﾊﾞｰ(SIDE)
1416 108110203901
COVER ｶﾊ
ﾞｰ
1
417 108110204003
COVER ｶﾊﾞｰ
M5X8,+,STEEL,Z.C.T
14
N401
XST5+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
5,B-TYPE,STEEL,Z.C.T
22
N402
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
JB-AM5X8
8
N403
N986JBAM58
BOLT ﾎ
ﾞﾙﾄ
M5X12
8
N404
N986YYYY-814
CAP ｷｬｯﾌﾟ
KG-012
2
N405
N348KG012
BUSHING FOR WIRING ｼﾞｻﾞｲﾌﾞｯｼｭ
M20
F10811-02-400-AM-1

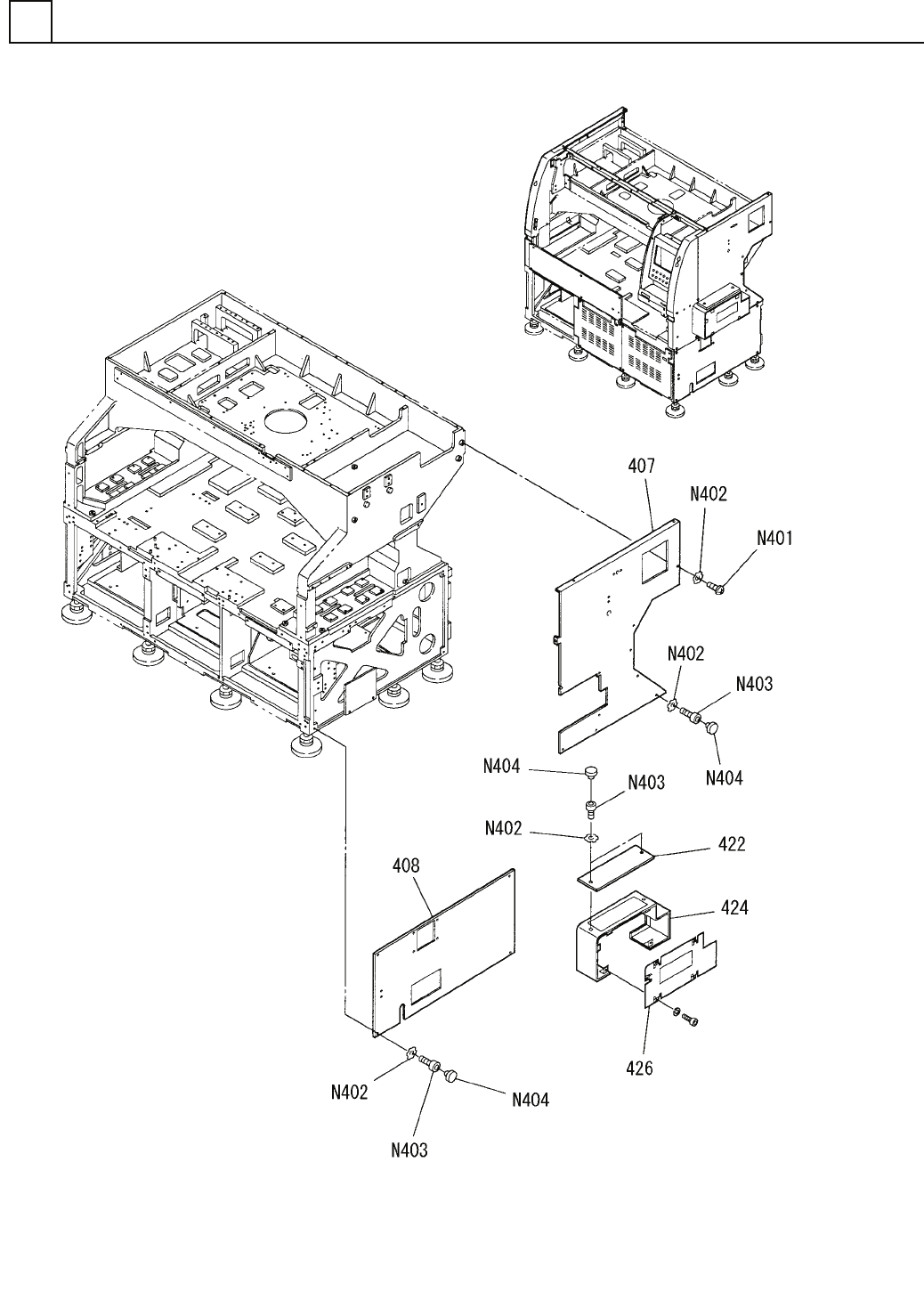

ｶﾊﾞｰ部(M専用部2)
COVER SECT.(M EXCLUSIVE SECT.-2)
2
F10811-02-400-AM-2
M21
