PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 3 X-Yﾃ ｰﾌﾞﾙ 部(X-Y軸 駆動部1 ) X-Y TABLE S ECT,(X-Y AXIS DRIVING SECT .-1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 1081104400 X-Y-AXIS UNIT X-Y ｼﾞｸﾕﾆｯﾄ 1 401 108110440107 BASE(TABLE) ﾍ…

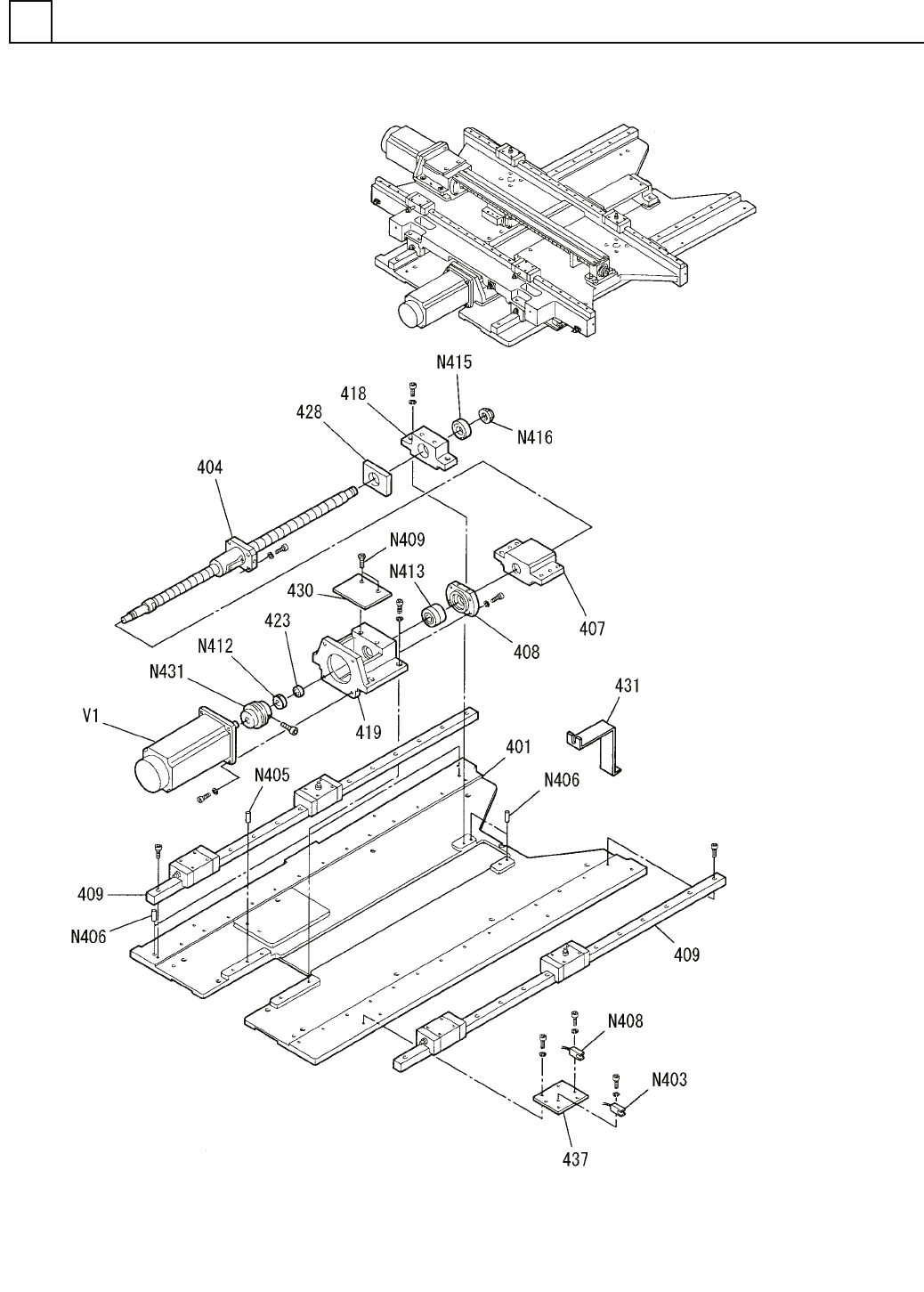

X-Yﾃｰﾌﾞﾙ部(X-Y軸駆動部1)
X-Y TABLE SECT,(X-Y AXIS DRIVING SECT.-1)
3
F10811-04-400-AL_A-1
M53
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
X-Yﾃｰﾌﾞﾙ部(X-Y軸駆動部1)
X-Y TABLE SECT,(X-Y AXIS DRIVING SECT.-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 1081104400
X-Y-AXIS UNIT X-Y
ｼﾞｸﾕﾆｯﾄ
1
401 108110440107
BASE(TABLE) ﾍﾞｰｽ(ﾃｰﾌﾞﾙ)
1
404 108110440403
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
1407 108110440703
HOUSING ﾊｳｼ
ﾞﾝｸﾞ
1408 108110440804
PLATE ﾌﾟﾚｰﾄ
1
409 108110440902
GUIDE ｶﾞｲﾄﾞ
1
418 108110441806
HOUSING ﾊｳｼﾞﾝｸﾞ
1419 108110441907
BRACKET(MOTOR) ﾌﾞ
ﾗｹｯﾄ(ﾓｰﾀ)
1423 108110442302
COLLAR ｶﾗｰ
1
428 1081104428
CUSHION ｸｯｼｮﾝ
1430 108110443002
COVER ｶﾊﾞｰ
1431 108110443103
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
437 108110443701
BRACKET ﾌﾞﾗｹｯﾄ
P914SA1
1
N403
N310P914SA1
SENSOR ｾﾝｻ
MSY6-10
1
N405
N986MSY610
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
MST6-10
4
N406
N986MST610
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
P914S1
1
N408
N310P914S1
SENSOR ｾﾝｻ
M4X6,+,STEEL,Z.C.T
2
N409
XSS4+6FY
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
WBK15L-01
1
N412
N560WBK15L01
LOCK-NUT ﾛｯｸﾅｯﾄ
7302BTDFCP5P5
1
N413
XLLN7302-093
BEARING ﾍﾞ
ｱﾘﾝｸﾞ
6202ZZCMP5
1
N415
XLCN6202-119
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
FU02SC
1
N416
XNRNFU02SC
LOCK-NUT ﾛｯｸﾅｯﾄ
SFC-050SA-19B-12B
1
N431
N644SFC0-179
COUPLING ｶｯﾌ
ﾟﾘﾝｸﾞ
S
1V 1 N610117422AA
MOTOR ﾓｰﾀ
M54
F10811-04-400-AL_A-1

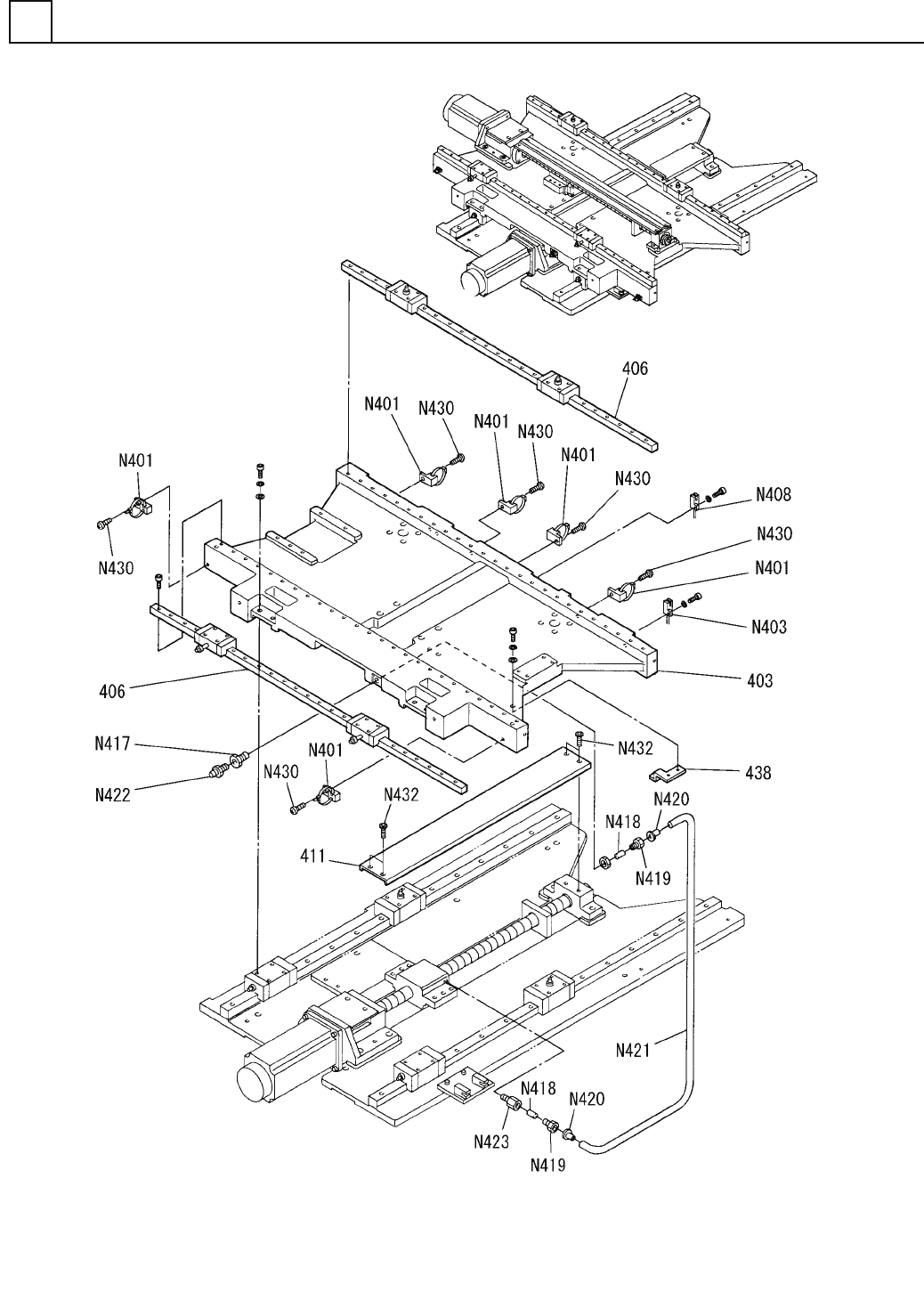

X-Yﾃｰﾌﾞﾙ部(X-Y軸駆動部2)
X-Y TABLE SECT.(X-Y AXIS DRIVING SECT.-2)
3
F10811-04-400-AL_A-2
M55
