Test Research, Inc. 76 TR7007 M SII User Guide – Hardware A. Select F ILE > L OAD C ONFIG f r om t he EzLink main menu list Figure 118 : EzLink - File/ Load Config. B. Select the file t o b e l oaded . F or TR7550 , u…
Test Research, Inc.
TR7007M SII User Guide – Hardware 75

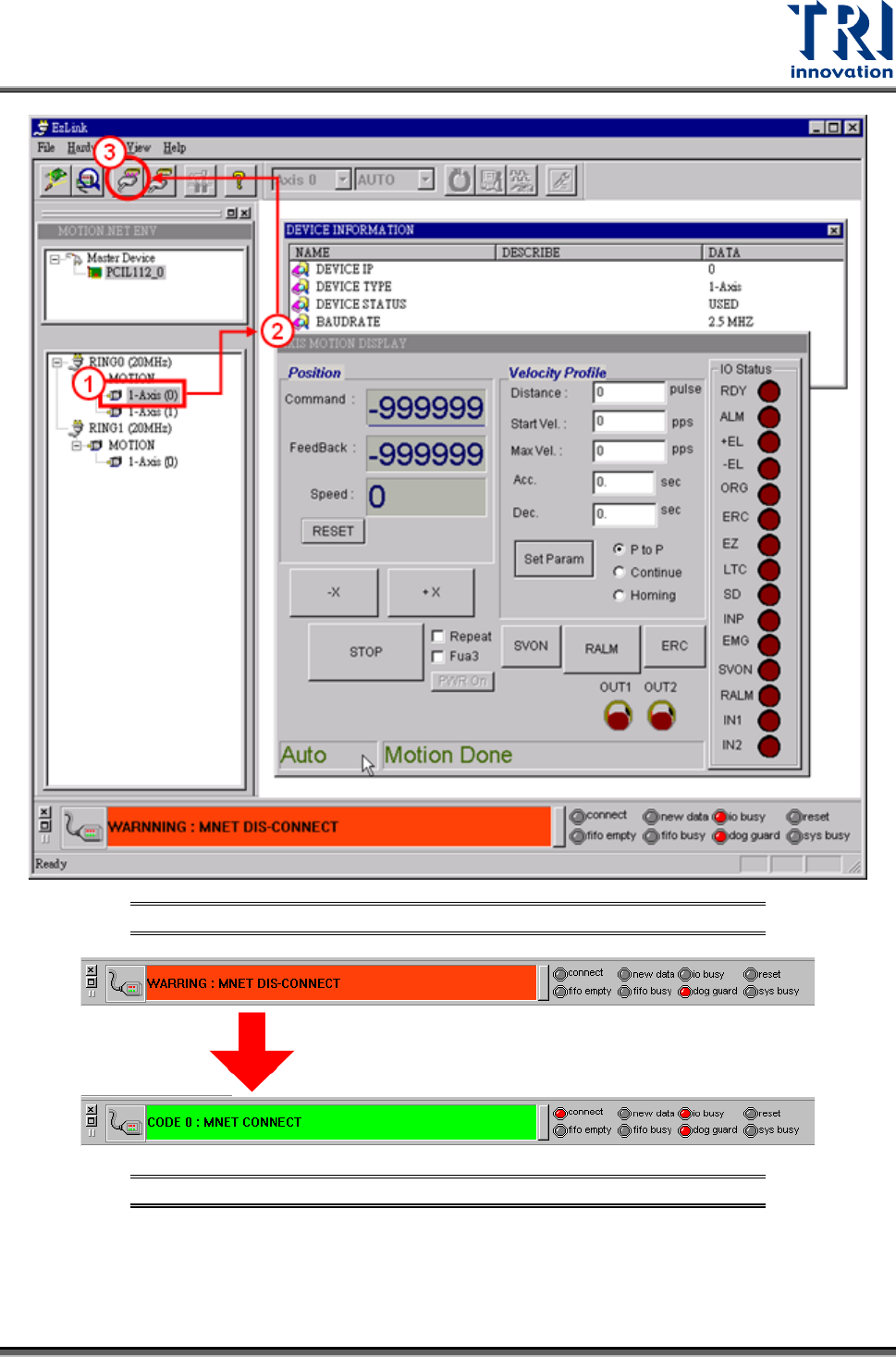

Figure 116: EzLink Scan Screen
Figure 117: EzLink Disconnect/Connect Status Screen
6) Loading Parameters
Test Research, Inc.
76 TR7007M SII User Guide – Hardware
A. Select FILE > LOAD CONFIG from the EzLink main menu list

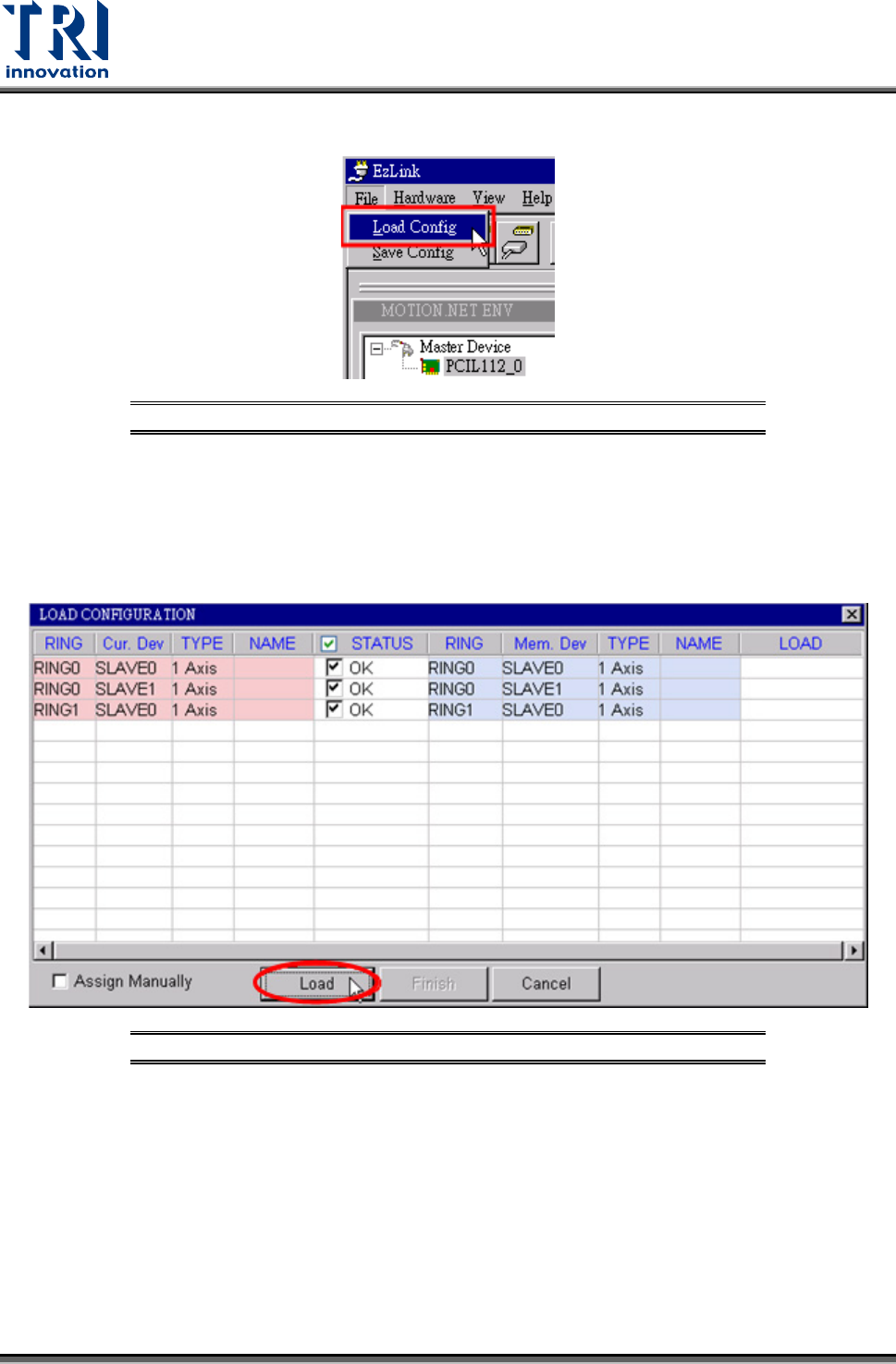

Figure 118: EzLink-File/Load Config.
B. Select the file to be loaded. For TR7550, user should select [TR7500LinearMotor] in
[Ezlink_32] folder; for TR7066/7007/7700, user should select [TR7066/7007/7700] in
[Ezlink_64] folder.
C. Select any slave device from the list and click on the LOAD button. This will
automatically load all the device’s axes.
Figure 119: EzLink Load Configuration Screen
D. Once all slave devices have been loaded successfully, click on the FINISH button to
close the window.
Test Research, Inc.
TR7007M SII User Guide – Hardware 77

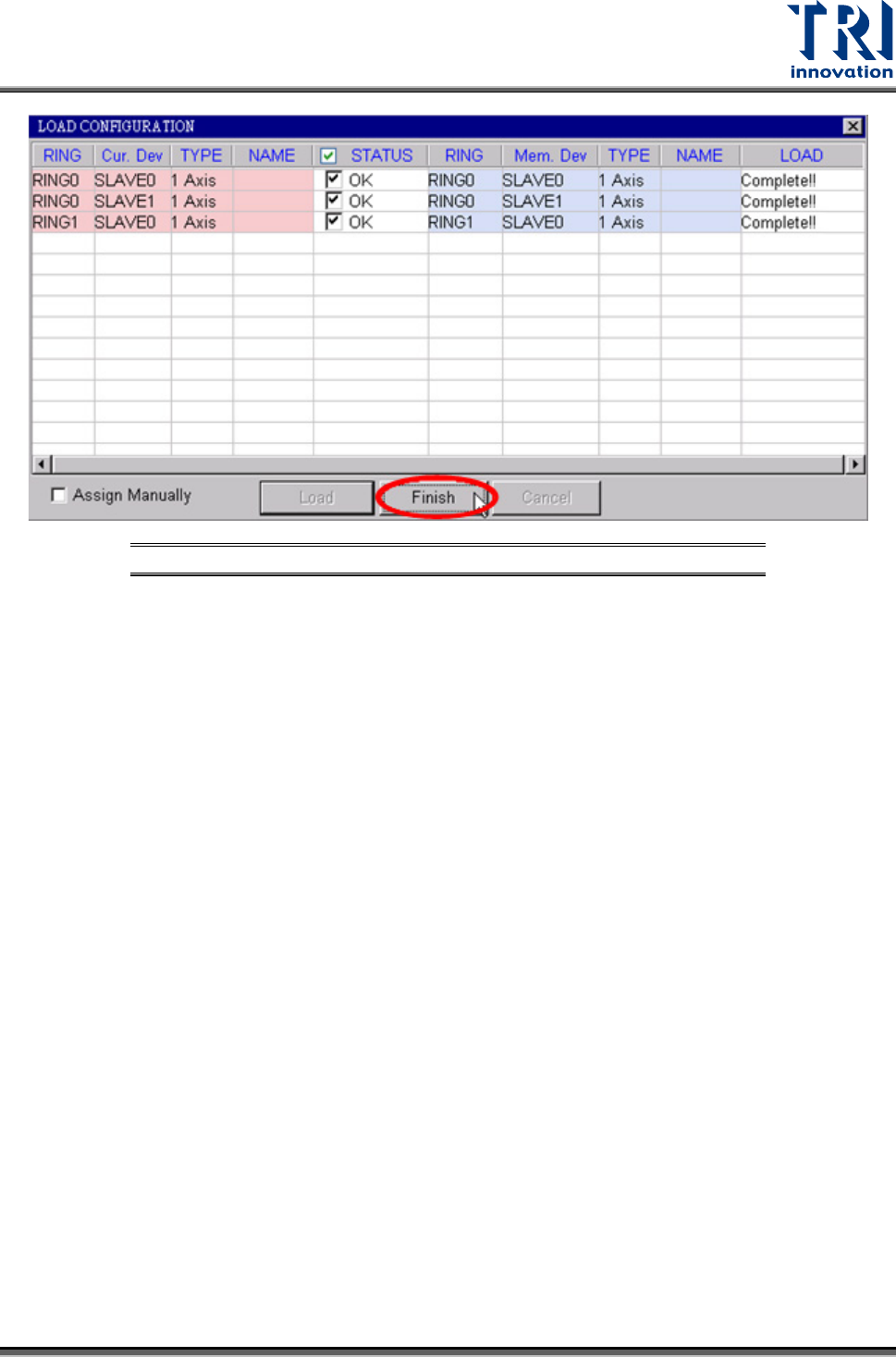

Figure 120: EzLink Load Configuration Finished
