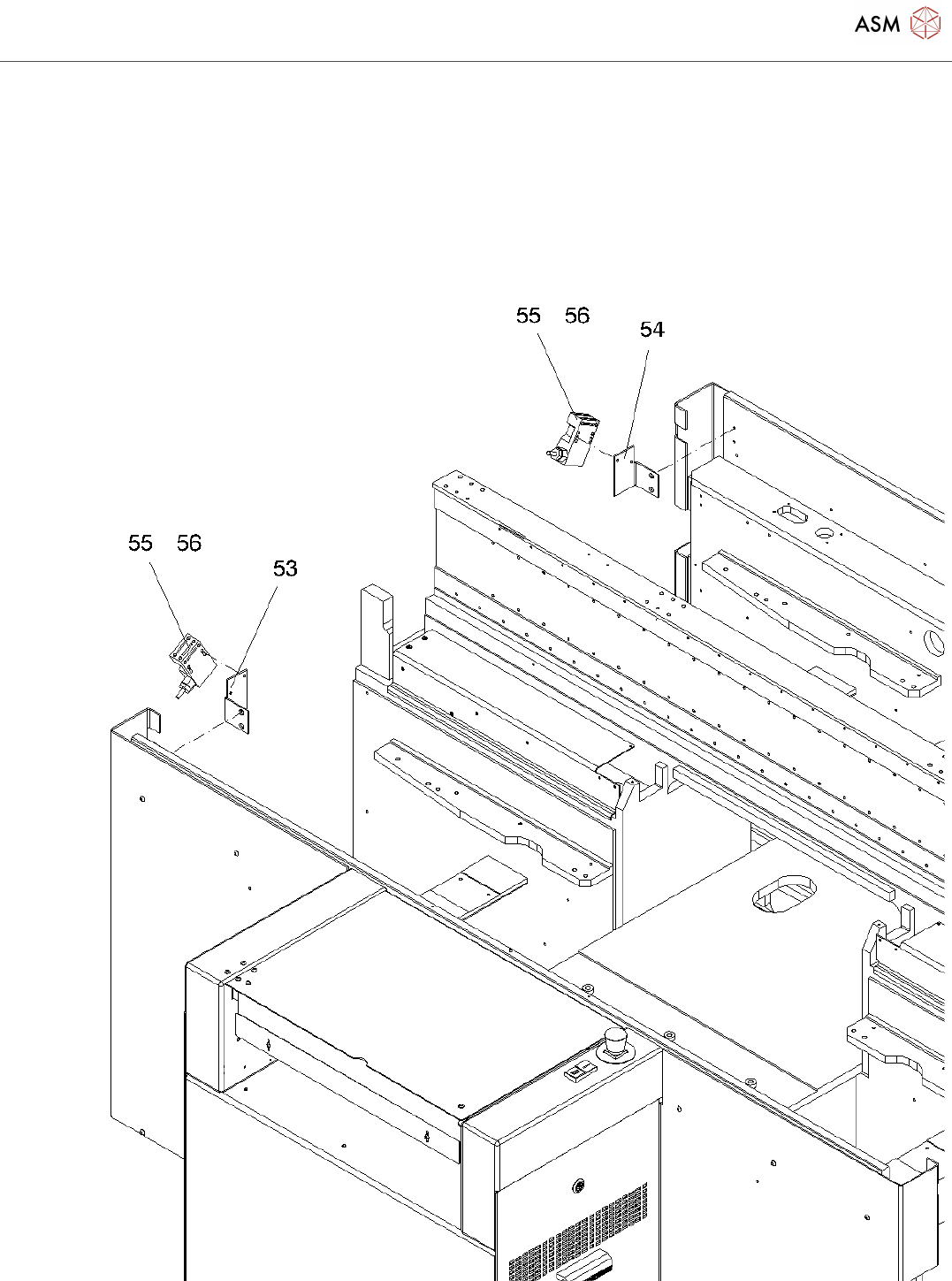

Pos. Item no. Description Part marking
03040369-03 BASIC MODULE MACHINE
PROTECTION/HS-D
2 03042207-02 T-BRACKET , OUTSIDE, COMPLETE
3 03042218-02 T-BRACKET , INSIDE, COMPLETE
4 03062024-01 DTC-MOVABLE HOOD 1, COMPLETE
03048379-01 ACTUATOR AZ 15/16-B1 SPARE PART
5 03062955-01 BAR CODE LABEL (FOR D4 DTC-
HOOD)
SPARE PART
6 03062031-01 DTC MOVABLE HOOD 4, COMPLETE
03057233-01 ACTIVATOR BRACKET 2/4
7 03064167-01 D4 BAR CODE LABEL SECTOR 4 SPARE PART
8 03062026-01 DTC-MOVABLE HOOD 3, COMPLETE
03056868-01 ACTIVATOR BRACKET 1/3
9 03064160-01 D4 BAR CODE LABEL SECTOR 3 SPARE PART
10 03062030-01 DTC MOVABLE HOOD 2, COMPLETE
03057233-01 ACTIVATOR BRACKET 2/4
11 03064163-01 D4 BAR CODE LABEL SECTOR 2 SPARE PART
12 03042237-02 STATIC TOP COVER SUB-ASSEMBLY
13 03042284-03 STATIC HOOD SUB-ASSEMBLY
14 03066592-01 REMOVABLE TOP COVER SUB-
ASSEMBLY
15 03040334-01 MAIN ERROR INDICATOR ASSY/D4 SPARE PART
16 03040333-01 LAMP TUBE
17 03004316-01 CONNECTION ELEMENT INCL.
CLOSING COVER
18 03004318-01 PERMANENT LIGHT ELEMENT
GREEN
19 03004317-01 PERMANENT LIGHT ELEMENT CLEAR
20 03066318-01 LED BULB BA15D BASE YELLOW WEAR PART
33 03066319-01 LED BULB BA15D BASE GREEN WEAR PART
21 03044448-01 MONITOR MOUNT 2 SUB-ASM - HS-
D
22 03042084-01 COVER PLATE
23 03042267-02 OPERATOR COVER, RIGHT SUB
ASSEMBLY
24 03043638-03 SIDE COVER ASSEMBLY, RIGHT
25 03042277-02 DOOR ASSEMBLY, RIGHT
