VEGO Series – A New Generation of Handling Modules
VEGO Compact
VEGO_Compact_BUL01_181213_DS_CC_E
Options
_ Transport height 850 mm ± 50 mm
_ Electrical width adjustment
_ Safety cover with lock
_ Stopper cylinder
_ Error loop
Description

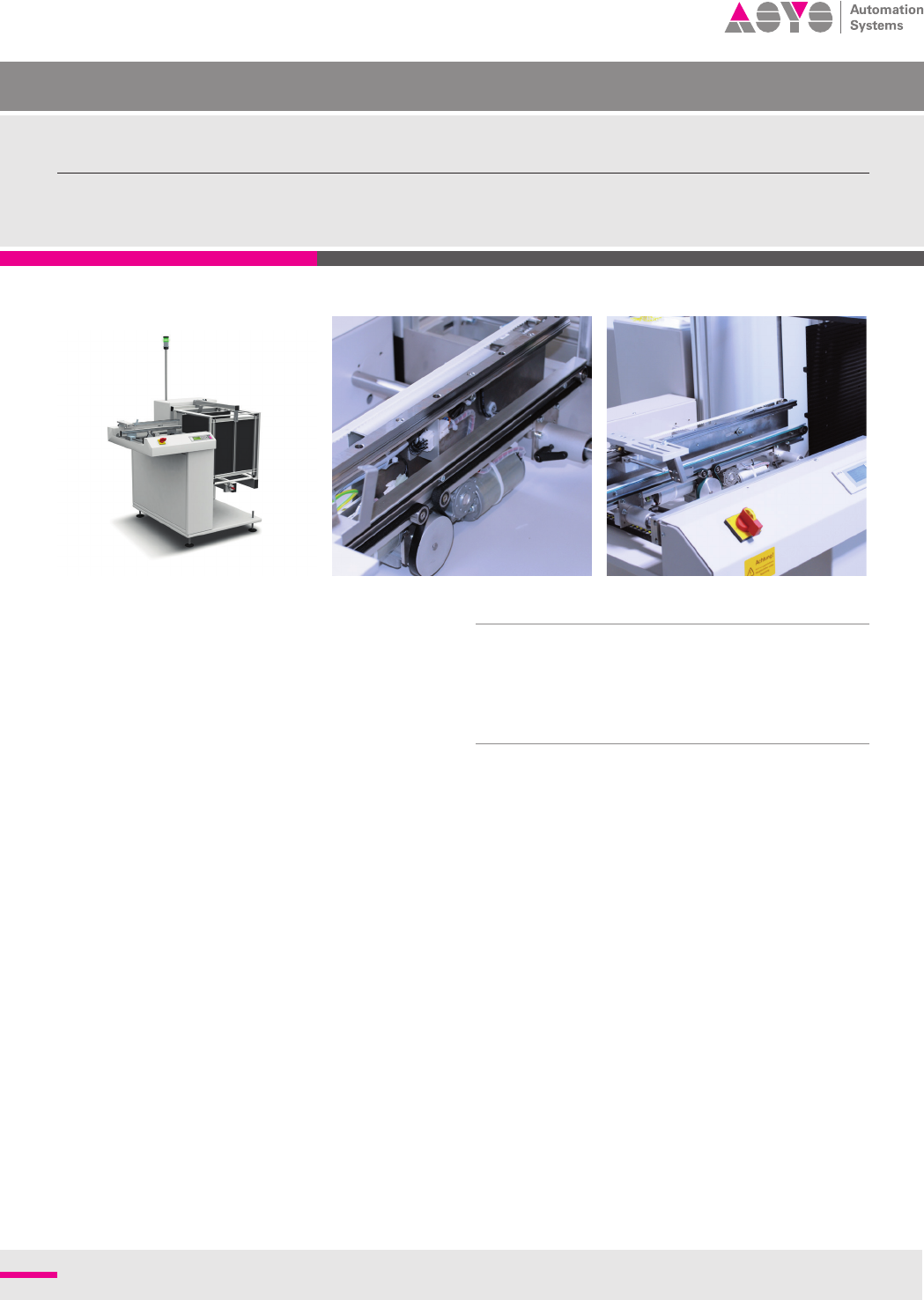

The Line Unloader receives PCBs from upstream and trans-
fers them via an integrate conveyor segment and an electrical
pusher arm into a magazine. Once a PCB is loaded in the
magazine, the magazine platform will index to the next slot. A
programmable pre-warning limit will alert an operator to chan-
ge the magazine manually. The powder coated steel frame
ensures process stability and excellent durability.
Features
_ Electrical pusher with adjustable force limiter
_ Two point magazine clamping system
_ LCD control panel
_ single-color signal lamp and horn
_ Anti-static conveyor belts
_ SMEMA Interface
VEGO BUL 01
Line Unloader for one magazine
ASYS Automatisierungssysteme GmbH
Benzstrasse 10,
89160 Dornstadt, Germany
Tel (+49) 7348 9855 0
Fax (+49) 7348 9855 91
info@asys.de
For more information visit
www.asys-group.com
Subject to change without notice.
Some general descriptions and performance characteristics may
not be applicable to all products. Technical specications are
subject to change without notice. Only features and technical
data provided in purchasing contract are legally binding.
Printed in Germany
VEGO BUL 01
Machine Conguration
Transport height
Max. transport width
Interface
Transfer direction
Operating side
Fixed rail
950 mm ± 50 mm
460 mm
SMEMA
from left to right
Front of the machine
Front of the machine
Magazine Size
Magazine length
Magazine width
Magazine heigth
Slot spacing
Buffer spacing
Magazine weight max.
535 mm
530 mm
568 mm
5- 20 mm
1- 50 Slots
30 kg
Panel Dimensions
Panel length
Panel width
Panel thickness
Component clearance
Panel weight
70 to 460 mm
50 to 460 mm
0.8 to 4.5 mm
± 40 mm
to 3 kg
Installation Requirements
Power supply
Power supply system
Power consumption
230 V / 115 V, 50 / 60 Hz, ± 10%
L1 + N + PE
0,13 kW
Machine Description
Length x Width x Height
Netto weight
Noise Level
1146 x 1030 x 1137
230 kg
< 75 dB
Upgrades
Additional interface protocol
Automatic width adjustment
Machine networking via IC Net
Subject to change without notice.
Some general descriptions and performance characteristics may
not be applicable to all products. Technical speci cations are
subject to change without notice. Only features and technical
data provided in purchasing contract are legally binding.
Printed in Germany

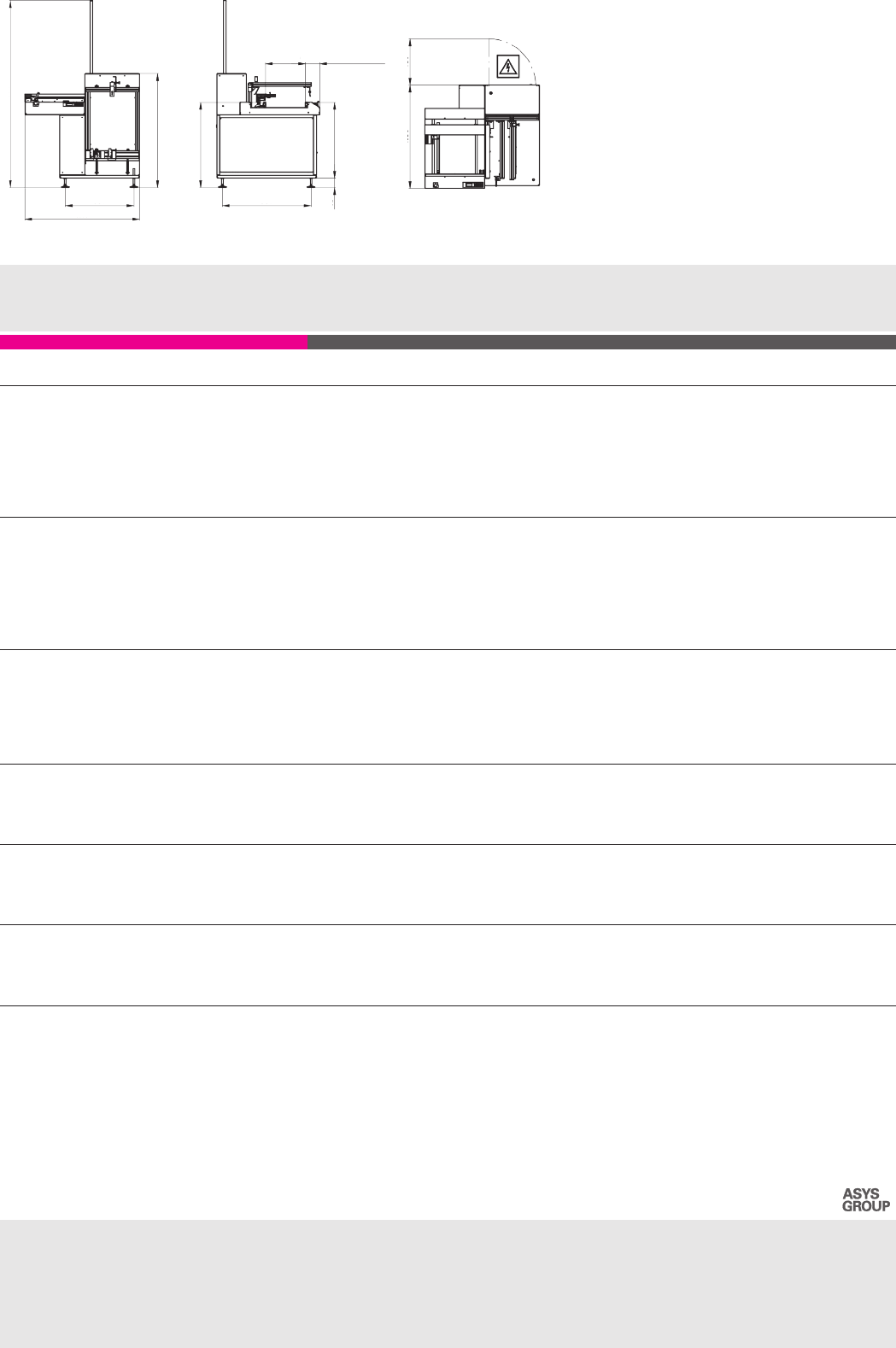

1864
1137
TH 850
687 887
50-400 Fixed Rail =142
95
755
4601030
1147
