Replacing the Trailing Cable Unit (IGUS) on X- Series Machines from B-079 [03 021065-xx] onwards Disassembly 26 Service Manual Exchange of the trai ling cable SIPLACE HF and X-Series 4.4 Disassembly 1. Trailing cable int…
Replacing the Trailing Cable Unit (IGUS) on X-Series Machines from B-079
[03021065-xx] onwards
Service Manual Exchange of the trailing cable SIPLACE HF and X-Series
25
See also:
J 4.2 Preparing the Trailing Cable Unit [J 22]
J 1.3 Handling the Hose Unlocking Device [03047090-xx] [J 6]

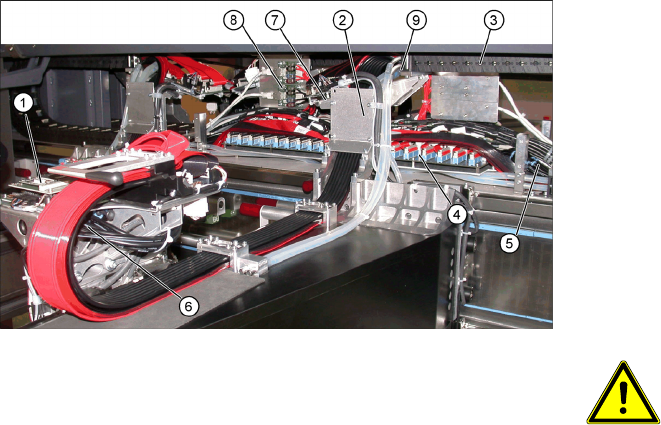

X The flat ribbon cable and the camera cable are
run from the head board (1), via the trailing ca-
ble console(2) and the power track chain (3) to
the gantry interface (7) and trailing cable inter-
face (4). The camera cable ends at the hotlink
card (8).
X The compressed air hoses are run from the
pneumatic distributor (6), via the trailing cable
console (2) and the power track chain(3) to the
gantry distributor in the machine base .
X Disconnect the camera cable from the hotlink
card (8).
X Remove cable ties where necessary.
ATTENTION:
Observe the order in which the con-
nections are arranged.
X Label the plug-in connections to the
flat ribbon cables and the camera
cable for subsequent reinstallation.
X Pull the cooling tubesfor the Y motor off the
connection piece.(9).
Replacing the Trailing Cable Unit (IGUS) on X-Series Machines from B-079 [03021065-xx] onwards
Disassembly
26 Service Manual Exchange of the trailing cable SIPLACE HF and X-Series
4.4 Disassembly

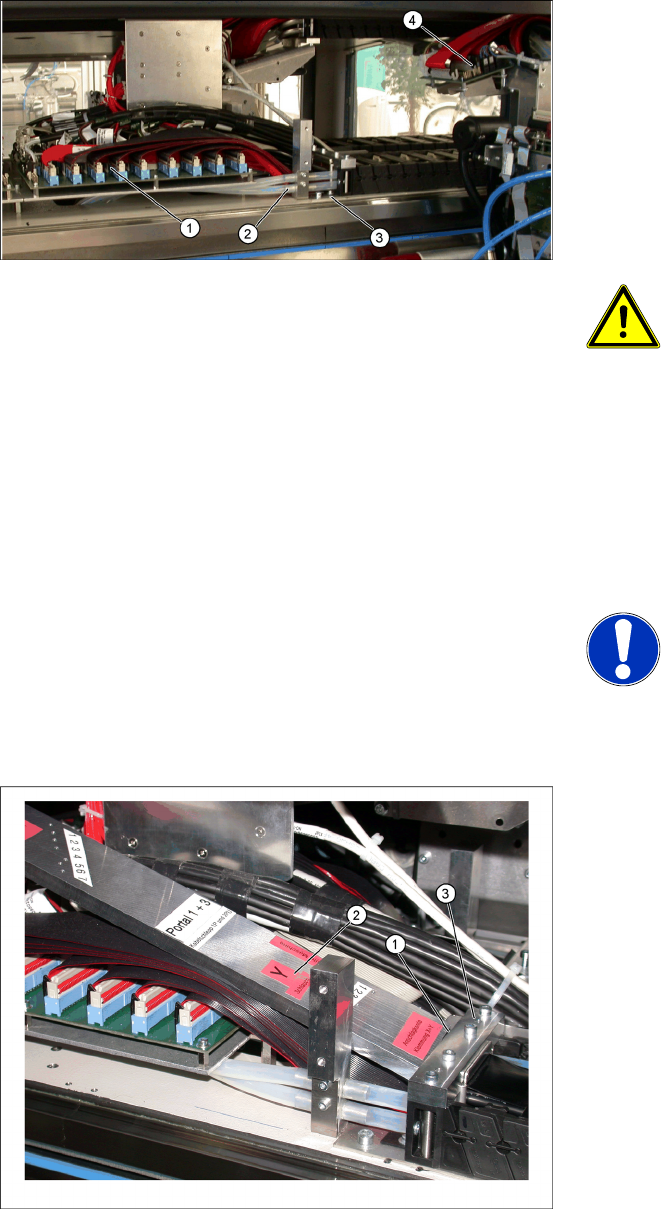

1. Trailing cable interface
2. Pneumatics for vacuum pump (option)
3. Mounting block for trailing cable
4. Gantry interface
X Disconnect the flat ribbon cable at the trailing
cable interface (1). Take care not to lose the
brackets for the plug-and-socket connections.
They could fall out and be lost.
X Remove cable ties where necessary.
ATTENTION:
Observe the order in which the con-
nections are arranged.
X Label the plug-in connections to the
flat ribbon cables for subsequent
reinstallation.
X Remove all necessary cable ties from the gan-
try interface (4) and unplug the flat ribbon ca-
ble.
X Disconnect the cables for the motor, proximity
switches, read head and temperature sensor
from the gantry interface (4) .
NOTE: Dismantle the gantry inter-
face board
The gantry interface board is fitted
onto the holder of the new trailing ca-
ble unit.
Proceed as follows to cut the compressed air ho-
ses which lead to the pneumatic distributor inside
the machine base:

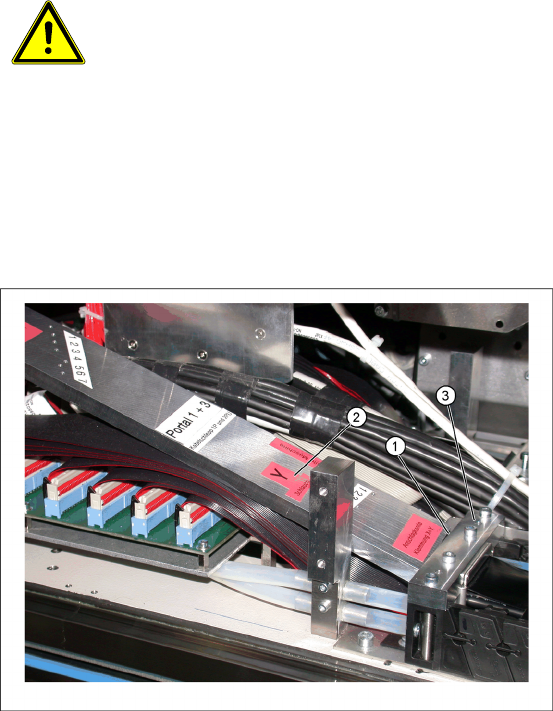

X Place the gauge (1) against the mounting
block (3).
X Use the gauge to label the hoses at the mar-
king Y-Schlauch (2).
Replacing the Trailing Cable Unit (IGUS) on X-Series Machines from B-079
[03021065-xx] onwards
Service Manual Exchange of the trailing cable SIPLACE HF and X-Series
27
CAUTION: Before Cutting the Compressed Air Hoses
X Mark the order in which the compressed air hoses are arranged (from 1 to 7
– from inside to outside). This ensures that you connect the correct hoses to
one another again afterwards.
X Make sure that the compressed air hoses do not fall into the machine base
when they are cut. Secure them if necessary.
X Make sure that the correct gauge is used (for the appropriate gantries) and
that the hoses are not cut too short.
X Loosen the screws fastening the mounting
block (3) of the trailing cable.
X If you are using the optional „vacuum pump“,
disconnect the compressed air hoses (2) and
follow the instructions in the
vacuum pump
retrofitting instructions
[00195089-01].
X Secure the end of the trailing cable (with cable
ties) in the machine to prevent it hanging loo-
sely and damaging other machine compon-
ents.
