Replacing the Trailing Cable Unit [03039709-xx]
Service Manual Exchange of the trailing cable SIPLACE HF and X-Series
7
2 Replacing the Trailing Cable Unit [03039709-xx]
Parts
Analog trailing cable unit 1P [03039706-01]
Analog trailing cable unit 2P U [03038708-01]
Analog trailing cable unit 2P G [03039709-01]
Hose nippers for cutting the compressed air hoses
Pipe/hose cutters [00381443-01]
Hose unlocking device [03047090-xx]
Loctite 241 [02101037-01]
Preparation
The trailing cable unit is supplied as a complete assembly. Depending upon the configuration of the ma-
chine, you will need to remove the relevant modules, covers and cover plates before you can dismantle
the trailing cable.
See also:
J 2.4 Conversion on SIPLACE HF Machines up to A 219 [J 13]
X Where necessary, remove the cover plates
from the gantry trailing cable. Mark their exact
position to ensure correct replacement later.
X Remove the top central cover from the SIPLA-
CE machine.
X Remove the upright EMC plates so that you
can reach the trailing cable.
Replacing the Trailing Cable Unit [03039709-xx]
Overview
8 Service Manual Exchange of the trailing cable SIPLACE HF and X-Series

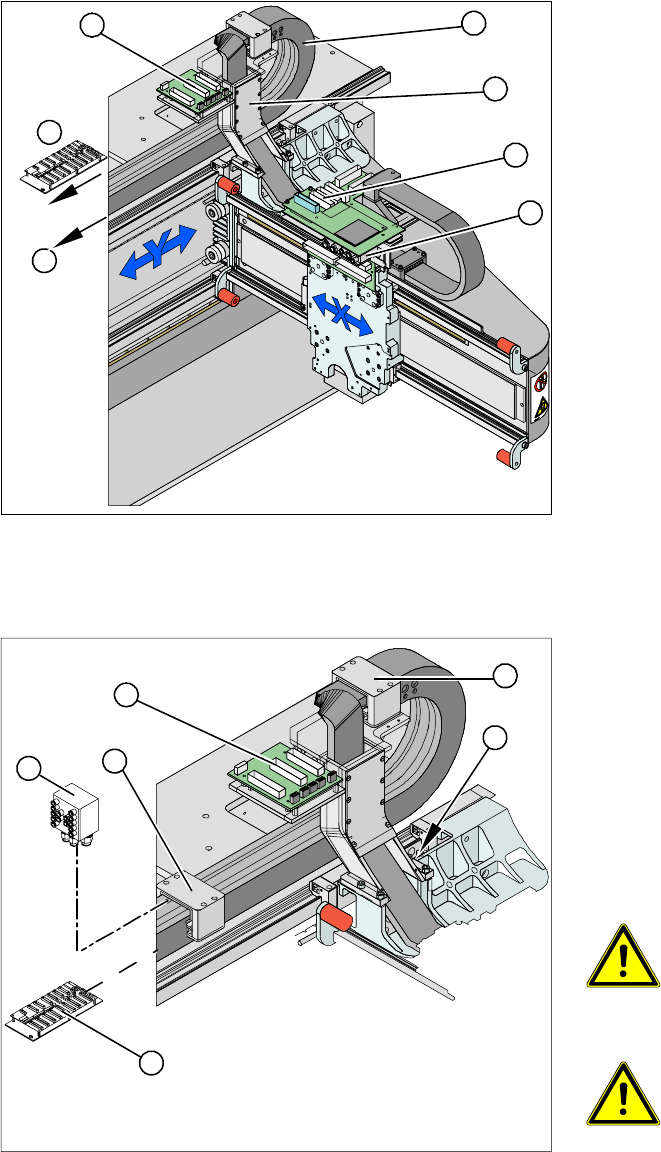

2.1 Overview
2.2 Disassembly
X The flat ribbon cables are run from the head
board (1), via the trailing cable console(2) and
the power track chain (3) to the gantry inter-
face (7) and trailing cable interface (4).
X The compressed air hoses are run from the
pneumatic distributor (6), via the trailing cable
console (2) and the power track chain(3) to the
gantry distributor (5) .
5
5
6
7
1
4
3
2
X Disconnect the flat ribbon cable at the trailing
cable interface (1). Take care not to lose the
brackets for the plug-and-socket connections.
They could fall out and be lost.
X Remove cable ties where necessary.
X Remove the cover on the gantry distributor (5).
X Loosen the screws fastening the gantry distri-
butor (5).
X Disconnect the hoses from the pneumatic dis-
tributor (2).
WARNING: Risk of injury to the
hands
X Use the hose unlocking device to
remove the hose [03047090-xx].
ATTENTION:
Observe the order in which the con-
nections are arranged. You will need
this sequence later, for reassembly
purposes.
3
3
4
5
1
2
Replacing the Trailing Cable Unit [03039709-xx]
Disassembly
Service Manual Exchange of the trailing cable SIPLACE HF and X-Series
9

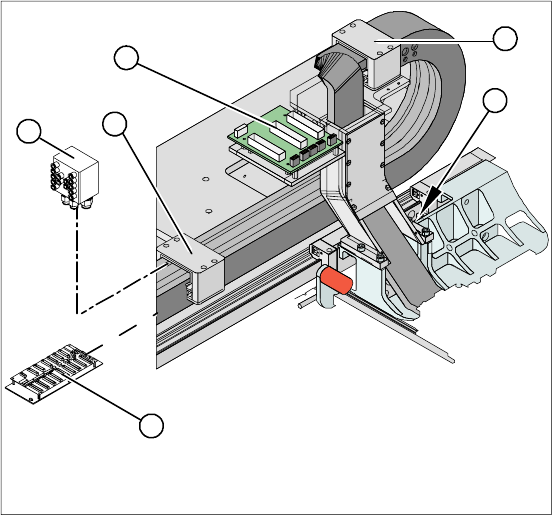

NOTE:
Connect the gantry distributor to the new trailing
cable and install it in the machine.
X Secure the end of the trailing cable (with cable
ties) in the machine to prevent it hanging loo-
sely and damaging other machine compon-
ents.
X Remove all necessary cable ties from the gan-
try interface (2) and unplug the flat ribbon ca-
ble.
X Disconnect the cables for the motor, proximity
switches, read head and temperature sensor
from the gantry interface (2) .
NOTE:
The gantry interface board is fitted onto the cable
holder of the new trailing cable unit.
X Pull the cooling tubes(4) off the Y motor.
X Loosen the screws fastening the pressure pla-
tes (3). to the power track chain. These screws
have been secured with locking paint.
NOTE:
Only the fastening screws will be loosened. The
clamps for the flat ribbon cable will remain in pla-
ce.
3
3
4
5
1
2
