KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90990-28J076 WASHER,PLAIN 1 39 92902-03200 WASHER,PLAIN 16
2 90990-41J006 COLLAR W 1 40 92902-04200 WASHER,PLAIN 2
3 91312-03006 BOLT HEX,SOCKET HEAD 16 41 92902-05200 WASHER,PLAIN 10
4 91312-03008 BOLT HEX,SOCKET HEAD 46 42 92902-05600 WASHER,PLAIN 4
5 91312-03010 BOLT HEX,SOCKET HEAD 8 43 92A08-04303 SCREW SET 4
6 91312-04006 BOLT HEX,SOCKET HEAD 4 44 95302-03700 NUT HEXAGON 52
7 91312-04010 BOLT HEX,SOCKET HEAD 6 45 98702-03005 SCREW,FLAT HEAD 32
8 91312-04012 BOLT HEX,SOCKET HEAD 10 46 KHY-M9117-00 SPLINE 1 1
9 91312-05014 BOLT HEX,SOCKET HEAD 4 47 KHY-M9121-10 FRAME,CONVEYOR 2 L=1460mm /
Í
10 91312-05020 BOLT HEX,SOCKET HEAD 2 48 KHY-M9123-10 GUIDE 1 4 L=1460mm /
Í
11 91317-04055 BOLT HEX,SOCKET HEAD 4 49 KHY-M9126-10 GUIDE 1-1 4 L=1460mm /
Í
12 KG2-M9105-00 PULLEY 1,SPLINE 1 /
Í
50 KLR-M9124-10 PLATE 1,GUIDE 2 L=1460mm /
Í
13 KG2-M9108-11 COLLAR CONVEYOR 2 /
Í
51 KLR-M9125-10 PLATE 2,GUIDE 2 L=1460mm /
Í
14 KGA-M9113-00 GUIDE 1,END 2 /
52 KHY-M9129-10 BELT 1,CONVEYOR 2 L=1460mm E
15 KGA-M9114-00 GUIDE 2,END 2 /
53
16 KGK-M9170-00 DC MOTOR ASSY. 1 B
Í
54
17 KGT-M9193-00 NUT PLATE 4 /
Í
55
18 KGY-M9140-A0 PULLEY CONV. ASSY. 4 A
56
19 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2 /
Í
57
20 KH2-M9121-00 BEARING 2 /
Í
58
21 KHW-M9146-00 BELT(249-3GT-9) 1 /
Í
59
22 KHY-M9110-00 BRKT.,CONV.MOTOR 1 /
Í
60
23 KHY-M9111-00 BRKT.1,SPLINE 1 /
Í
61
24 KHY-M9113-00 PULLEY 1,MOTOR 1 /
Í
62
25 KHY-M9121-00 FRAME,CONVEYOR 2 L=1250mm /
Í
63
26 KHY-M9123-00 GUIDE 1 4 L=1250mm /
Í
64
27 KHY-M9126-00 GUIDE 1-1 4 L=1250mm /
Í
65
28 KHY-M9127-00 BRACKET R,COLLAR 1 /
Í
66
29 KHY-M9128-00 BRKT.2,SPLINE 1 /
Í
67
30 KHY-M9129-00 BELT 1,CONVEYOR 2 L=1250mm E
68
31 KHY-M912A-01 BRKT.,SENSOR 1 /
Í
69
32 KHY-M9135-00 PLATE,EDGE 2 14 /
70
33 KHY-M9135-10 PLATE,EDGE 3 2 /
71
34 KHY-M9157-00 SHAFT,MOTOR 1 /
Í
72
35 KLR-M9124-00 PLATE 1,GUIDE 2 L=1250mm /
Í
73
36 KLR-M9125-00 PLATE 2,GUIDE 2 L=1250mm /
Í
74
37 KV1-M9140-A0 PULLEY CONV. ASSY. 4 A
75
38 KV7-M9140-A0 PULLEY CONV. ASSY 2 A
76
8
9
Rear Basis Conveyor 1
Conveyor Section
KLR-1712
10
45
19
5
9
43
3
27
48
16
2
50
37
36
2
8
51
8
14
18
48
19
1
15
5
50
39
44
42
38
46
45
44
9
4
9
3
16
35
36
50
8
12
52
30
47
1
8
46
40
11
38
10
49
46
6
52
46
38
45
31
32
45
44
46
46
25
47
41
11
49
13
46
17
7
35
12
46
38
12
47
34
41
33
17
7
8
10

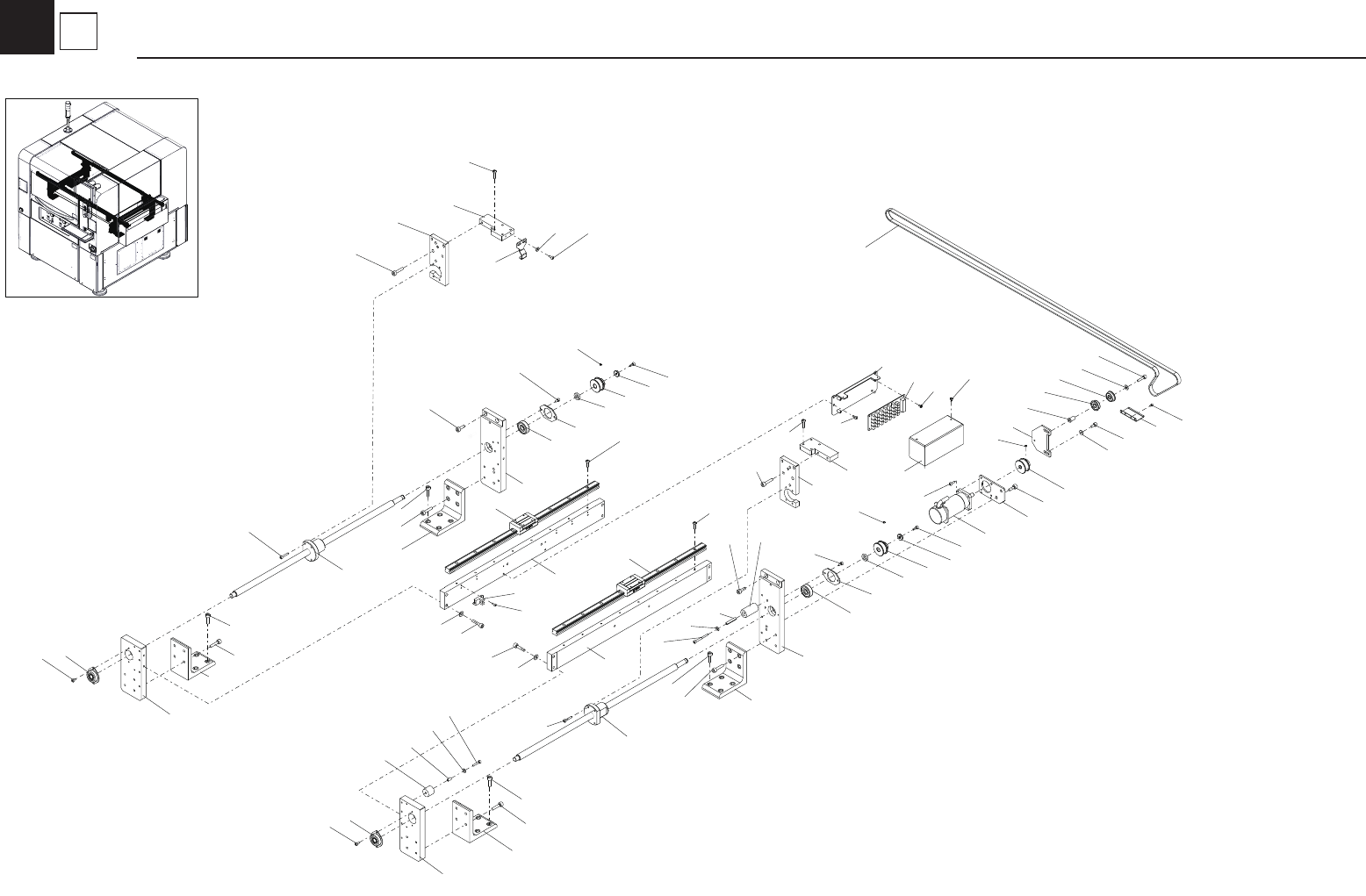

Rear Basis Conveyor 2
Conveyor Section
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90933-01J200 BEARING 2 39 KLR-M9101-00 STAY 1 1 /
Í
2 90990-25J024 BEARING 2 40 KLR-M9102-00 STAY 2 1 /
Í
3 90990-28J076 WASHER,PLAIN 2 41 KLR-M9103-00 STAY 3 2 /
Í
4 90KC1-012506 AC SERVO MOTOR 1 B
Í
42 KLR-M9109-00 BRKT.,MOTOR W 1 /
Í
5 91312-03005 BOLT HEX,SOCKET HEAD 4 43 91312-05020 BOLT HEX,SOCKET HEAD 1
6 91312-03008 BOLT HEX,SOCKET HEAD 2 44 91312-06016 BOLT HEX,SOCKET HEAD 6
7 91312-04006 BOLT HEX,SOCKET HEAD 4 45 91312-06020 BOLT HEX,SOCKET HEAD 16
8 91312-04008 BOLT HEX,SOCKET HEAD 10 46 91312-06025 BOLT HEX,SOCKET HEAD 28
9 91312-04010 BOLT HEX,SOCKET HEAD 6 47 92902-04200 WASHER,PLAIN 4
10 91312-04014 BOLT HEX,SOCKET HEAD 16 48 92902-05200 WASHER,PLAIN 3
11 91312-04018 BOLT HEX,SOCKET HEAD 8 49 92902-06200 WASHER,PLAIN 8
12 91312-04020 BOLT HEX,SOCKET HEAD 9 50 92A08-04303 SCREW SET 6
13 91312-04040 BOLT HEX,SOCKET HEAD 1 51 97602-03306
SCREW PAN HEAD W/WASHER
4
14 91312-05010 BOLT HEX,SOCKET HEAD 2 52 KHY-M9116-00 LM GUIDE 2 /
Í
15 KG7-M9111-01 PULLEY 1 1 /
Í
53
16 KGT-M912D-00 PULLEY 2 /
Í
54
17 KH2-M9121-00 BEARING 2 /
Í
55
18 KHW-M9137-00 COLLAR,BRG. 1 /
Í
56
19 KHW-M9139-00 PLATE,BRG. 2 /
Í
57
20 KLR-M652D-00 SENSOR,W1ORG ASSY 1 B
Í
58
21 KHY-M9104-00 PLATE 1A 1 /
Í
59
22 KHY-M9105-00 PLATE 1B 1 /
Í
60
23 KHY-M9106-00 BRKT.,GUIDE 2 /
Í
61
24 KHY-M9112-00 BRKT.,TENSION 1 /
Í
62
25 KHY-M9115-01 PLATE 1,LINEAR 2 /
Í
63
26 KHY-M911G-01 COVER,TERMINAL 1 /
64
27 KHY-M911Y-01 PLATE,TERMINAL 1 /
Í
65
28 KHY-M9120-00 BELT, W AXIS 1 /
Í
66
29 KHY-M9134-00 COVER,PULLEY 1 /
67
30 KHY-M9150-00 DOG,ORIGIN 1 /
Í
68
31 KHY-M9151-00 DAMPER A 1 /
Í
69
32 KHY-M9152-00 SPACER 1 /
Í
70
33 KHY-M9153-00 DAMPER B 1 /
Í
71
34 KHY-M9154-00 SPACER 1 /
Í
72
35 KHY-M9A00-00 BALL SCREW W(460) 2 /
Í
73
36 90990-41J006 COLLAR W 2 /
Í
74
37 KJJ-M4554-00 TERMINAL BOARD ASSY 1 B
Í
75
38 KLD-M9105-00 STAY 4 /
Í
76
8
10
Rear Basis Conveyor 2
Conveyor Section
