KLR-1712 6 5 28 28 22 25 18 30 15 15 17 3 4 2 1 16 11 15 18 14 19 17 12 13 10 17 15 17 9 18 19 13 18 19 19 18 13 13 29 32 7 8 29 32 31 31 30 16 16 27 23 17 17 26 24 21 17 17 15 15 24 19 15 19 18 13 20 19 18 13 8 3 Main /…
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KHY-M912A-01 BRKT.,SENSOR 1 /
Í
39
2 KHY-M9135-00 PLATE,EDGE 2 14 /
Í
40
3 KHY-M9135-10 PLATE,EDGE 3 2 /
Í
41
4 91312-04010 BOLT HEX,SOCKET HEAD 2 /
Í
42
5 92902-04200 WASHER,PLAIN 2 /
Í
43
6 98702-03005 SCREW,FLAT HEAD 32 /
Í
44
7 KLR-M9160-00 MAIN STOPPER ASSY.R 1 /
Í
45
8 KLR-M9160-10 MAIN STOPPER ASSY.L 1 /
Í
46
9 KLR-M9160-20 MAIN STOPPER ASSY.R 1
L=1460 / PCB length max. 460mm
/
Í
47
10 KLR-M9160-30 MAIN STOPPER ASSY.L 1
L=1460 / PCB length max. 460mm
/
Í
48
11 KHY-M9270-00 EXIT STOPPER ASSY. R 1 /
Í
49
12 KHY-M9270-10 EXIT STOPPER ASSY. L 1 /
Í
50
13 KLR-M9260-10 CLAMP BOARD SUB ASSY 1 /
Í
51
14 KLR-M9260-20 CLAMP BOARD SUB ASSY 1 /
Í
52
15 KLR-M9260-30 CLAMP BOARD SUB ASSY 1
PCB length max. 510mm
/
Í
53
16 KLR-M9260-40 CLAMP BOARD SUB ASSY 1
PCB length max. 510mm
/
Í
54
17 KLR-M9260-50 CLAMP BOARD SUB ASSY 1
PCB length max. 510mm / L to R
/
Í
55
18 KLR-M9260-60 CLAMP BOARD SUB ASSY 1
PCB length max. 510mm / L to R
/
Í
56
19 KHY-M652J-10 SENSOR,ENT ASSY 1 B
Í
57
20 KLR-M6522-00 SENSOR, POS.1 ASSY. 1
projector side & receiver side
B
Í
58
21 KLR-M6523-00 SENSOR, POS.2 ASSY. 1
projector side & receiver side
B
Í
59
22 KHY-M652M-10 SENSOR,EXT ASSY 1 B
Í
60
23 KHW-M9157-00 HOLDER,SENSOR 1 /
Í
61
24 98502-03004 SCREW PAN HEAD 4 62
25 91312-03008 BOLT HEX,SOCKET HEAD 2 63
26 92A08-03303 SCREW SET 1 64
27 97602-03310
SCREW PAN HEAD W/WASHER
4 65
28 KLR-M9280-00 SUB STOPPER ASSY.R 1 <OPTION> /
Í
66
29 KLR-M9280-10 SUB STOPPER ASSY.L 1 <OPTION> /
Í
67
30 KLR-M654A-01 SENS.PU PIN ASSY 1
projector side & receiver side
/
Í
68
31 KLR-M919A-02 BRACKET,PIN SENSOR 2 /
Í
69
32 KLR-M66D0-00 HNS,PU PIN SENS. 1 /
Í
70
33 90166-02JA08 SCREW, PAN HEAD 4 71
34 91312-04006 BOLT HEX,SOCKET HEAD 4 72
35 99009-10400 CIRCLIP 1 73
36 99009-12400 CIRCLIP 1 74
37 75
38 76
8
2
Stopper / Clamp Board / Sensor
Conveyor Section
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLR-M9160-00 MAIN STOPPER ASSY.R 1 /
Í
39
2 KLR-M9160-10 MAIN STOPPER ASSY.L 1 /
Í
40
3 KLR-M9160-20 MAIN STOPPER ASSY.R 1 L=1460 /
Í
41
4 KLR-M9160-30 MAIN STOPPER ASSY.L 1 L=1460 /
Í
42
5 KHY-M9270-00 EXIT STOPPER ASSY.R 1 /
Í
43
6 KHY-M9270-10 EXIT STOPPER ASSY.L 1
[6]'s parts are the same as [5].
/
Í
44
7 KLR-M9280-00 SUB STOPPER ASSY.R 1 Option /
Í
45
8 KLR-M9280-10 SUB STOPPER ASSY.L 1 Option /
Í
46
9 KLR-M9281-00 BRKT.,CYLINDER 1 /
Í
47
10 KLR-M9281-10 BRKT.,CYLINDER 1 /
Í
48
11 KLR-M9281-40 BRKT.,CYLINDER 1 /
Í
49
12 KLR-M9281-50 BRKT.,CYLINDER 1 /
Í
50
13 KHW-M9282-00 STOPPER,SUB 1 /
Í
51
14 KHY-M9166-A0 CYLINDER,MAIN ASSY. 1 /
Í
52
15 KHY-M9284-00 PLATE,STOPPER 1 /
Í
53
16 KHW-M9274-A0 SPEED CONTROLLER 2 /
54
17 91312-04010 BOLT HEX,SOCKET HEAD 2 55
18 91312-05010 BOLT HEX,SOCKET HEAD 2 56
19 91312-05012 BOLT HEX,SOCKET HEAD 2 57
20 KHY-M912A-01 BRKT.,SENSOR 1 /
Í
58
21 KHY-M9271-00 PLATE,STOPPER 1 /
59
22 KHW-M9272-00 STOPPER,EXIT 1 /
60
23 KHY-M9273-00 CYLINDER 1 B
61
24 92902-04200 WASHER,PLAIN 4 /
Í
62
25 KLR-M9281-20 BRKT.,CYLINDER 1 /
63
26 KLR-M9281-30 BRKT.,CYLINDER 1 /
64
27 KHY-M9238-A0 CYLINDER,SUB ASSY. 1 B
Í
65
28 KLR-M6521-00 SENSOR, WAIT ASSY 1 B
Í
66
29 KHM-M654C-01 SENSOR,FIBER 2 1 B
Í
67
30 KLR-M6521-A0 SENS.WAIT AMP ASSY 1 B
Í
68
31 92A08-03303 SCREW SET 1 69
32 98502-03004 SCREW PAN HEAD 2 70
33 71
34 72
35 73
36 74
37 75
38 76
8
3

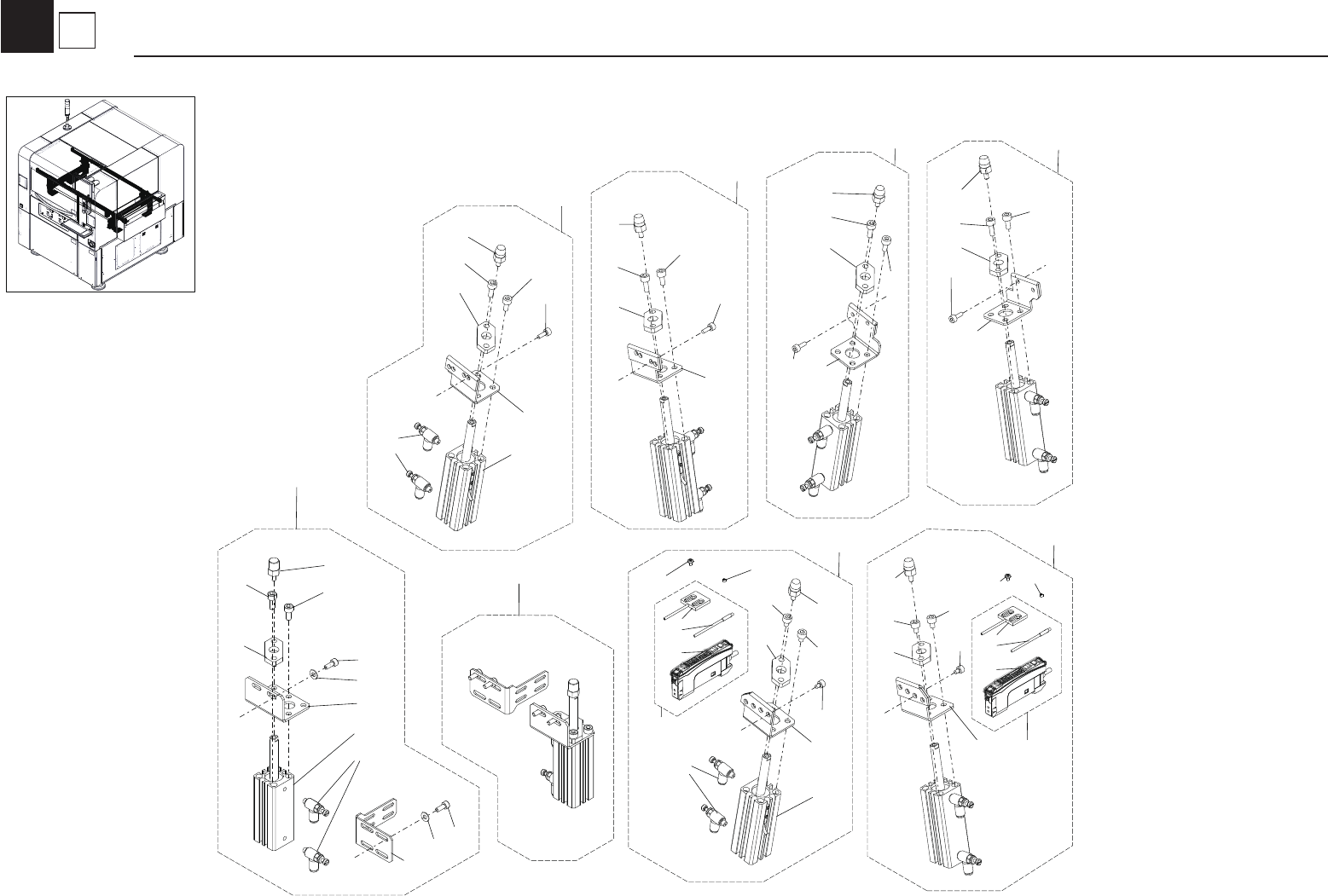

Main / Exit / Sub Stopper
Conveyor Section
