KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLR-M9260-50 CLAMP BOARD SUB ASSY 1
for front (near) side
/
Í
39
2 KLR-M9260-60 CLAMP BOARD SUB ASSY 1
for back (far) side
/
Í
40
3 KHW-M9167-00 BRKT.,CYL. 1 /
Í
41
4 KHY-M926F-00 JOINT , CYL. BRKT 1 /
Í
42
5 KHW-M916E-00 BUSH 1 /
Í
43
6 KHW-M916F-00 SHAFT 1 /
Í
44
7 KHY-M926H-00 JOINT, CYL. 1 /
Í
45
8 KHW-M9261-01 PLATE1,LINK 2 /
Í
46
9 KLR-M9262-40 PLATE,BASE S 1 /
Í
47
10 KLR-M9262-30 PLATE,BASE S 1
for front (near) side
/
Í
48
11 KHY-M9263-00 CYLINDER 1 B
Í
49
12 KHW-M9264-A0 LINK A ASSY. 2 /
Í
50
13 KHW-M9264-B0 LINK B ASSY. 2
for front (near) side
/
Í
51
14 KHW-M9265-00 SPACER 4 /
Í
52
15 KLR-M9269-00 BRKT.,CYL. 1 /
Í
53
16 KLR-M9269-10 BRKT.,CYL. 1
for front (near) side
/
Í
54
17 KHW-M926A-00 COLLAR 2 /
Í
55
18 KHW-M926B-00 COLLAR, JOINT 1 /
Í
56
19 KLR-M926C-01 PLATE,BOARD CLAMP 1 /
Í
57
20 KHW-M926E-00 NUT 1 /
Í
58
21 KLR-M926G-11 PLATE 2,LINK 1 /
Í
59
22 KHY-M926S-A0 SPEED CONTROLLER 2 /
Í
60
23 KV7-M9266-01 GUIDE 3 A
Í
61
24 KHY-M926M-00 STOPPER, CYLINDER 1 /
Í
62
25 90169-02JB04 SCREW, BINDING HEAD 12 /
Í
63
26 92012-04012 BOLT, BOTTON HEAD 1 64
27 90440-10J050 CIRCLIP 1 65
28 91312-04010 BOLT HEX,SOCKET HEAD 4 66
29 91312-04012 BOLT HEX,SOCKET HEAD 6 67
30 91312-04014 BOLT HEX,SOCKET HEAD 7 68
31 95302-06600 NUT HEXAGON 1 69
32 98902-03005 SCREW BINDING HEAD 4 70
33 71
34 72
35 73
36 74
37 75
38 76
8
6
Clamp Board 50 /60
Conveyor Section
KLR-1712
8
21
43
46
35,51
30,49
8
19
35,51
19
43
2
6
42
11
18
41
9
14
34
8
16
4
41
13
29,48
37
17
5
44
7
30,49
4
39
28,47
4
31,50
45
36,52
33
45
18
10
12
42
41
13
41
5
37
41
38
29,48
3
4
15
42
18
4
15
29,48
44
28,47
39
8
4
39
4
30,49
31,50
36,52
7
4
46
40
45
32
33
45
7
6
18
1
42
29,48
3
8
4
30,49
39
4
14
8
8
7

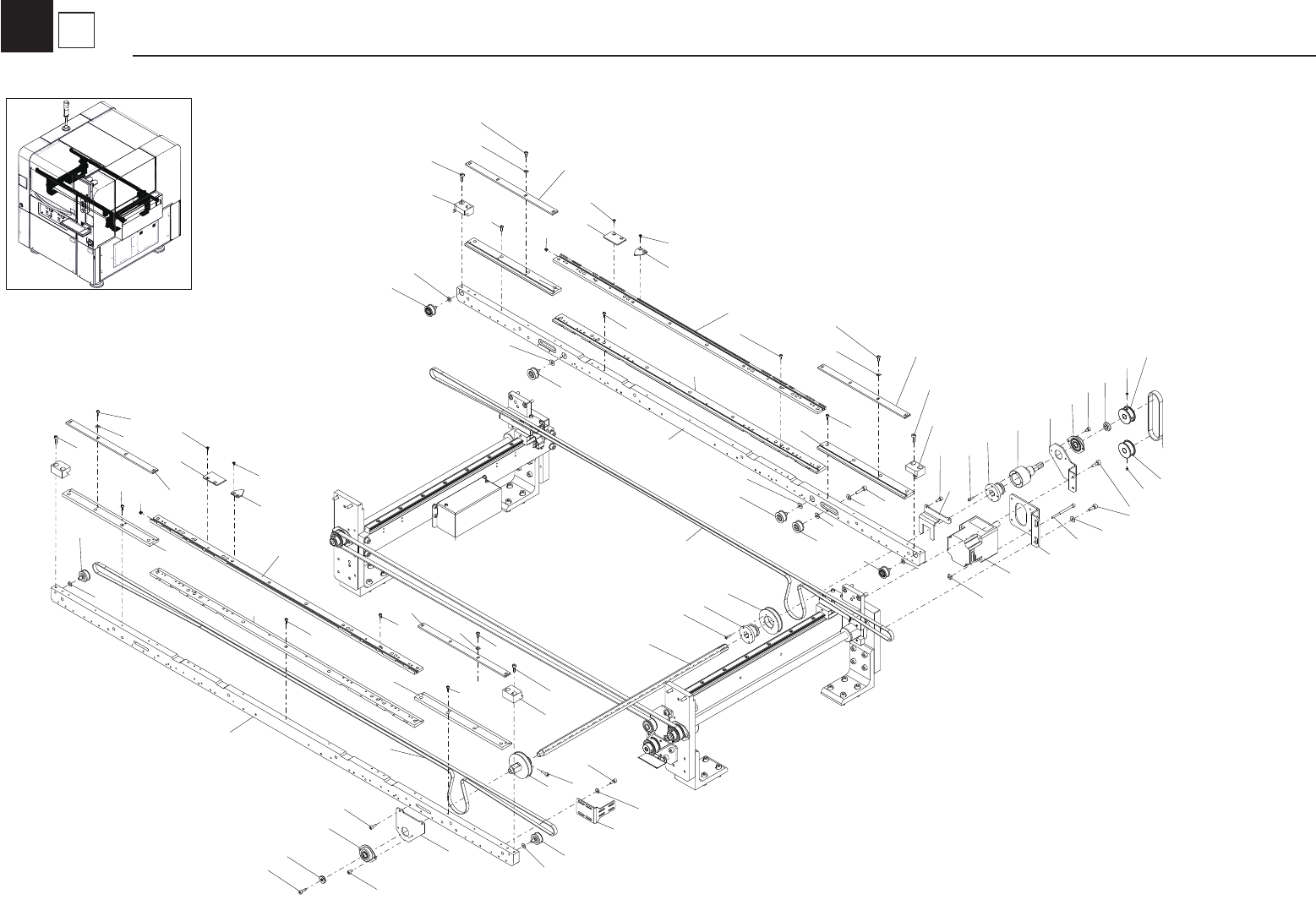

Front Basis Conveyor 1
Conveyor Section
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90990-28J076 WASHER,PLAIN 1 39 92902-03200 WASHER,PLAIN 16
2 90990-41J006 COLLAR 1 40 92902-04200 WASHER,PLAIN 2
3 91312-03006 BOLT HEX,SOCKET HEAD 16 41 92902-05200 WASHER,PLAIN 10
4 91312-03008 BOLT HEX,SOCKET HEAD 46 42 92902-05600 WASHER,PLAIN 4
5 91312-03010 BOLT HEX,SOCKET HEAD 8 43 92A08-04303 SCREW SET 4
6 91312-04006 BOLT HEX,SOCKET HEAD 4 44 95302-03700 NUT HEXAGON 52
7 91312-04010 BOLT HEX,SOCKET HEAD 6 45 98702-03005 SCREW,FLAT HEAD 32
8 91312-04012 BOLT HEX,SOCKET HEAD 10 46 KHY-M9135-10 PLATE,EDGE 3 2
9 91312-05014 BOLT HEX,SOCKET HEAD 4 47 KHY-M9121-10 FRAME,CONVEYOR 2 L=1460mm /
Í
10 91312-05020 BOLT HEX,SOCKET HEAD 2 48 KHY-M9123-10 GUIDE 1 4 L=1460mm /
Í
11 91317-04055 BOLT HEX,SOCKET HEAD 4 49 KHY-M9126-10 GUIDE 1-1 4 L=1460mm /
Í
12 KG2-M9105-00 PULLEY 1,SPLINE 1 /
Í
50 KHY-M9129-10 BELT 1,CONVEYOR 2 L=1460mm E
13 KG2-M9108-11 COLLAR CONVEYOR 2 /
Í
51 KLR-M9124-10 PLATE 1,GUIDE 2 L=1460mm /
Í
14 KGA-M9113-00 GUIDE 1,END 2 /
52 KLR-M9125-10 PLATE 2,GUIDE 2 L=1460mm /
Í
15 KGA-M9114-00 GUIDE 2,END 2 /
53
16 KGK-M9170-00 DC MOTOR ASSY. 1 B
Í
54
17 KGT-M9193-00 NUT PLATE 4 /
Í
55
18 KGY-M9140-A0 PULLEY CONV. ASSY. 4 A
Í
56
19 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2 /
Í
57
20 KH2-M9121-00 BEARING 2 /
Í
58
21 KHW-M9146-00 BELT(249-3GT-9) 1 /
Í
59
22 KHY-M9110-00 BRKT.,CONV.MOTOR 1 /
Í
60
23 KHY-M9111-00 BRKT.1,SPLINE 1 /
Í
61
24 KHY-M9113-00 PULLEY 1,MOTOR 1 /
Í
62
25 KHY-M9117-00 SPLINE 1 1 /
Í
63
26 KHY-M9118-00 BRACKET F,COLLAR 1 /
Í
64
27 KHY-M9119-00 BRKT.2,SPLINE 1 /
Í
65
28 KHY-M9121-00 FRAME,CONVEYOR 2 L=1250mm /
Í
66
29 KHY-M9123-00 GUIDE 1 4 L=1250mm /
Í
67
30 KHY-M9126-00 GUIDE 1-1 4 L=1250mm /
Í
68
31 KHY-M9129-00 BELT 1,CONVEYOR 2 L=1250mm E
69
32 KHY-M912A-01 BRKT.,SENSOR 1 /
Í
70
33 KHY-M9135-00 PLATE,EDGE 2 14 /
71
34 KHY-M9157-00 SHAFT,MOTOR 1 /
Í
72
35 KLR-M9124-00 PLATE 1,GUIDE 2 L=1250mm /
Í
73
36 KLR-M9125-00 PLATE 2,GUIDE 2 L=1250mm /
Í
74
37 KV1-M9140-A0 PULLEY CONV. ASSY. 4 A
75
38 KV7-M9140-A0 PULLEY CONV. ASSY 2 A
76
8
7
Front Basis Conveyor 1
Conveyor Section
