KLR-1712 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 $BF4-M3 JOINT 2 39 92902-04200 WASHER,PLAIN 6
2 $NK-2N NYLON CLIP 7 40 98702-03006 SCREW,FLAT HEAD 4
3 $UY4 JOINT 2 41 98902-03005 SCREW BINDING HEAD 8
4 90172-00J040 WASHER, EXTL, TOOTHED 6 42 98902-03008 SCREW BINDING HEAD 3
5 90563-03J050 SPACER 4 43 98902-03010 SCREW BINDING HEAD 4
6 90990-11J003 SCREW, PAN HEAD W/W 3 44 98902-03016 SCREW BINDING HEAD 2
7 90990-11J005 SCREW, PAN HEAD W/W 6 45
8 90990-11J006 SCREW, PAN HEAD W/W 3 46
9 90990-11J007 SCREW, PAN HEAD W/W 2 47
10 91312-03012 BOLT HEX,SOCKET HEAD 4 48
11 91312-03016 BOLT HEX,SOCKET HEAD 6 49
12 91312-04008 BOLT HEX,SOCKET HEAD 2 50
13 91312-04012 BOLT HEX,SOCKET HEAD 14 51
14 91312-05016 BOLT HEX,SOCKET HEAD 11 52
15 KGE-M9333-00 MOTOR ASSY 1 B
Í
53
16 KGE-M9339-00 BASE,MIRROR 1 /
Í
54
17 KGE-M9340-00 MIRROR 1 /
Í
55
18 KK3-M9332-00 SENSOR 2 EE-SY 672 B
56
19 KKX-M3762-00 VACUUM GAUGE 1 B
57
20 KLC-M13M1-00 MAGNET 2 /
58
21 KLR-M9301-00 STAY 1 1 /
59
22 KLR-M9303-00 PLATE 1 1 /
Í
60
23 KLR-M9304-00 DIFFUSER 1 /
61
24 KLR-M9307-00 PLATE,MOTOR 1 /
Í
62
25 KLR-M9308-00 PLATE 2 1 /
Í
63
26 KLR-M9311-00 PLATE 3 1 /
Í
64
27 KLR-M9316-00 PLATE 4 1 /
Í
65
28 KLR-M9317-00 PLATE 5 2 /
Í
66
29 KLR-M9318-00 PLATE 6 1 /
Í
67
30 KLR-M9319-00 PLATE 7 1 /
Í
68
31 KLR-M9326-00 GUIDE 1 2 /
69
32 KLR-M9327-00 BALL PLANGER 2 /
70
33 KLR-M9328-00 PLATE,SENSOR 1 /
Í
71
34 KLR-M9331-00 GEAR 1 1 /
Í
72
35 KLR-M9334-00 PLATE,BLIND 1 /
73
36 KLR-M9335-00 VACUUM GENERATOR 1 A
Í
74
37 KW7-M9360-00 DOT ST. BOARD ASSY 1 B
Í
75
38 91312-06016 BOLT HEX,SOCKET HEAD 4 76
10
3

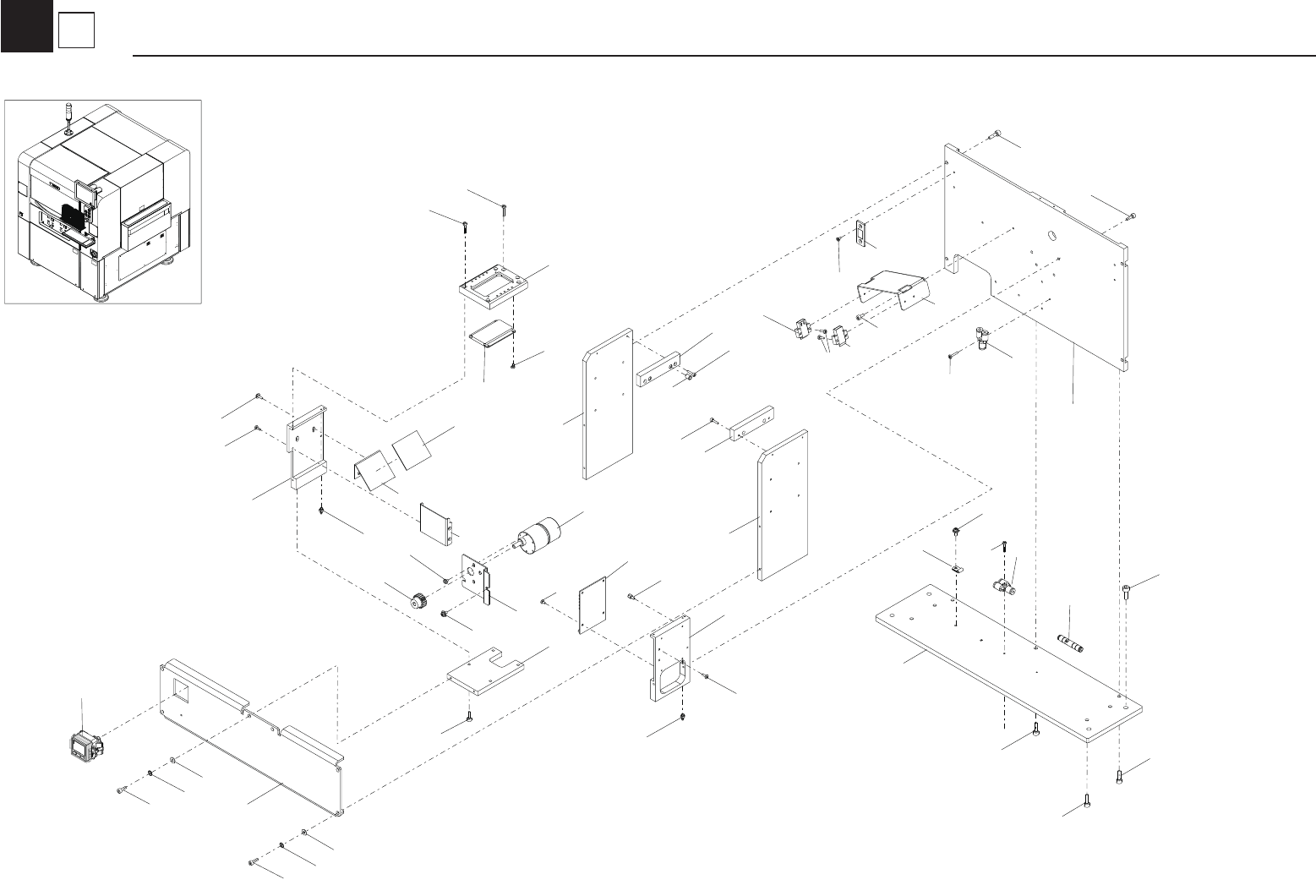

DST Stage assy
Dot Station
