YSD配件清单 - 第8页
KLR-1712 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KLR-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLR-M1301-01 COVER 1 1
/
Í
39
2 KLR-M130C-02 STAY,BRKT.KB 1
/
Í
40
3 KLR-M130E-00 DOOR,KEY BOARD 1 /
41
4 KLR-M130F-00 PLATE,HOLE 1 <NORMAL> /
Í
42
5 90990-23J028 GROMMET 1 <OPTION> /
43
6 KLR-M1128-00 BRACKET,USB CABLE 1 /
Í
44
7 KGJ-M1350-00 SPACER,MINI LATCH 1 /
45
8 KGJ-M1351-01 PLATE,MINI LATCH 1 /
46
9 KW3-M1349-00 MINI LATCH 1 /
47
10 91312-04005 BOLT HEX,SOCKET HEAD 4 48
11 92902-04200 WASHER,PLAIN 6 49
12 98902-04008 SCREW BINDING HEAD 2 50
13 90990-12J001 SCREW, BIN. HEAD W/W 37 51
14 98902-03004 SCREW BINDING HEAD 2 52
15 90440-01J020 CIRCLIP 2 53
16 KLR-M1302-00 COVER 2 1 /
Í
54
17 KLR-M1309-A1 COVER 9 ASSY. 1
see next page "2-2".
/
55
18 KLR-M1315-01 BRACKET 15 1 /
Í
56
19 KLR-M1316-01 BRACKET 16 1 /
Í
57
20 KLR-M1331-02 COVER,PANEL 31 1
/
Í
58
21 KLR-M13M1-00 PLATE M1 2 /
59
22 KLR-M13M3-00 BRACKET M3 2 /
60
23 KLA-M4128-00 GUIDE,PCB 2 /
61
24 KLR-M130B-00 COVER,SW 1 /
Í
62
25 KLR-M13D6-00 SEAL1(YSD) 1 /
63
26 90K41-001290 LABEL,WARNING 1 /
64
27 KV5-M1130-00 CATCH MG. 2 /
65
28 98902-03005 SCREW BINDING HEAD 4 66
29 KH1-M1396-00 WASHER 4 /
67
30 91312-04008 BOLT HEX,SOCKET HEAD 4 68
31 KLR-M8200-00 OPERATION PANEL 1
see next page "2-3".
/
Í
69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
2
1

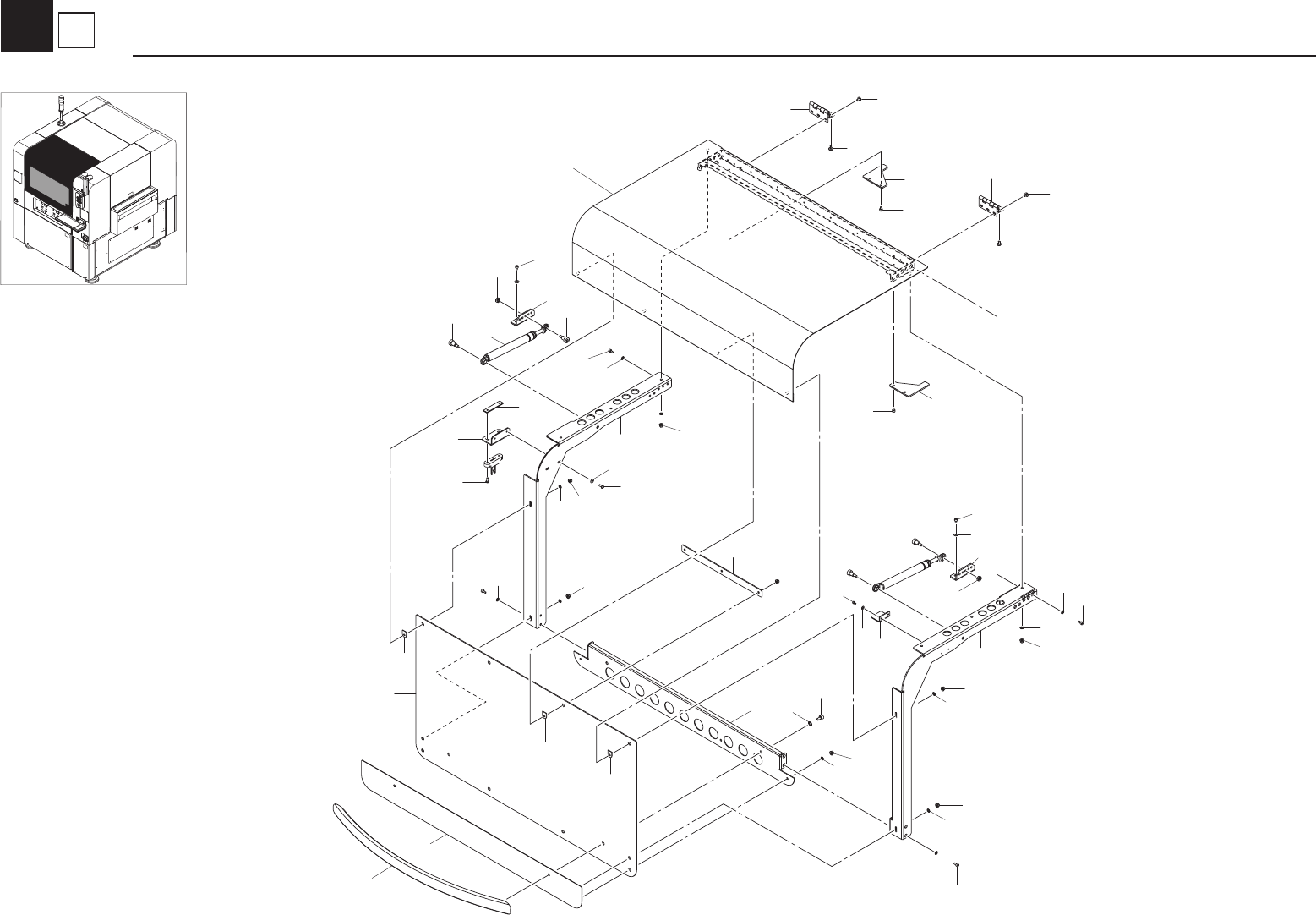

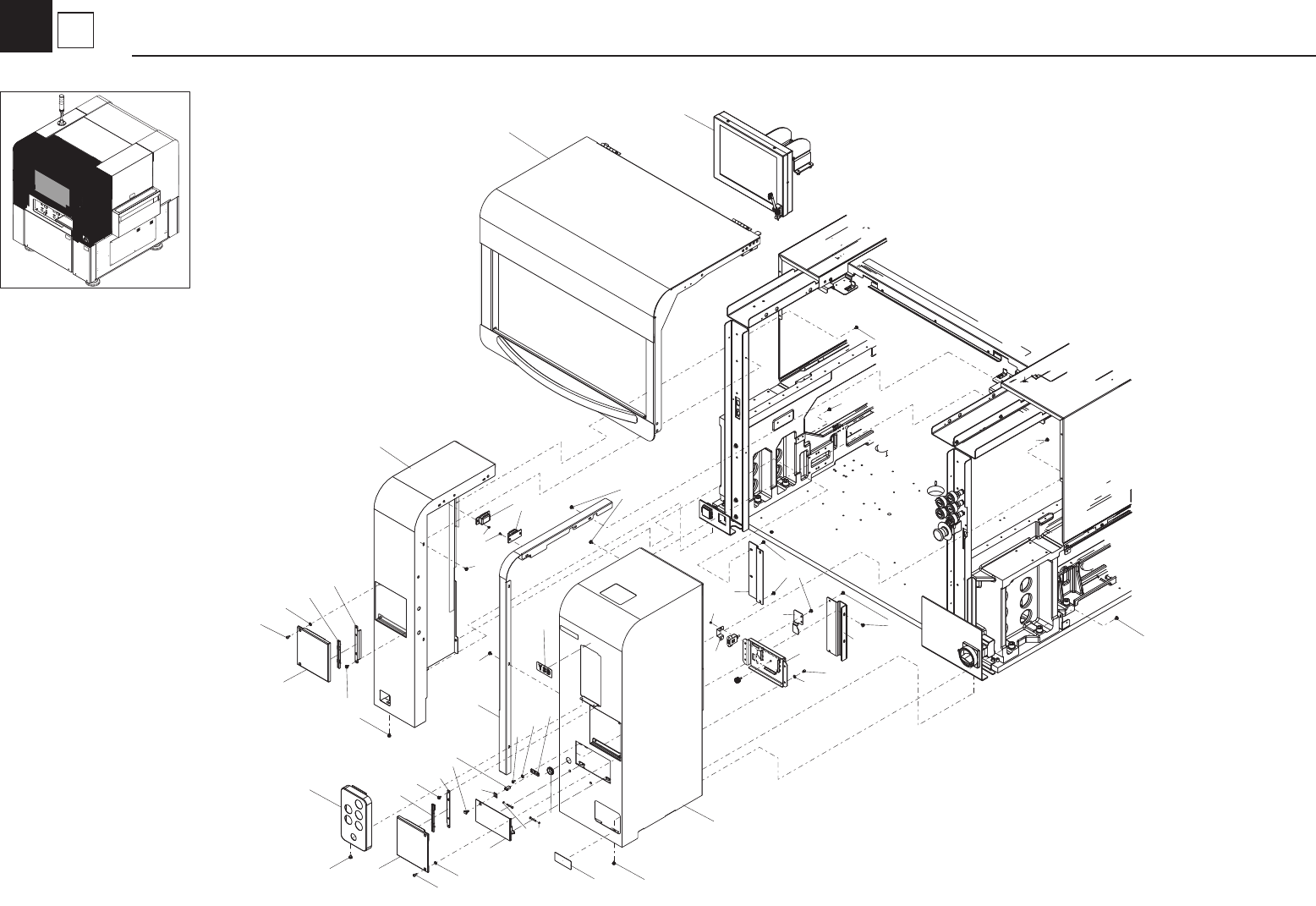

Upper Front Cover
Cover
