SITEST for WPC4
Teaching the Zero Point SITEST Machine Data
Service Manual SIPLACE WPC4
95

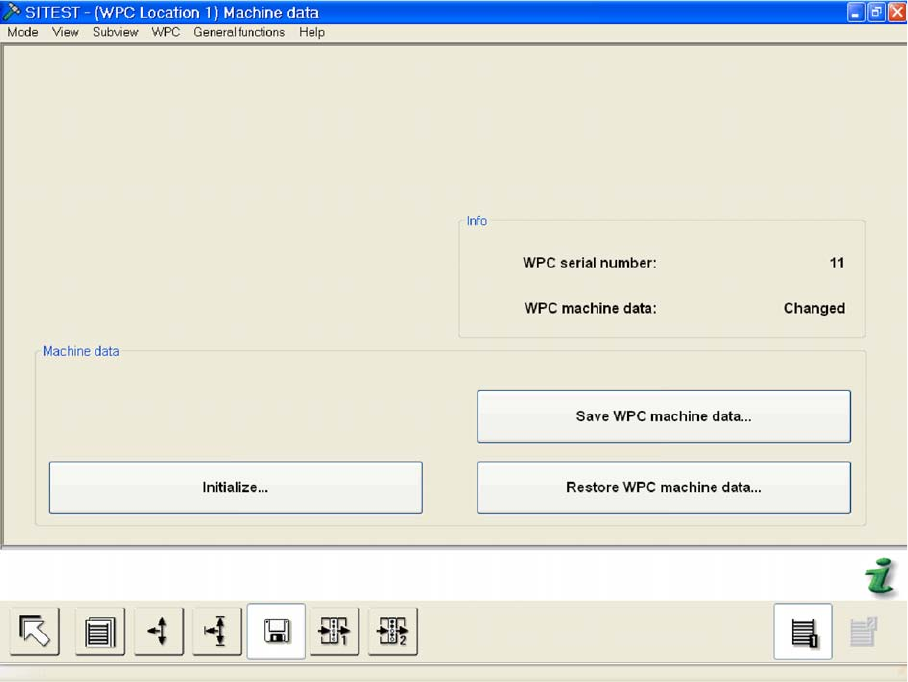

5.10 SITEST Machine Data
Menu field: Info
WPC serial number: Shows the WPC serial number.
WPC machine data: Shows the current status of the WPC machine data.
Menu field: Machine data
Initialize...: Opens a dialog box in which the WPC serial number can be entered.
Save WPC machine data...: Opens a dialog box in which you can save the WPC machine data as
a file, in a folder of your choice.
Restore WPC machine data... Opens a dialog box in which you can restore (import) the saved WPC
machine data.
SITEST for WPC4
SITEST Machine Data Initialize
96 Service Manual SIPLACE WPC4

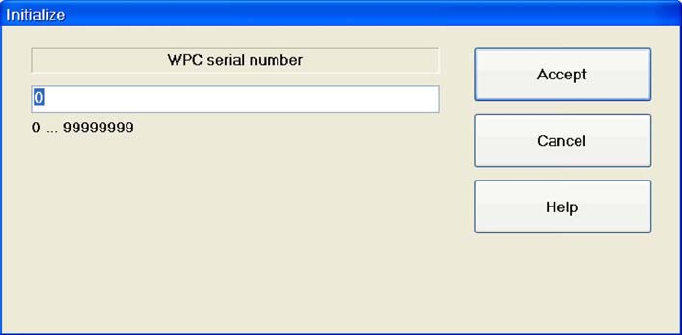

5.10.1 Initialize
WPC serial number: Enter the WPC serial number here.
The serial number can be found on the WPC frame.
Accept: Confirms the entry and closes the dialog box.
Cancel: closes the dialog box and rejects the entry.
SITEST for WPC4
Saving WPC Machine Data SITEST Machine Data
Service Manual SIPLACE WPC4
97

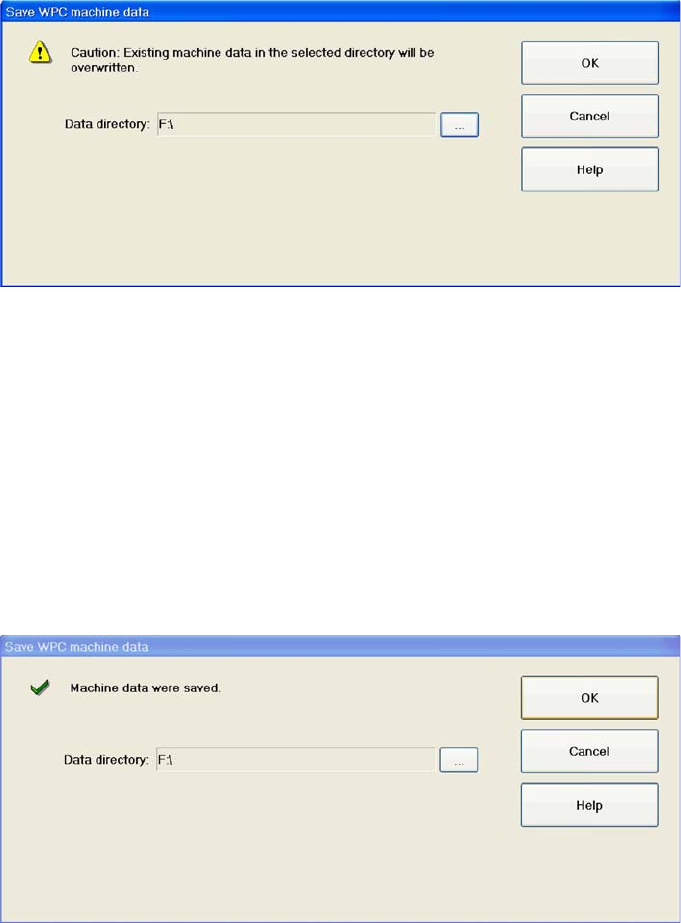

5.10.2 Saving WPC Machine Data
The current WPC machine data can be saved as a file in a folder of your choice. The file is named
'WPC.ma'.
OK : Activates the procedure for saving the WPC machine data and then closes the dialog box.
Cancel: Closes the dialog box without saving the WPC machine data.
Saving the machine data
X Select
OK
.
X Select the target folder in which the machine data backup file is to be saved and confirm your choice
in both dialog boxes, with
OK
.
The WPC machine data will now be saved.The following message will be shown after the data has been
successfully saved.
X Close the dialog box with
OK
.
