It can be paired with Scantech’s automated 3D inspection system, enabling effortless deployment and intelligent control to conduct automated batch inspections. Automated 3D system 17 18

Exceptional User Experience

Step 1

Wireless Connection

No cables are needed—just power on

the device and router to start using.

Quick Calibration

Only 20 seconds needed to calibrate.

One-Click Scanning

Smart button control—no need to

operate a computer.

Transport to the site

Compact, carry-on-sized protective

case for easy transport.

Optional versatile case for storing

3D scanner, scale, and accessories

securely.

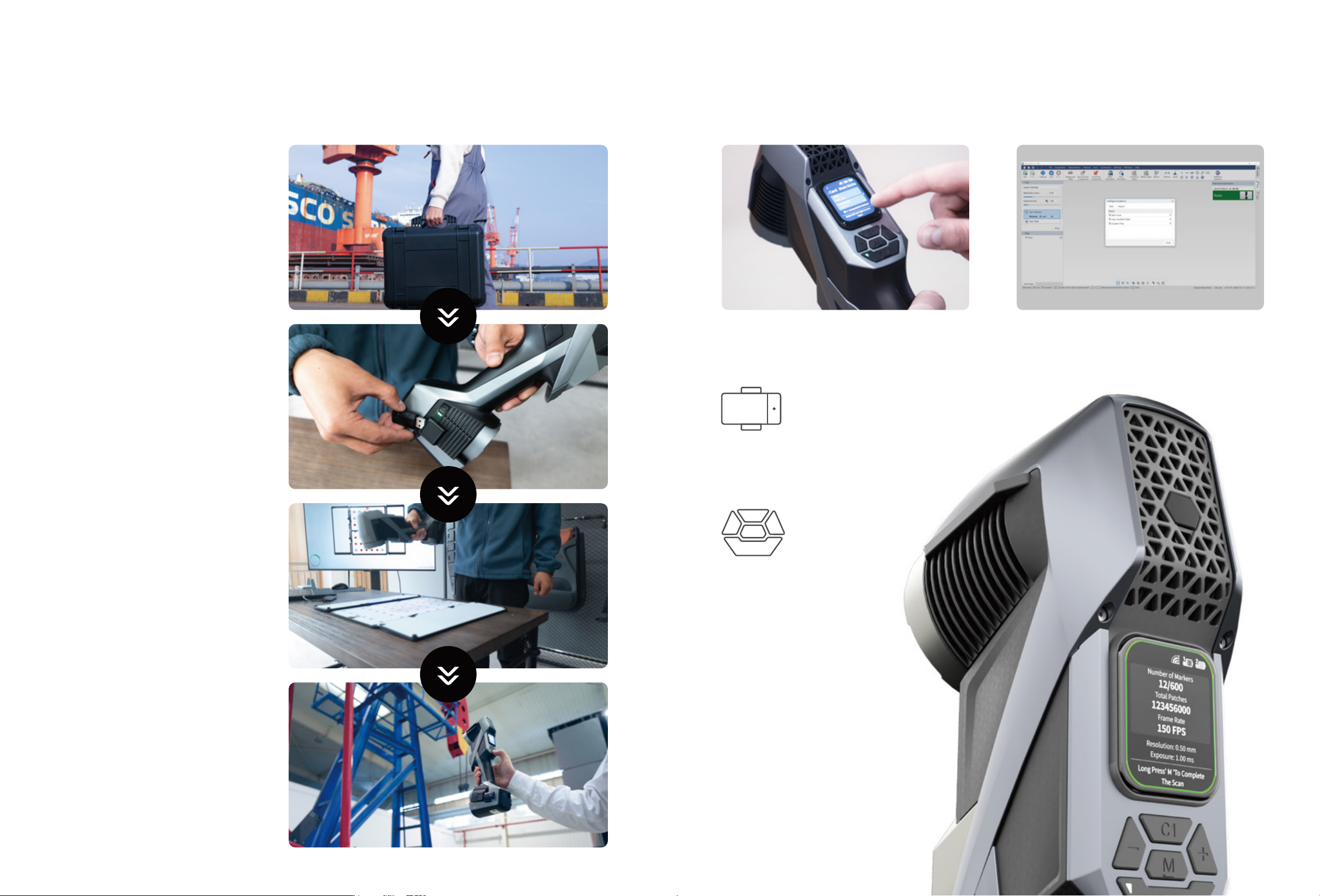

Built-In Touchscreen

Check status of 3D scanners and view software

prompt on full-color touchscreen with an

intuitive user interface.

Smart Guidance

Phone Holder

C1 Custom Button

Get started quickly with DeﬁnSight software

and customized guidance, cutting down on

training time and making adoption smoother.

Step 2

Step 3

Step 4

13 14

Get the Most of 3D Scanning

KSCAN-E Technical Speciﬁcations

Quick Start

Deﬁnsight connects effortlessly to the

3D scanner, enabling fast setup and

immediate use.

Easy to Use

Scan mode

Ultra-fast scanning

108 blue laser lines (Quad Cross Technology)

Hyperﬁne scanning 17 blue parallel laser lines

Large area scanning 38 infrared laser lines

Deep hole scanning 1 extra blue laser line

Hole & edge inspection Smart edge inspection

Photogrammetry

Accuracy

Scanning rate up to

Scanning area up to 1440 mm × 1000 mm

8,290,000 measurements/s

Volumetric accuracy

Shape Error

Working distance

Connection

Environment Adaptability

Patent

Interface mode

Wireless standard

Wireless connection

Intelligent and wireless mode

Uninterrupted Power Supply

Operating environment

Operating temperature range

Operating humidity

Protection rating

Fanless, suitable for workshop environments

-10°C – 40°C

10 - 90% RH

IP50

USB3.0 Type-B

Wi-Fi 6，802.11a/b/g/n/ac

Support Dual WNIC

Support

Object size 0.050 m – 8 m

Laser class

ClassⅡ (eye-safe)

Resolution up to 0.010 mm

Dimension 344 mm × 124 mm × 99 mm

Standard 0.015 mm + 0.030 mm/m

0.015 mm + 0.015 mm/m

Paired with MSCAN-L15

Sphericity 0.030 mm

Flatness

Large area scanning

Ultra-fast scanning

Hyperﬁne scanning

600 mm – 1500 mm (Stand-off distance 900 mm)

200 mm – 700 mm (Stand-off distance 320 mm)

150 mm – 300 mm (Stand-off distance 220 mm)

0.050 mm

0.015 mm + 0.012 mm/m

0.020 mm

Adaptive photogrammetry

Automatically adjusts exposure

settings to suit different surfaces,

eliminating manual tweaks.

Smooth Scanning

Real-time scanning and encapsula-

tion of 3D data ensure a smooth,

uninterrupted workﬂow.

High-Resolution Detail

Supports real-time mesh visualiza-

tion for faster data capture and ﬁner

data quality.

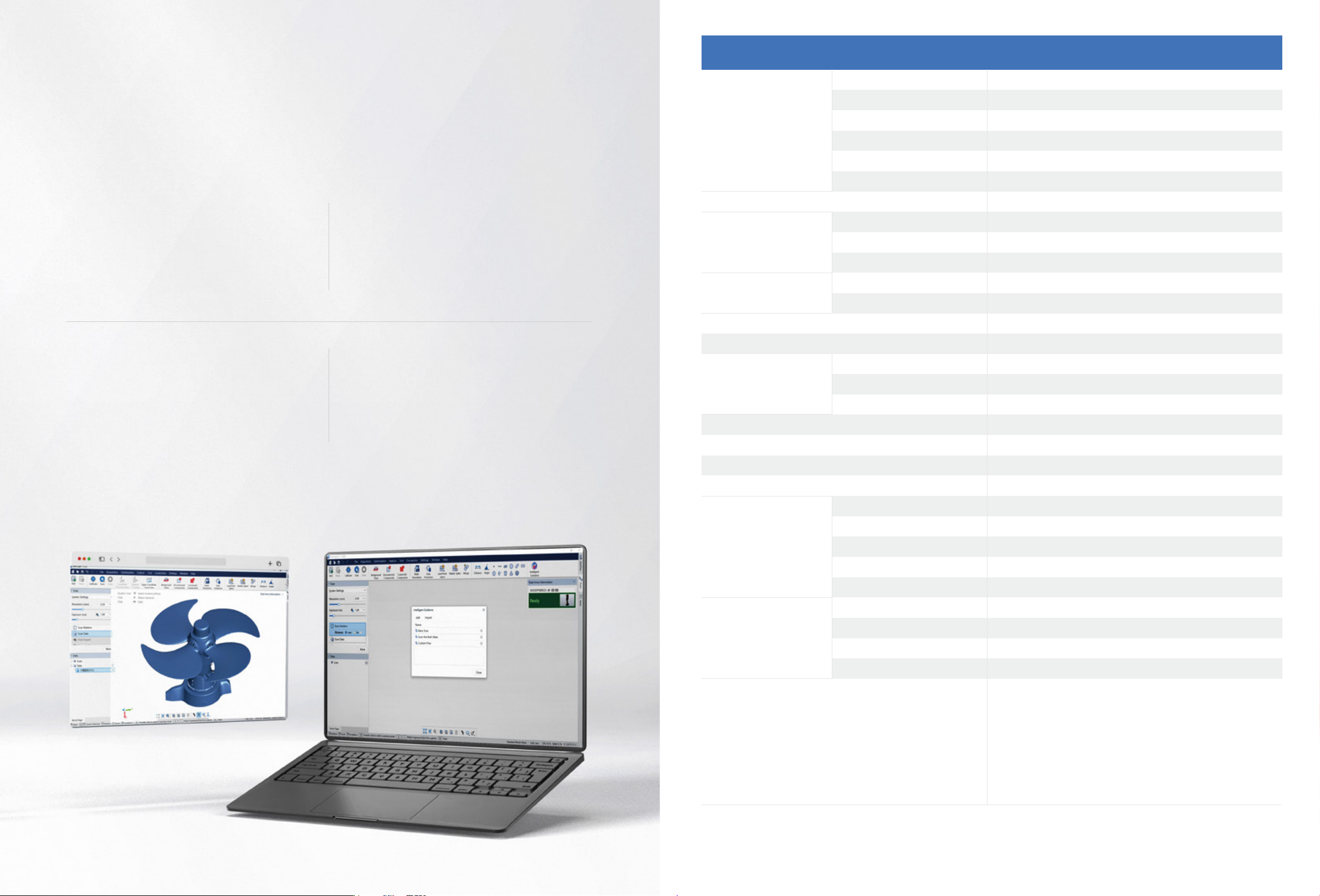

DeﬁnSight powers 3D scanners with its all-in-one metrology platform, enabling advanced 3D scanning and

inspection. Its intuitive interface, high compatibility, and efﬁcient data processing work seamlessly with the

scanner, delivering faster, more precise, and highly detailed 3D data capture and analysis.

15 16

CN204329903U, CN104501740B, CN104165600B, CN204988183U,

CN204854633U, CN204944431U, CN204902788U, CN105068384B,

CN105049664B, CN204902784U, CN204963812U, CN204902785U,

CN204902790U, CN106403845B, CN209197685U, CN209263911U,

CN106500627B, CN106500628B, CN206132003U, CN206905709U,

CN107202554B, CN209310754U, CN209485295U, CN209485271U,

CN305446920S, CN209991946U, US10309770B2, KR102096806B1,

KR102209255B1, US10914576B2, CN113470180B, CN113218417B,

CN113063370B, CN218411073U, CN113310427B, CN113074659B,

CN218772495U, CN113473034B, CN115830249B, CN219829786U,

CN116206069B

(1) ISO 17025 accredited: Performance is evaluated based on JJF1951 speciﬁcation, VDI/VDE 2634 Part 3 and ISO 10360-13 standard.

(2) Paired with 800-mm high-precision scale bar.

*Our company reserves the right to interpret and modify the parameters and images in this manual within the scope of law.

(1)

Adaptive photogrammetry

(2)

(1)

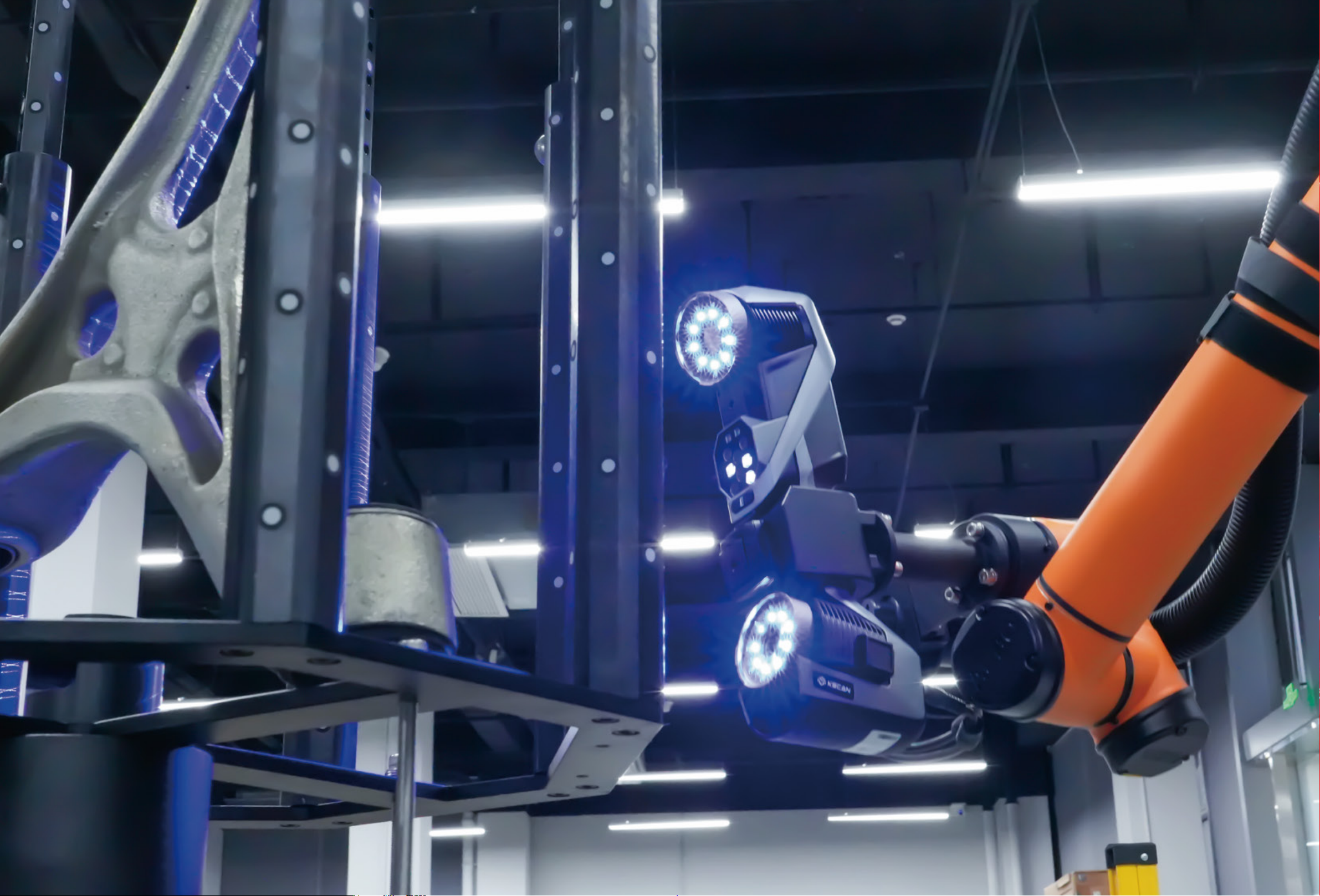

It can be paired with Scantech’s automated 3D inspection system,
