Hole & Edge High-precision grayscale recognition for various holes and slots. Supports both laser and grayscale measurements. Ideal for measuring edges of stamping parts and i r regular parts. Complex Grooves Deep-ho…
Fine Details
Hyper-fine scanning with parallel blue lasers, perfect for capturing intricate details of parts
such as injection molds and gear teeth with exceptional precision.
Large Parts
Adaptive photogrammetry system to eliminate cumulative errors, excellent for
measuring large parts such as car body and heavy equipment.
Infrared large-area scanning to reduce the number of targets and enhance efficiency.
Scan Anything, Anytime
07 08
-Ensure high volumetric accuracy even in complex, large-scale environments
-Support target optimization through scale bar
-38 infrared laser lines
-Max working distance of up to 1.5 m
-Large scan area of up to 1440 mm * 1000 mm
KSCAN-E is robust, flexible and versatile, ideal for scan-
ning small to large objects wherever you are. With 4×27
quad-cross blue laser lines, the KSCAN-E allows for rapid
data capture without compromising accuracy.
Hole & Edge
High-precision grayscale recognition for various holes and slots.
Supports both laser and grayscale measurements.
Ideal for measuring edges of stamping parts and irregular parts.
Complex Grooves
Deep-hole scanning mode with a single laser line easily scans hard-to-mea-
sure areas such as engine cylinders and internal grooves of cast parts.
Various Applications
Aerospace Automotive
Railway and Ships Mold
Energy & Heavy Industry Non-industry
09 10

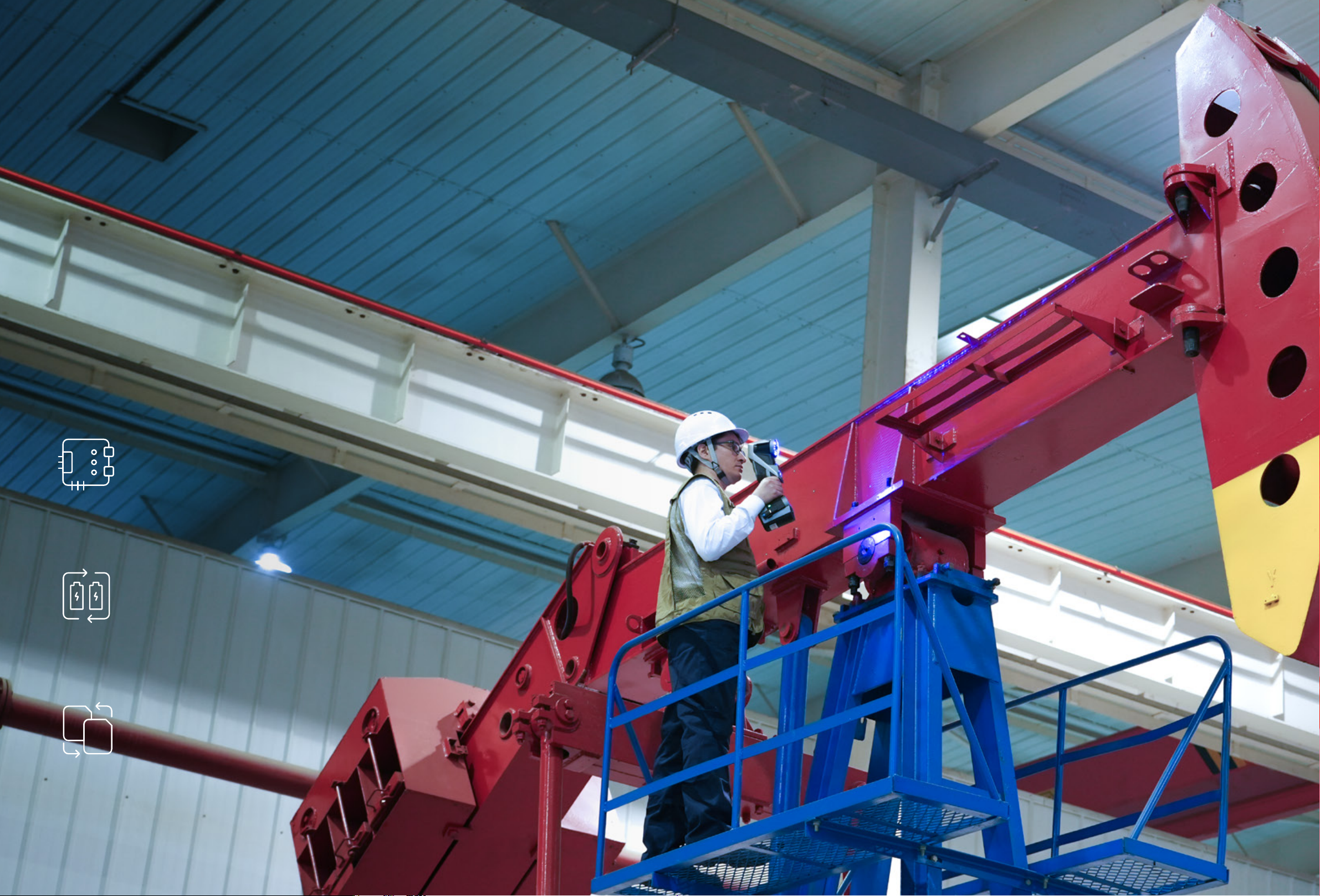

Fully Wireless
KSCAN-E's lightweight design and one-handed operation make it easy to use, even in complex
measurement scenarios. Fully wireless and highly versatile, it’s perfect for locations with limited
or no access to power. Whether you are in the lab, at the workshop, or working in the field, you
can enjoy true freedom to capture precise 3D data with incredible ease.
Built-in computing module for
on-board data processing
Built-in battery supports dual
power supply cycles
Dual WNIC design for high-speed
data transmission
