2 WF 1 TX-Series Maintenance Empty and clean nozzle reject bin 2 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T2
Wear Part: Consumables:
C3
www.asm-smt.com
1 Remove the nozzle reject bin. 2 Empty the reject bin into a waste box. 3 Clean the reject bin.
4 Return the reject bin and repeat steps for
all gantries.
www.asm-smt.com

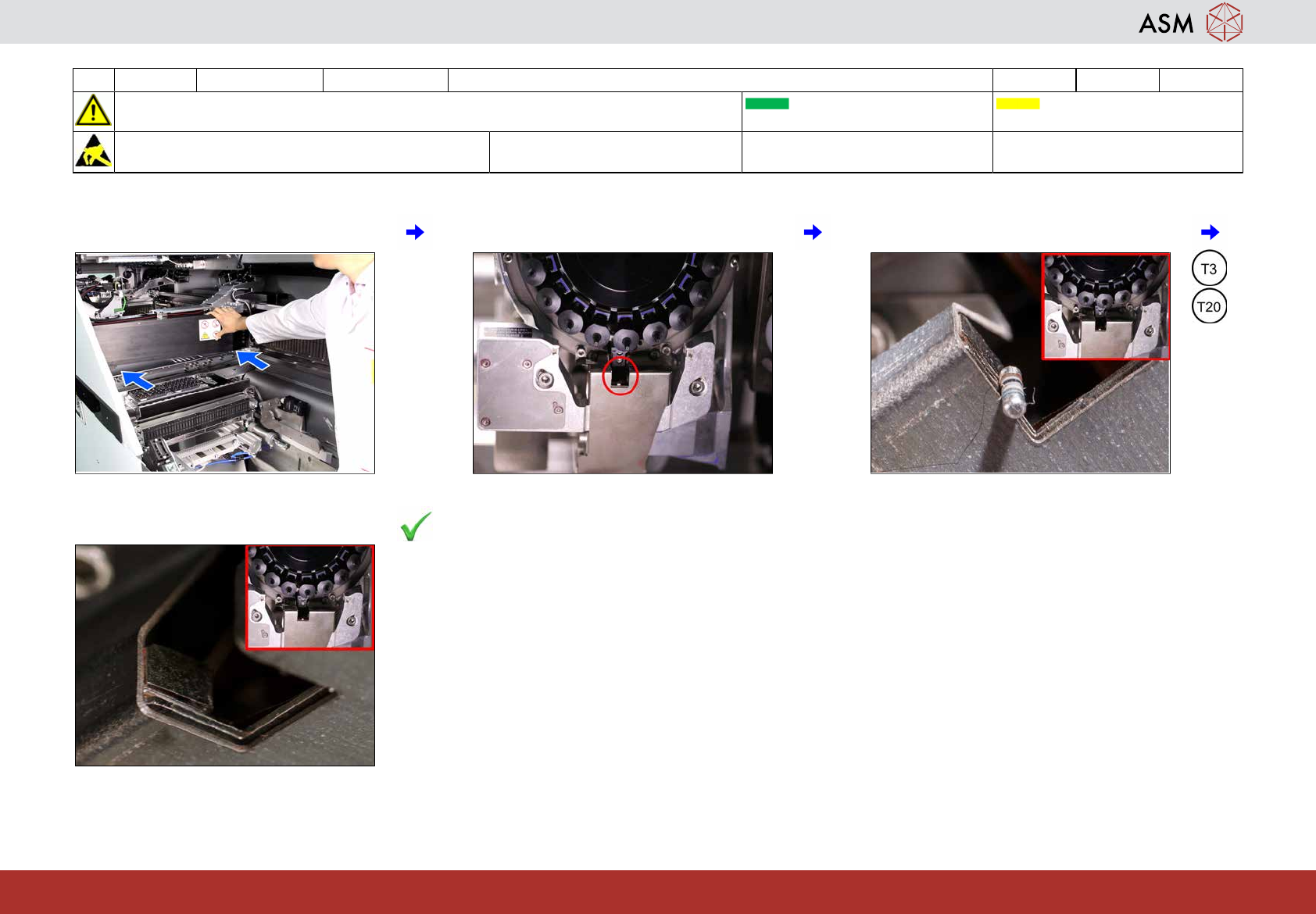

3 WF 1 TX-Series Maintenance Cleaning the Z-Axis C&P20 P 2 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T3, T20
Wear Part: Consumables:
www.asm-smt.com
1 Move the gantries to the end limit. 2 Area of the head to be cleaned. 3 Remove any components from Z-Axis.
4 If OK → next job.
