SIPLACE HF Series Head Reconfiguration Kits 2 Retrofit in structions - SIPLACE HF seri es head reconfiguration kits 05/2006 Edition 91 : Fit the nozzle changer extension on t he in side of the placement machine. 2 2 : Re…
2 Retrofit instructions - SIPLACE HF series head reconfiguration kits SIPLACE HF Series Head Reconfiguration Kits
05/2006 Edition
90
: Remove the fiducial plate, if present.
2
The fiducial plate is very heavy. 2
2
: Detach the IC camera cable from the connections on the base plate.
: Push the cables into the machine frame to protect them against damage.

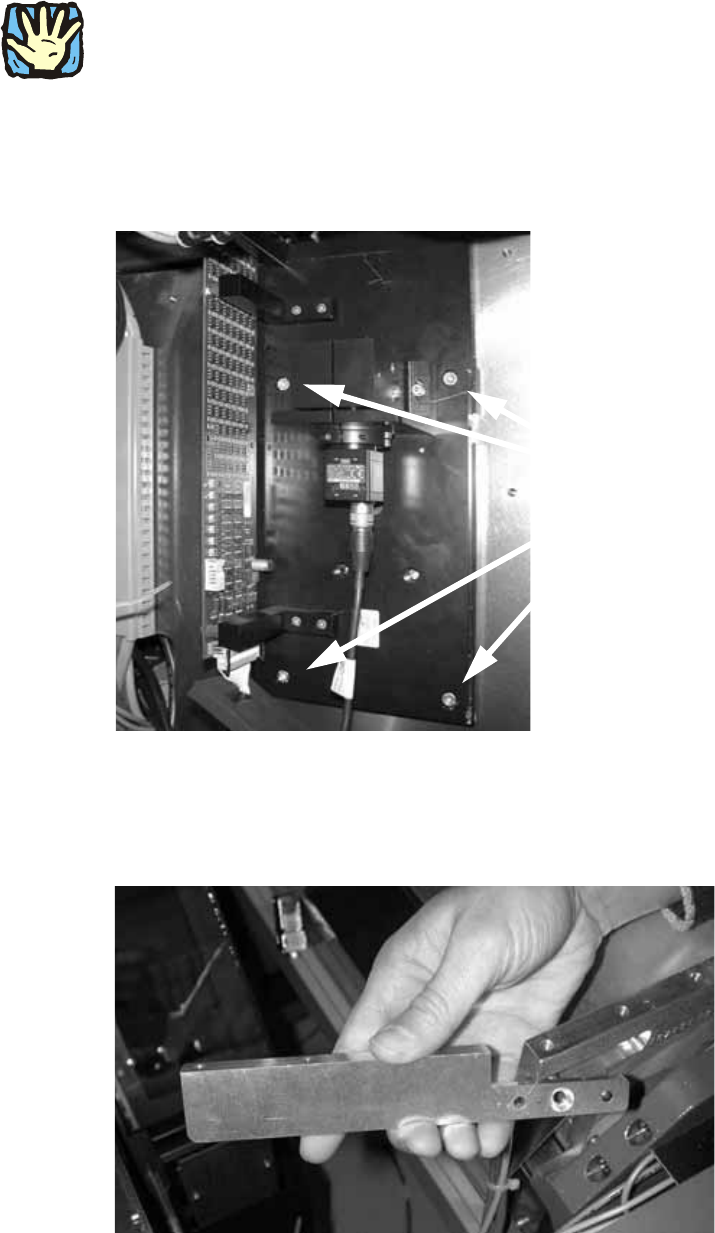

: Loosen the four screws (M6) on the IC camera base plate and remove.
2
: The FC camera can be dismantled in the same way, if necessary.
: Carefully fit the nozzle changer extension.
Be careful, the extension is very fragile.
2
4 screws
SIPLACE HF Series Head Reconfiguration Kits 2 Retrofit instructions - SIPLACE HF series head reconfiguration kits
05/2006 Edition
91
: Fit the nozzle changer extension on the inside of the placement machine.
2
2

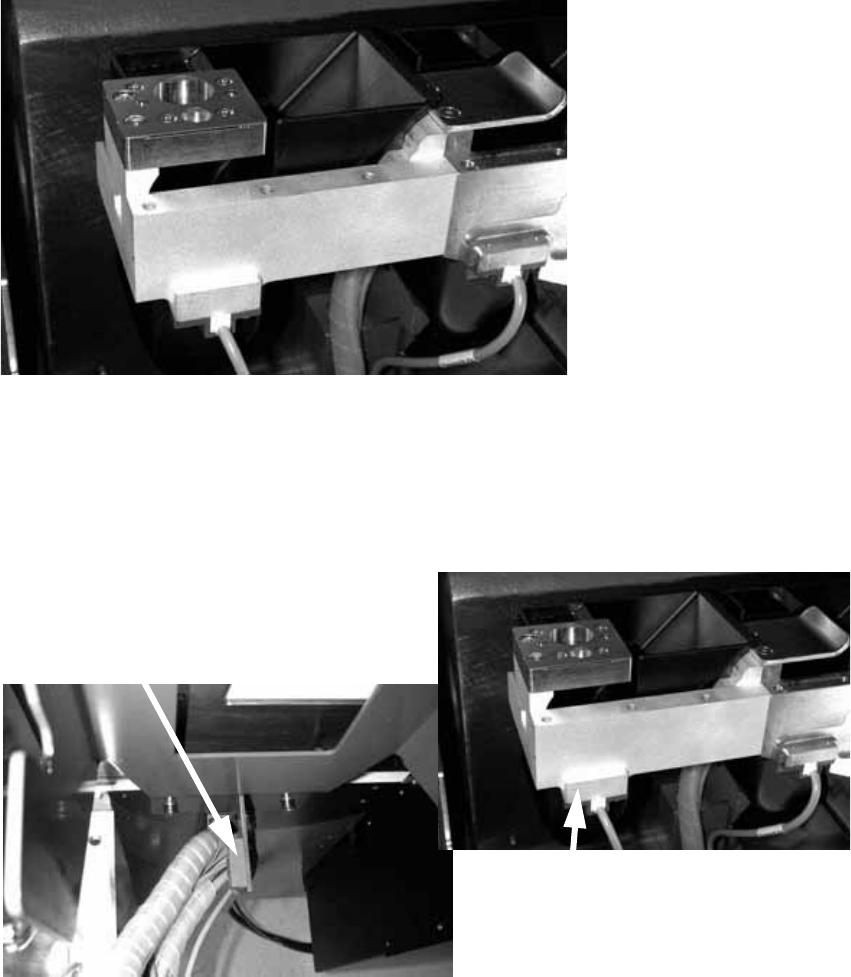

: Remove the sensor for the TwinHead reject bin and wire it to the new reject bin for the C&P
head.
: Attach the sensor to the mount for the new reject bin.
2
2
: Insert the reject bin(s) for the C&P head.
2
2
2
Refit the sensor
Remove the sensor
2 Retrofit instructions - SIPLACE HF series head reconfiguration kits SIPLACE HF Series Head Reconfiguration Kits
05/2006 Edition
92

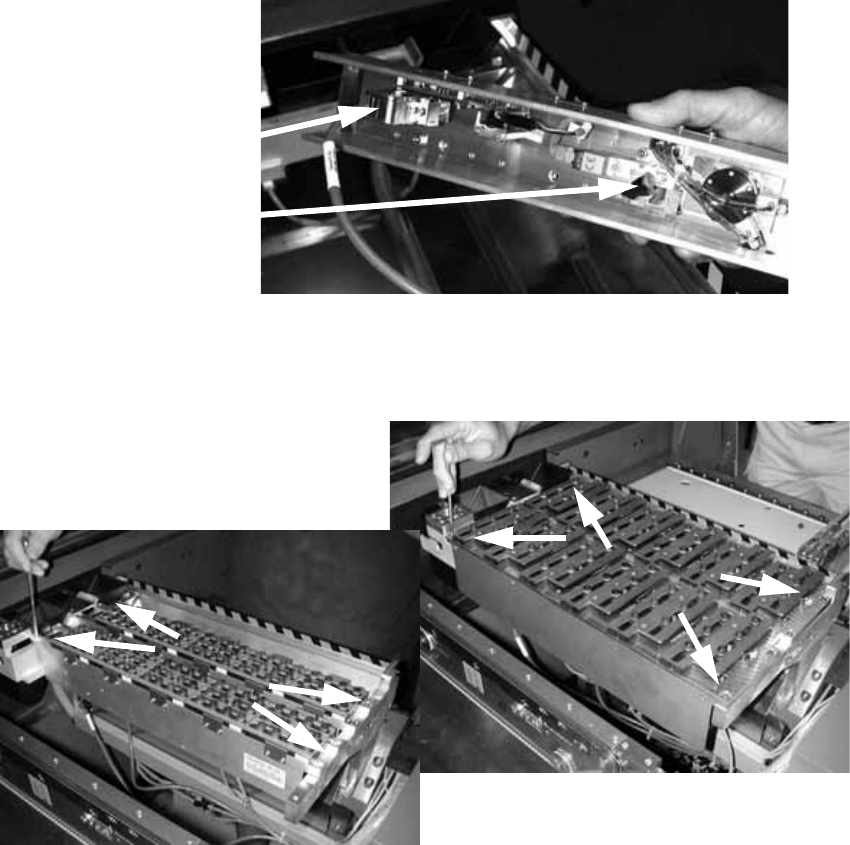

: Plug the cables and the compressed air hose into the C&P head nozzle changer.
2
2
: Insert the new C&P head nozzle changers and fix each in place with four screws.
2
2
With the C&P 12 placement head, an optional third nozzle changer may be fitted on the opposite
feeder area. It is installed and connected up in the same way. 2
2
2
2
2
2
Cable
Compressed air connector
C&P 12 nozzle changer
C&P 6 nozzle changer
