KMC-1709 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KMC-1709
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 $NK-2N NYLON CLIP 1 39
2 $PF PLUG 1 40
3 $TL6-01 JOINT 1 41
4 $TS6-01M JOINT 1 42
5 $US6 JOINT 1 43
6 90166-02J210 SCREW, PAN HEAD 4 44
7 90990-41J191 COLLAR 4 45
8 91312-03005 BOLT HEX,SOCKET HEAD 2 46
9 91312-03020 BOLT HEX,SOCKET HEAD 3 47
10 91312-04006 BOLT HEX,SOCKET HEAD 4 48
11 91312-04008 BOLT HEX,SOCKET HEAD 4 49
12 97602-04308
SCREW PAN HEAD W/WASHER
1 50
13 98902-03008 SCREW BINDING HEAD 1 51
14 KLW-M99B6-00 PLUG 1 /
Í
52
15 KLW-M99B5-00 INLINE FILTER 1 /
Í
53
16 KLW-M653X-01 SENSOR,BLOW ST. ASSY 2 B
Í
54
17 KLW-M99V1-A0 BLOW VALVE ASSY. 1 /
Í
55
18 KHY-M99D2-00 DIFFUSE PLATE 1 /
56
19 KMC-M99B4-00 BLOCK,BLOW ST. 1 / / 57
20 KLW-M99B1-01 BASE,BLOW ST. 1 / / 58
21 KLW-M99B2-00 PLATE,BASE 1
/ / 59
22 KMC-M99B3-A0 EXHAUST BOX ASSY. 1 / / 60
23 KLW-M99D1-00 PLATE,DUMP 1 / / 61
24 KLW-M99D2-00 STAY,SENSOR 1 / / 62
25 KLW-M99D3-00 DUMP BOX 1 /
63
26 KLW-M653W-00 SENSOR,DUMP BOX ASSY 1 B
Í
64
27 90990-32J008 BOLT, FLAGE 2 65
28 92902-03200 WASHER,PLAIN 2 66
29 KLW-M99D0-000 DUMP BOX ASSY. 1 /
67
30 KMC-M99BA-000 TUBE 5 /
Í
68
31 KMC-M99B9-000 COLLAR 5 /
Í
69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
8
1

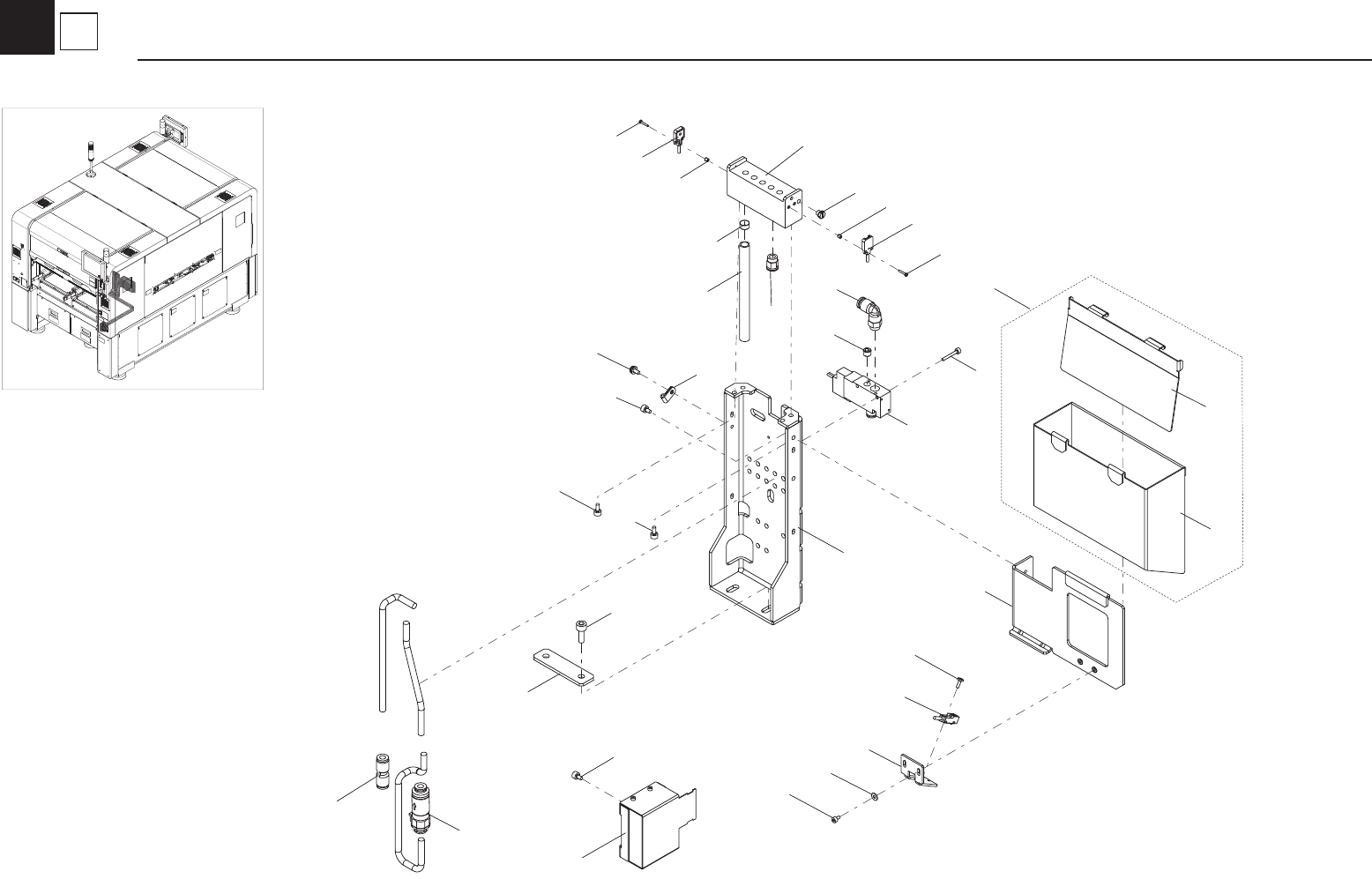

Blow Station / Dump Box
Blow Station
