A- 54 A 17 搬送部ユニット - 幅調整 2 C onvey or u nit - 2 8 7 9 8 7 9 5 4 9 10 10 9 9 10 10 10 10 9 10 10 1 1 4 2 2 6 6 5 5 2 4 5 2 3 2 6 4 2 6
A-53
A16
搬送部ユニット
-
幅調整
1
Conveyor unit - 1
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
60 2-915-937-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾀﾝ
ﾎﾞﾙﾄ
(M4 SUS)
BOLT (M4 SUS), SOCKET BUTTON
20
61 7-624-198-21
C
ｶﾞﾀ
ﾄﾒﾜ
10 (
ｼﾞｸ
ﾖｳ
)
STOP RING 10, TYPE C
6
62 4-701-529-01
ﾀｲﾏｳﾝﾄ
(MB1)
TIE MOUNT (MB1)
35
63 7-682-249-09
+K 3X10
SCREW +K 3X10
26
64 7-682-246-09
+K 3X5
SCREW +K 3X5
9
65 7-683-435-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X10
BOLT,HEXAGON SOCKET 5X10
55
66 4-454-517-01
ﾍｲｺｳ
ﾋﾟﾝ
(B4X16 SUS)
PIN (B4X16 SUS), PARALLEL
6
67 1-492-210-11
ﾋﾞ
-
ﾑ
ｾﾝｻ
(EX-19B-C5)
SENSOR, BEAM (EX-19B-C5)
6
68 7-621-255-75
+P 2X12
SCREW +P 2X12
12
69 4-454-549-01
ﾍｲｺｳ
ﾋﾟﾝ
(B3X8)PIN (B3X8),
PARALLEL
2

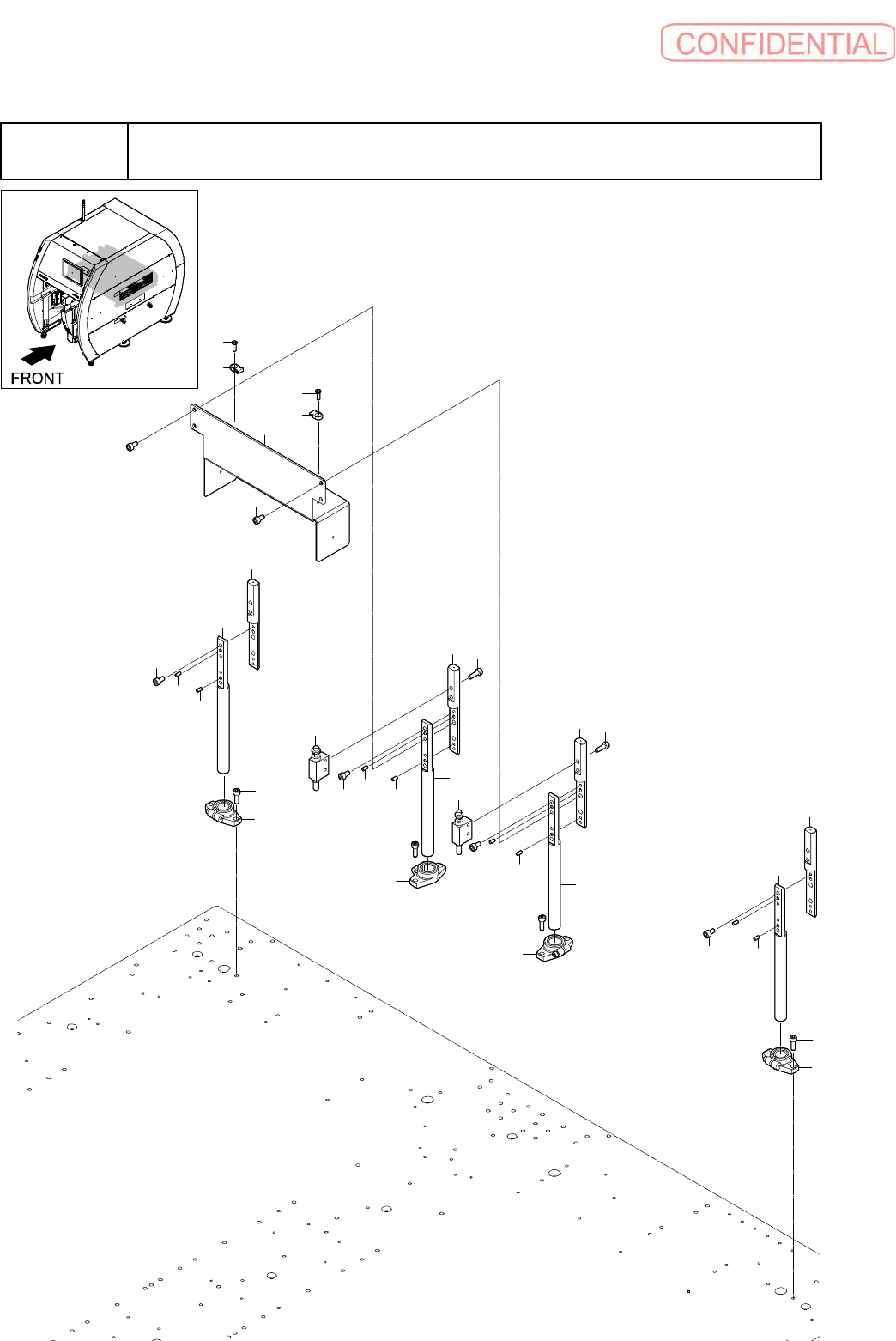

A-54
A17
搬送部ユニット
-
幅調整
2
Conveyor unit - 2
8
7
9
8
7
9
5
4
9
10
10
9
9
10
10
10
10
9
10
10
1
1
4
2
2
6
6
5
5
2
4
5
2
3
2
6
4
2
6
A-55
A17
搬送部ユニット
-
幅調整
2
Conveyor unit - 2
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-798-474-11
ﾀﾂﾁ
ｽｲﾂﾁ
(P12DB-DS)
SWITCH (P12DB-DS)
2
2 7-683-421-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X12
BOLT,HEXAGON SOCKET 4X12
12
3 4-454-930-02
ﾀﾂﾁ
ｽｲﾂﾁ
ﾎｷﾖｳ
ｲﾀ
PLATE, SWITCH REINFORCEMENT
1
4 4-454-929-02
ﾀﾂﾁ
ｽｲﾂﾁ
ｼﾁﾕｳ
PLATE, SWITCH REINFORCEMENT
4
5 4-472-519-01
ﾀﾂﾁ
ｽｲﾂﾁ
ｼﾁﾕｳ
(UP)
SUPPORT (UP), TOUCH SWITCH
4
6 4-455-669-01
ｼﾔﾌﾄ
ﾌﾞﾛﾂｸ
(SFA12)
BLOCK (SFA12), SHAFT
4
7 4-701-529-01
ﾀｲﾏｳﾝﾄ
(MB1)
TIE MOUNT (MB1)
2
8 7-682-249-09
+K 3X10
SCREW +K 3X10
2
9 7-683-419-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X8
BOLT,HEXAGON SOCKET 4X8
12
10 3-703-360-01
ﾍｲｺｳﾋﾟﾝ
(
ﾌｱｲ
3X6)
PIN, PARALLEL (DIA. 3X6)
8
